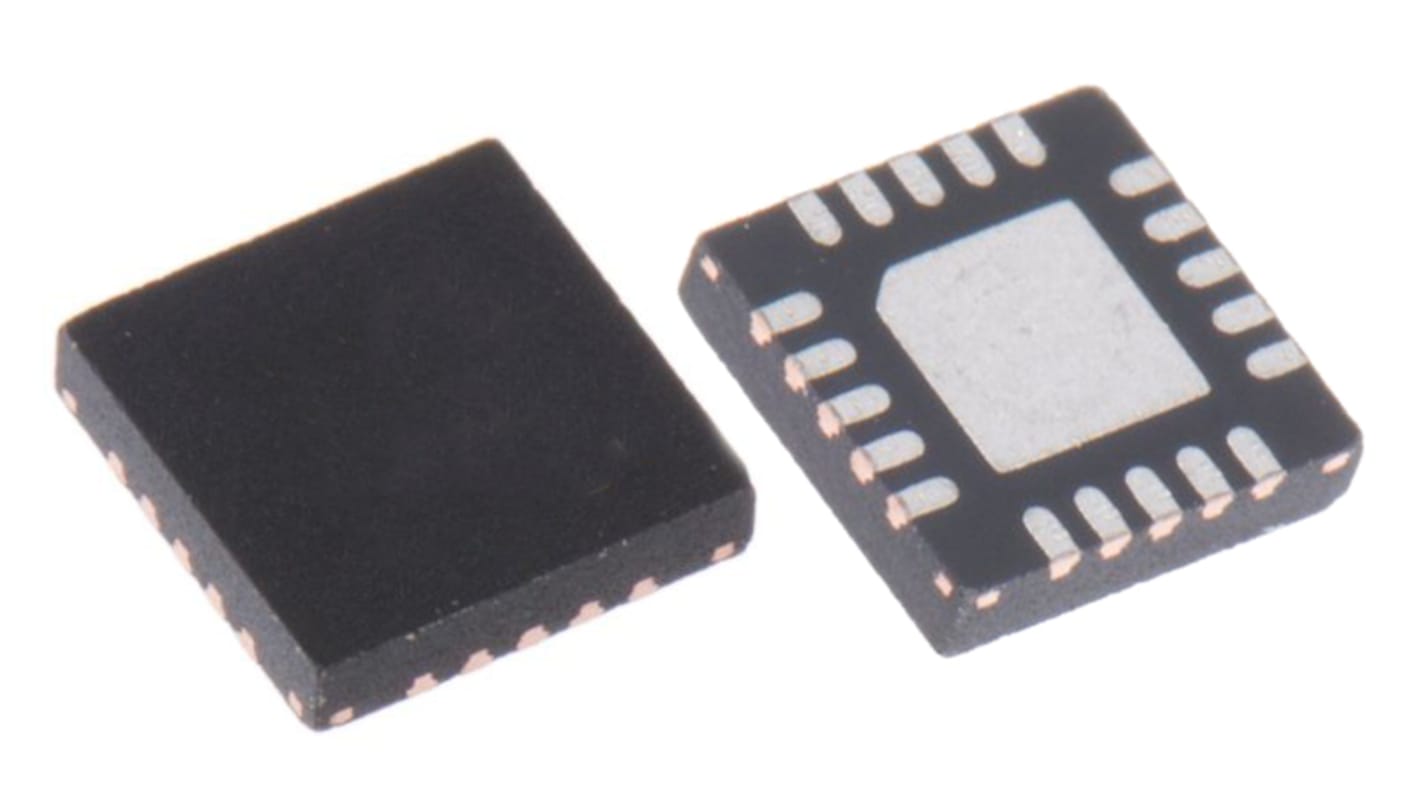

Renesas Electronics ISL4223EIRZ Line Transceiver
- RS庫存編號:
- 256-1620
- 製造零件編號:
- ISL4223EIRZ
- 製造商:
- Renesas Electronics
N
查看所有Line Interface ICs
本地庫存暫不足，貨期請向RS查詢
單價 毎管：60 個
原價 HK$52.805
您付款
HK$51.919
| 單位 | Per unit | Per Tube* |
| 60 - 60 | HK$51.919 | HK$3,115.14 |
| 120 - 240 | HK$44.973 | HK$2,698.38 |
| 300 + | HK$42.99 | HK$2,579.40 |
| * 參考價格 | ||
- RS庫存編號:
- 256-1620
- 製造零件編號:
- ISL4223EIRZ
- 製造商:
- Renesas Electronics
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
The Renesas RS-232 Transmitters/Receiver is 2.7V to 5.5V powered that meet ElA/TIA-232 and V.28/V.24 specifications even at VCC 3.0V. They provide ±15kV ESD protection (IEC61000-4-2 air gap and human body model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are PDAs, Palmtops, and hand-held products where the low operational power consumption and even lower standby power consumption are critical. Efficient on-chip charge pumps coupled with manual and automatic power down functions, reduce the standby supply current to a 150nA trickle.
RS-232 compatible with VCC 2.7V
On-chip voltage converters require only four external 0.1μF capacitors
Receiver hysteresis for improved noise immunity
Assured minimum data rate of 250kbps
Wide power supply range of single +2.7V to +5.5V
Pb-free (RoHS compliant)
On-chip voltage converters require only four external 0.1μF capacitors
Receiver hysteresis for improved noise immunity
Assured minimum data rate of 250kbps
Wide power supply range of single +2.7V to +5.5V
Pb-free (RoHS compliant)
規格
| Attribute | Value |
| Logic Function | Transceiver |
