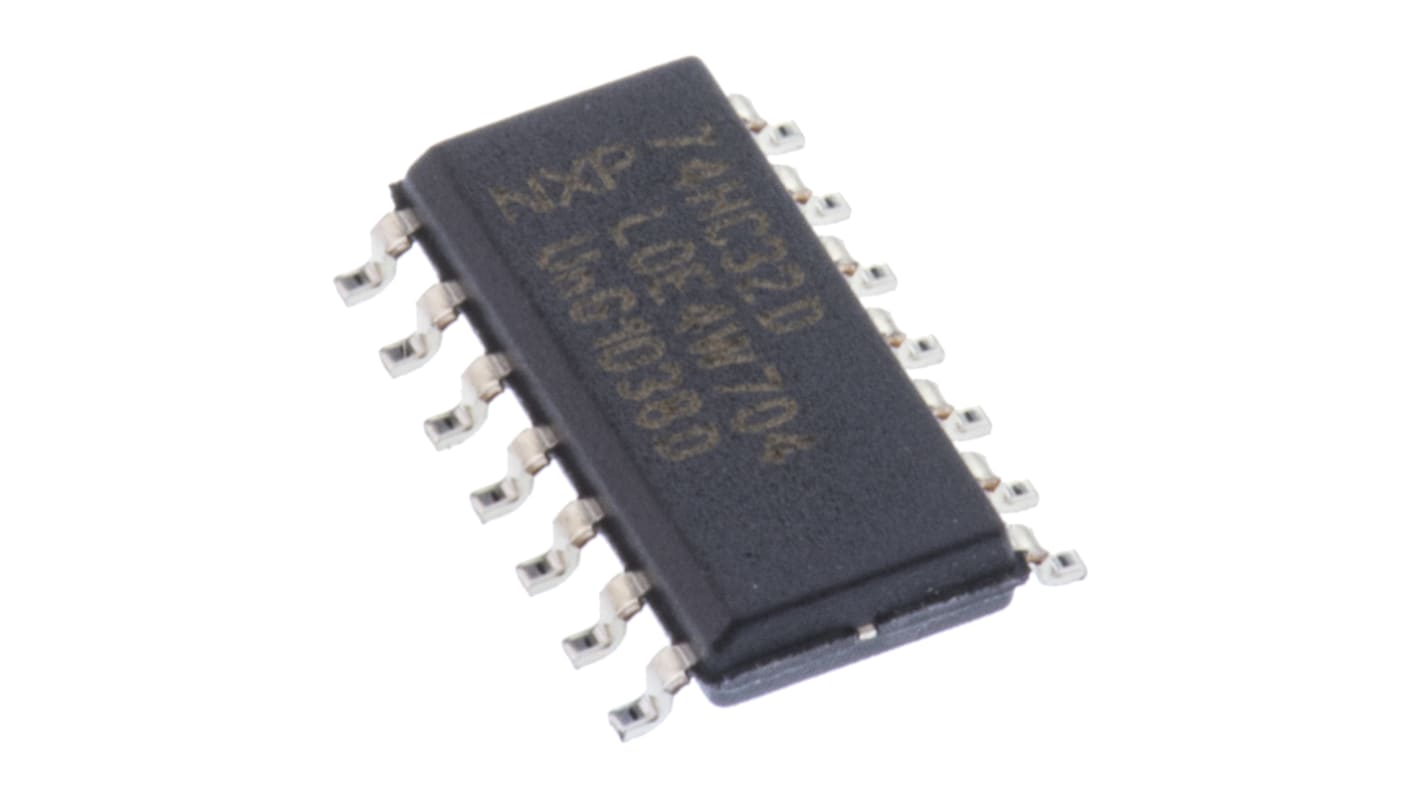

Nexperia 74HC32D,652, Quad 2-Input OR Logic Gate, 14-Pin SOIC
- RS庫存編號:
- 124-2258
- 製造零件編號:
- 74HC32D,652
- 製造商:
- Nexperia
此產品暫時不接受預訂。
抱歉，此產品暫無現貨，目前也不接受預訂。
已增加
單價 毎管：57 个
HK$2.641
| 單位 | Per unit | Per Tube* |
| 57 - 57 | HK$2.641 | HK$150.537 |
| 114 - 228 | HK$2.575 | HK$146.775 |
| 285 - 513 | HK$2.511 | HK$143.127 |
| 570 - 1083 | HK$2.448 | HK$139.536 |
| 1140 + | HK$2.386 | HK$136.002 |
| * 參考價格 | ||
- RS庫存編號:
- 124-2258
- 製造零件編號:
- 74HC32D,652
- 製造商:
- Nexperia
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊
74HC Family Logic Gates, Nexperia
A range of NXP standard Logic Gates from the 74HC Family of CMOS Logic ICs. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.
High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
74HC Family
規格
Attribute | Value |
|---|---|
| Logic Function | OR |
| Mounting Type | Surface Mount |
| Number of Elements | 4 |
| Number of Inputs per Gate | 2 |
| Package Type | SOIC |
| Pin Count | 14 |
| Logic Family | HC |
| Maximum Operating Supply Voltage | 6 V |
| Maximum High Level Output Current | -5.2mA |
| Maximum Propagation Delay Time @ Maximum CL | 15 ns @ 6 V, 18 ns @ 4.5 V, 90 ns @ 2 V |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Low Level Output Current | 5.2mA |
| Length | 8.75mm |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Temperature | +125 °C |
| Height | 1.45mm |
| Dimensions | 8.75 x 4 x 1.45mm |
| Width | 4mm |
| Minimum Operating Temperature | -40 °C |
