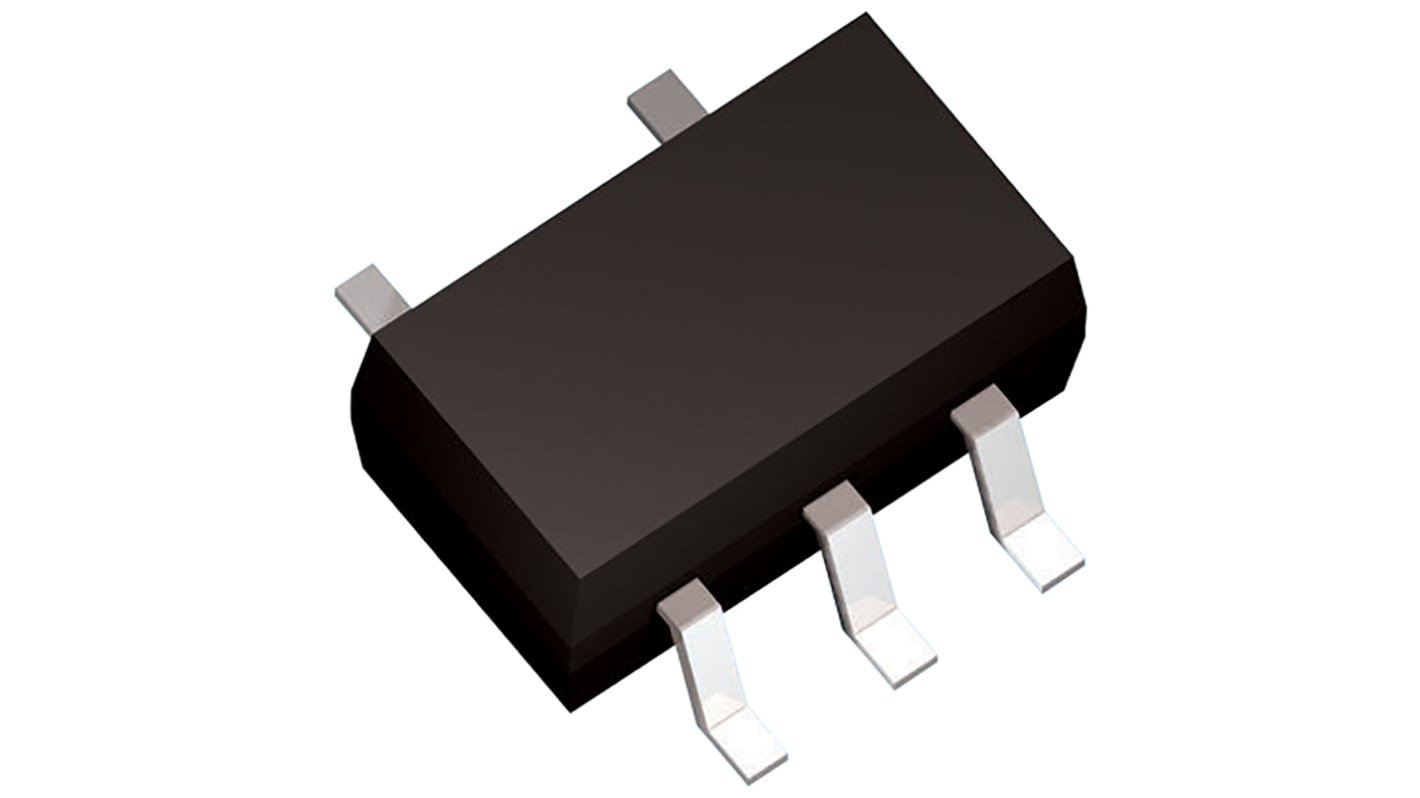

- RS庫存編號:
- 144-5258
- 製造零件編號:
- TC7S08F,LF(T
- 製造商:
- Toshiba
- RS庫存編號:
- 144-5258
- 製造零件編號:
- TC7S08F,LF(T
- 製造商:
- Toshiba
法例與合規
- COO (Country of Origin):
- JP
產品詳細資訊
L-MOS High-Speed Series, Toshiba
The Toshiba L-MOS high-speed series achieves operational speeds similar to LSTTL devices whilst maintaining the advantages of low-power CMOS devices.
High speed operation: Typical tpd of 7ns at 5V
Low power dissipation
High noise immunity
Output drive capability: 5 LSTTL loads
Symmetrical output drive capacity
Wide operating voltage range: 2 to 6V
Low power dissipation
High noise immunity
Output drive capability: 5 LSTTL loads
Symmetrical output drive capacity
Wide operating voltage range: 2 to 6V
L-MOS Family Logic ICs
One-Gate Logic (L-MOS)
規格
Attribute | Value |
---|---|
Logic Function | AND |
Mounting Type | Surface Mount |
Number of Elements | 1 |
Number of Inputs per Gate | 2 |
Package Type | SSOP |
Pin Count | 5 |
Logic Family | CMOS |
Input Type | CMOS |
Maximum Operating Supply Voltage | 6 V dc |
Maximum Propagation Delay Time @ Maximum CL | 125 ns @ 50 pF |
Minimum Operating Supply Voltage | 2 V dc |
Minimum Operating Temperature | -40 °C |
Dimensions | 2 x 1.25 x 0.9mm |
Width | 1.25mm |
Height | 0.9mm |
Maximum Operating Temperature | +85 °C |
Propagation Delay Test Condition | 50pF |
Output Type | Digital |
Length | 2mm |
