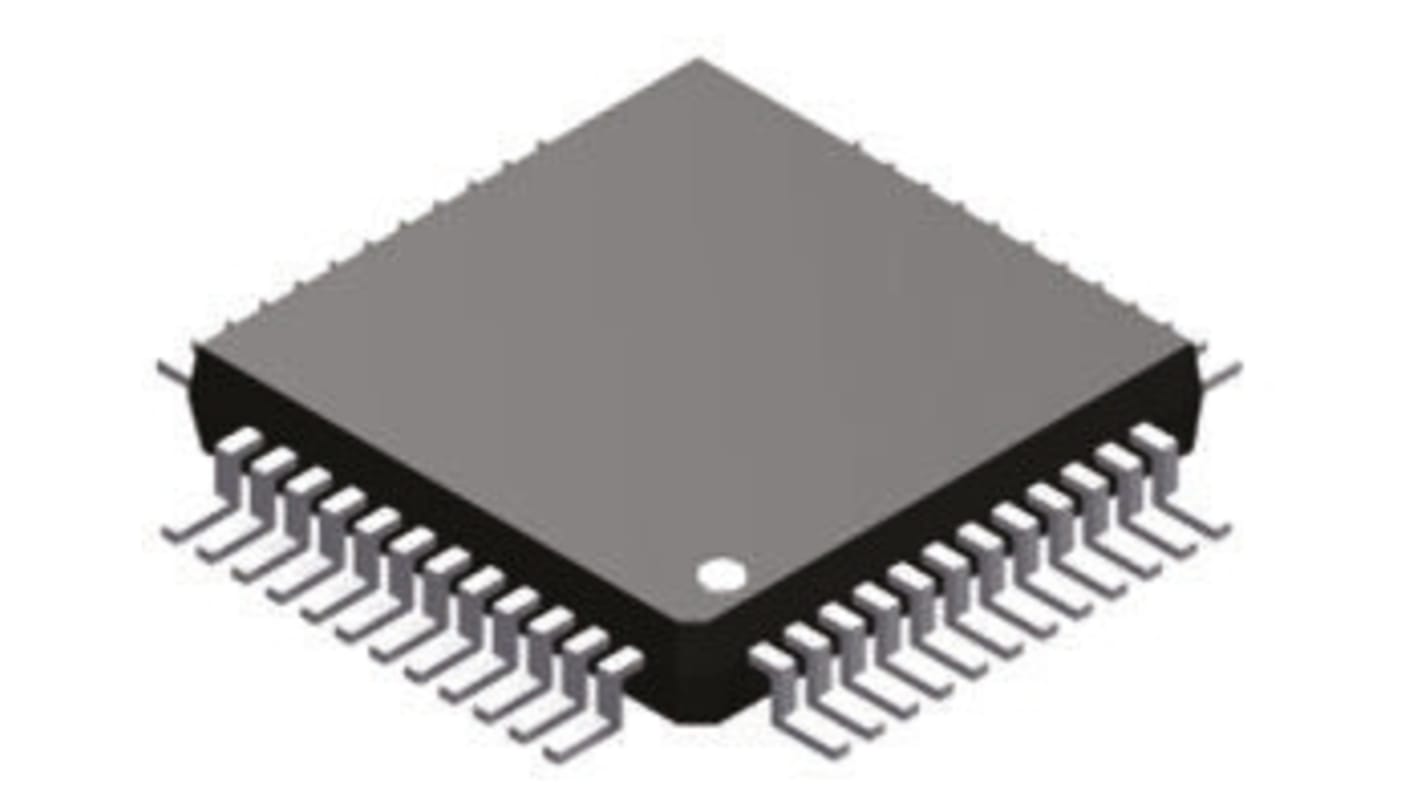

NXP LPC11U24FBD48/401, 32bit Cortex-M0 Microcontroller, LPC11U, 50MHz, 24 kB Flash, 48-Pin LQFP
- RS庫存編號:
- 169-0725
- 製造零件編號:
- LPC11U24FBD48/401
- 製造商:
- NXP
當前暫無庫存，可於2024/10/23發貨，3 工作日送達。
已增加
單價 个（每套 250）
HK$42.837
| 單位 | Per unit | Per Tray* |
| 250 - 250 | HK$42.837 | HK$10,709.25 |
| 500 - 750 | HK$41.766 | HK$10,441.50 |
| 1000 + | HK$41.123 | HK$10,280.75 |
| * 參考價格 | ||
- RS庫存編號:
- 169-0725
- 製造零件編號:
- LPC11U24FBD48/401
- 製造商:
- NXP
法例與合規
- COO (Country of Origin):
- TW
產品詳細資訊
ARM Cortex-M0 Microcontrollers, NXP
The NXP family of ARM Cortex-M0 based, low-cost 32-bit MCUs are designed for 8/16-bit microcontroller applications. They offer high performance, low power, simple instruction set and memory addressing together with reduced code size compared to existing 8/16-bit architectures.
32-bit performance in a 16-bit footprint resulting in more power efficiency and longer battery life
Small size enables the processor and analogue circuits to be implemented on single die
Ultra-low power consumption and integrated sleep modes resulting in longer battery life
Thumb® instruction set for maximum code density
Small size enables the processor and analogue circuits to be implemented on single die
Ultra-low power consumption and integrated sleep modes resulting in longer battery life
Thumb® instruction set for maximum code density
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
ARM Cortex Microcontrollers, NXP
規格
Attribute | Value |
|---|---|
| Family Name | LPC11U |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 48 |
| Device Core | Cortex-M0 |
| Data Bus Width | 32bit |
| Program Memory Size | 24 kB |
| Maximum Frequency | 50MHz |
| RAM Size | 8 kB |
| USB Channels | 1 |
| Number of SPI Channels | 2 |
| Number of USART Channels | 5 |
| Typical Operating Supply Voltage | 1.8 → 3.6 V |
| Number of I2C Channels | 1 |
| Number of UART Channels | 0 |
| Number of CAN Channels | 0 |
| Maximum Operating Temperature | +85 °C |
| Instruction Set Architecture | ARM |
| Minimum Operating Temperature | -40 °C |
| Number of ADC Units | 8 |
| Maximum Number of Ethernet Channels | 0 |
| Number of Ethernet Channels | 0 |
| Number of LIN Channels | 0 |
| ADCs | 8 x 10 bit |
| Program Memory Type | Flash |
| Dimensions | 7 x 7 x 1.4mm |
| Number of PCI Channels | 0 |
| Height | 1.4mm |
| Length | 7mm |
| Width | 7mm |
