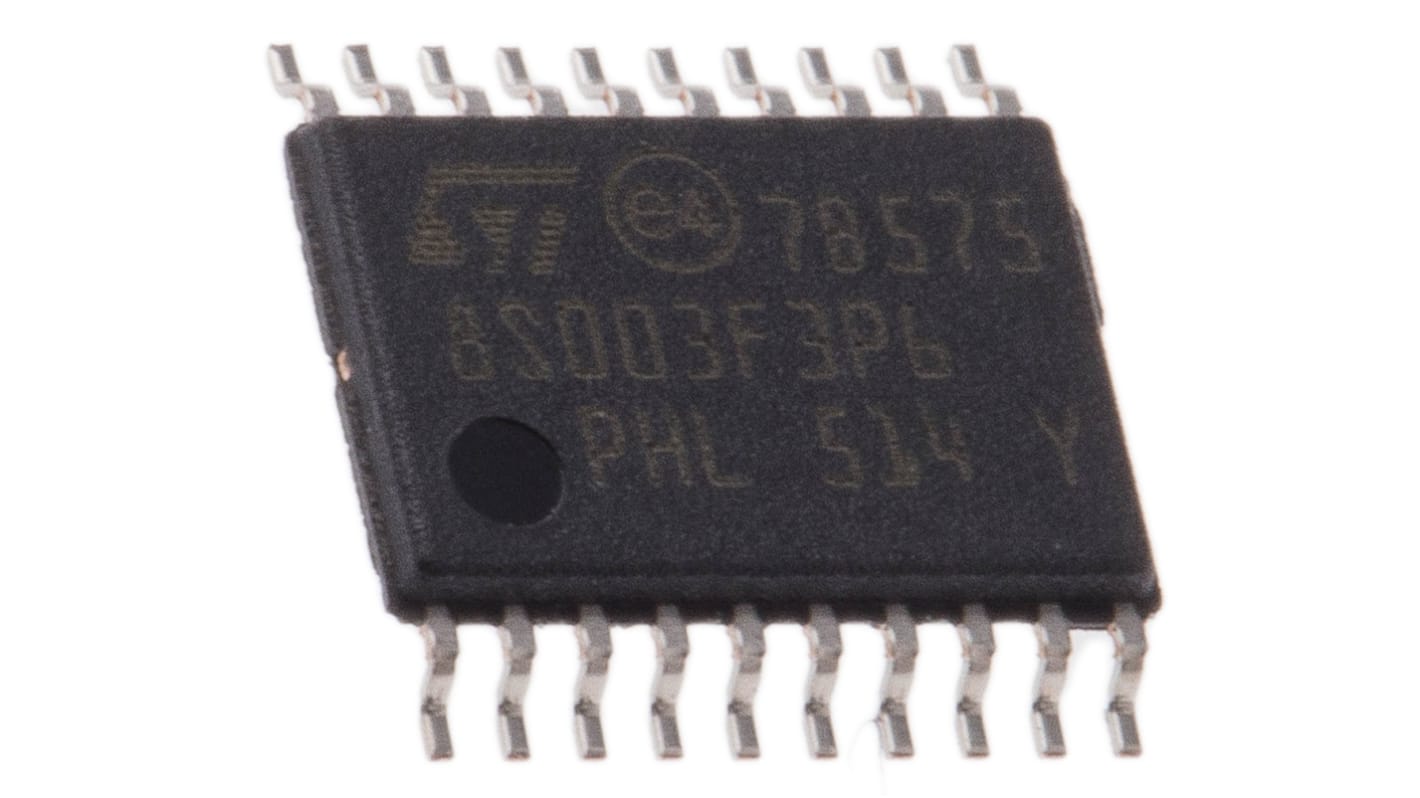

STMicroelectronics STM8S003F3P6, 8bit STM8 Microcontroller, STM8S, 16MHz, 8 kB Flash, 20-Pin TSSOP
- RS庫存編號:
- 793-1392
- 製造零件編號:
- STM8S003F3P6
- 製造商:
- STMicroelectronics
當前暫無庫存，可於2024/5/27發貨，3 工作日送達。
已增加
單價 个（每托盘 10 ）
HK$5.569
| 單位 | Per unit | Per Pack* |
| 10 - 10 | HK$5.569 | HK$55.69 |
| 20 - 30 | HK$5.458 | HK$54.58 |
| 40 + | HK$5.349 | HK$53.49 |
| * 參考價格 | ||
- RS庫存編號:
- 793-1392
- 製造零件編號:
- STM8S003F3P6
- 製造商:
- STMicroelectronics
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
STM8S Series Mainstream 8-Bit Microcontrollers, STMicroelectronics
The STM8S series of general-purpose 8-bit Flash microcontrollers is an advanced core version of the STM8 featuring a 3-stage pipeline. The STM8S delivers up to 20MIPS at a clock rate of 24MHz.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
STM8 8-Bit Microcontrollers, STMicroelectronics
The STM8 platform is implemented around a high-performance 8-bit core and a state-of-the-art set of peripherals. The 8-bit microcontroller operates at 16/24MHz, featuring flash memory up to 128kB, internal RAM and EEPROM, 8/16-bit timers, A/D Converters, D/A Converters, Comparators, Serial Interfaces and an optional Display controller.
規格
Attribute | Value |
|---|---|
| Family Name | STM8S |
| Package Type | TSSOP |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Device Core | STM8 |
| Data Bus Width | 8bit |
| Program Memory Size | 8 kB |
| Maximum Frequency | 16MHz |
| RAM Size | 1 kB |
| USB Channels | 0 |
| Number of PWM Units | 1 x 16 bit |
| Number of SPI Channels | 1 |
| Number of USART Channels | 0 |
| Number of CAN Channels | 0 |
| Number of I2C Channels | 1 |
| Typical Operating Supply Voltage | 6.5 V |
| Number of UART Channels | 1 |
| Number of PCI Channels | 0 |
| Number of Ethernet Channels | 0 |
| Number of LIN Channels | 1 |
| Width | 4.5mm |
| Dimensions | 6.6 x 4.5 x 1.05mm |
| Maximum Number of Ethernet Channels | 0 |
| Pulse Width Modulation | 1 (16 bit) |
| Program Memory Type | Flash |
| Height | 1.05mm |
| Minimum Operating Temperature | -40 °C |
| ADCs | 1 (5 x 10 bit) |
| Length | 6.6mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Instruction Set Architecture | Harvard |
