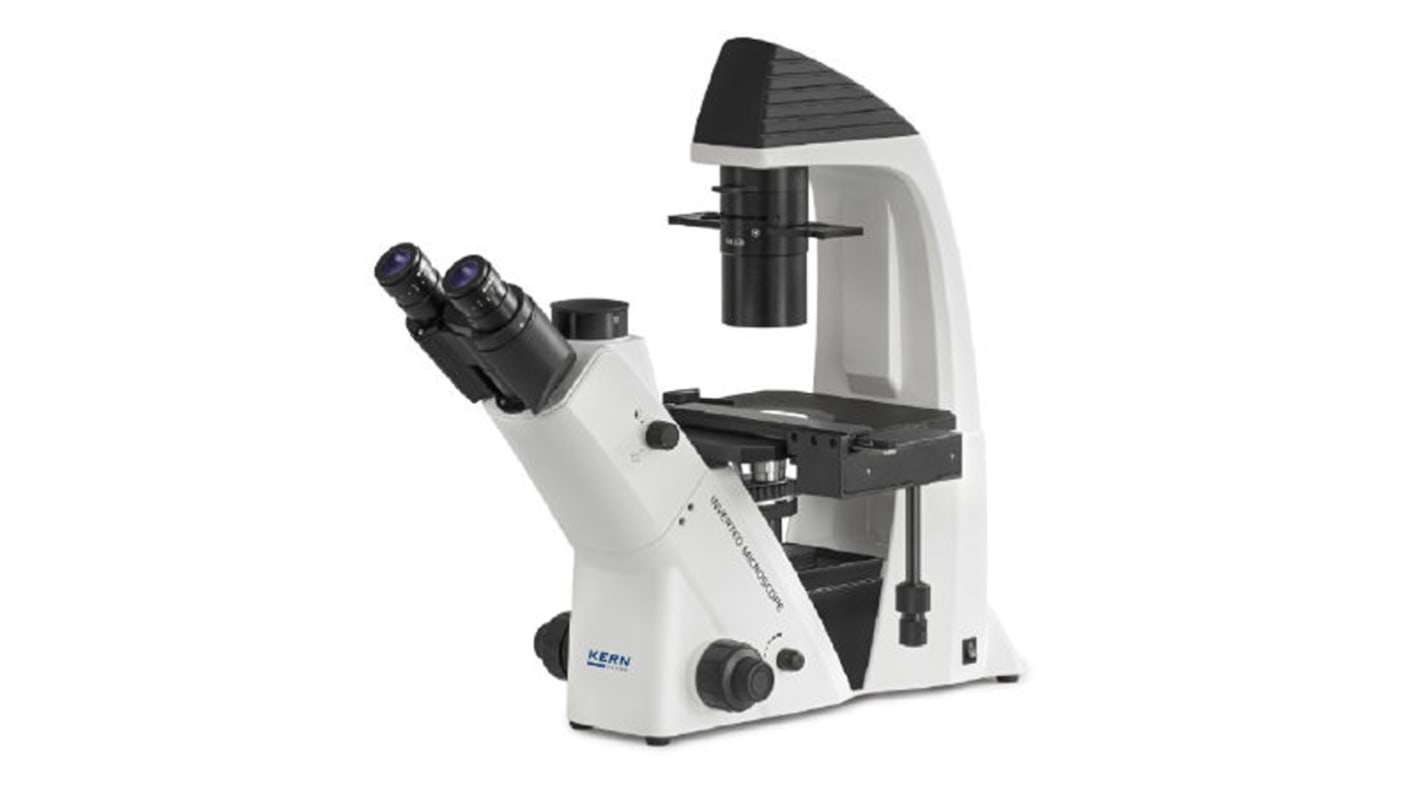

Kern OCM-1 Series Inverse Microscope
Kern OCM-1 Series Inverse microscope with fluorescence. Featuring a large working distance, it is ideal for the monitoring and analysis of cell cultures. The 30 W halogen lighting unit ensures the optimum illumination in the bright field of your samples. A special Abbe N.A. 0.3 condenser with aperture diaphragm and large working distance of 72 mm guarantees the best working routine.
Typical Applications
Research and breeding of cell cultures and tissue cultures
Applications/Samples
Particularly for viewing samples in culture vessels (flasks, petri dishes, microtitre plates), translucent, thin, low-contrast, challenging samples (e.g. living mammal cells, tissue, microorganisms if necessary)
Features and Benefits
Functional
Ergonomic design
Stable
Trinocular eyepiece
Abbe Condenser
Supplied with
A dust cover and user instructions are included.
規格
Attribute | Value |
---|---|
Magnification Power | 10 X, 20 X, 40X |
Illuminated | Yes |
Illumination Type | Halogen |
Weight | 21kg |
Dimensions | 304 x 530 x 782mm |
Length | 304mm |
Plug Type | Type C - European Plug, Type G - British 3-pin |
Model Number p | OCM-1 |
