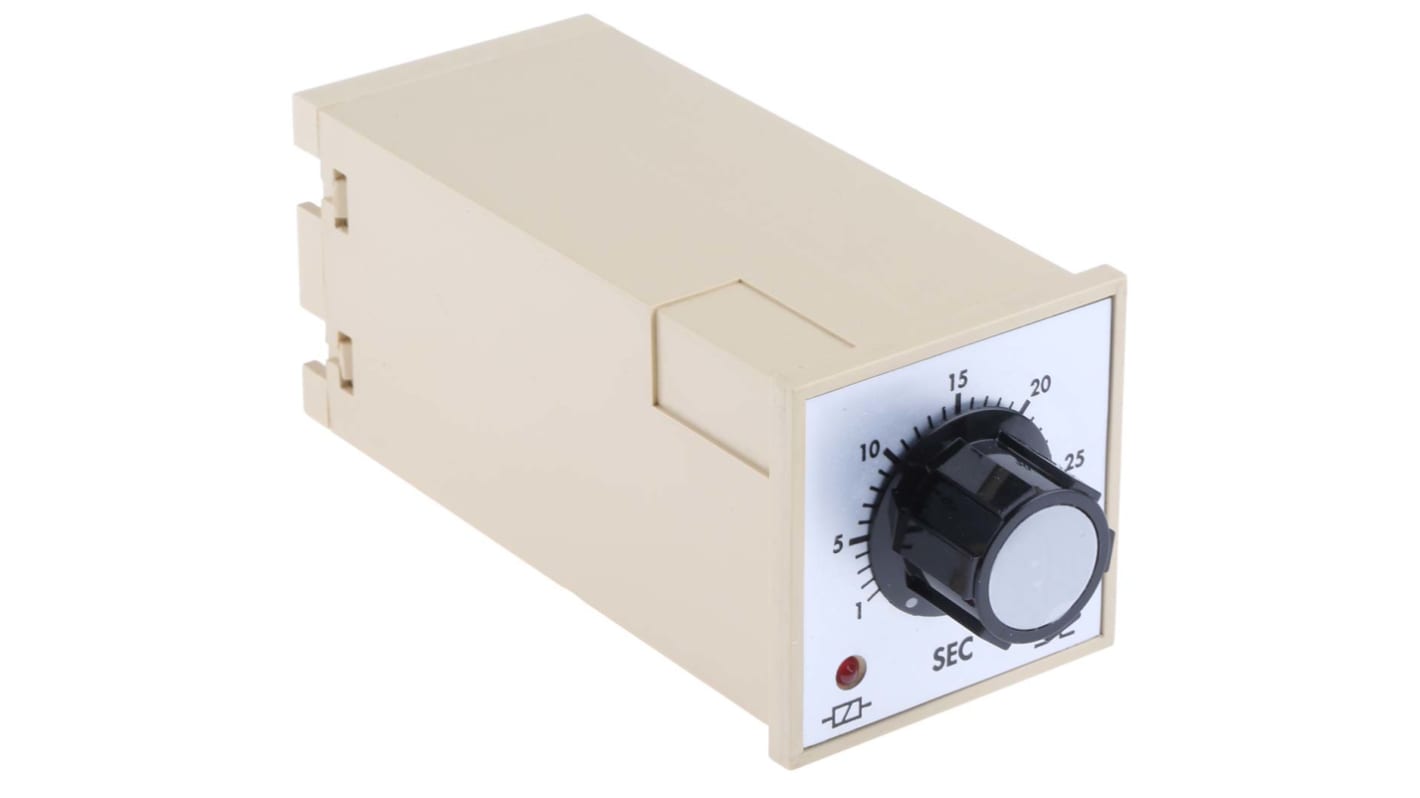

Tempatron Shaft Rotation Sensor Monitoring Relay, SPDT, Maximum of 30V dc, DIN Rail
- RS庫存編號:
- 347-696
- 製造零件編號:
- FSRST30SLP-110/230VAC
- 製造商:
- Tempatron
- RS庫存編號:
- 347-696
- 製造零件編號:
- FSRST30SLP-110/230VAC
- 製造商:
- Tempatron
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊
Shaft Rotation SSR
Senses pulses from a proximity detector mounted near a machine shaft rotating at up to 10000rpm
LED indication of relay status and supply
DIN standard case, which may be front panel or chassis mounted (11-pin socket 403-869)
Additional fail safe with time delay adjustment between 1-30 seconds
45mm x 45mm panel cut-out
SPCO output
LED indication of relay status and supply
DIN standard case, which may be front panel or chassis mounted (11-pin socket 403-869)
Additional fail safe with time delay adjustment between 1-30 seconds
45mm x 45mm panel cut-out
SPCO output
Rotation Sensing
All units have standard panel cut out of 45 x 45mm and SPCO output
規格
Attribute | Value |
|---|---|
| Monitoring Application | Shaft Rotation Sensor |
| Voltage Sensing Range | Maximum of 30V dc |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Time Delay | 1 → 30s |
| Frequency Sensing Range | 50 → 60Hz |
| Series | FSRST |
| Dimensions | 118 x 48 x 48mm |
| Current Range | Maximum of 5A |
| Operating Temperature Range | +50°C |
| Minimum Operating Temperature | -10°C |
| Width | 48mm |
| Maximum Operating Temperature | +50°C |
| Length | 118mm |
| Height | 48mm |
| Number of Poles | 1 |
