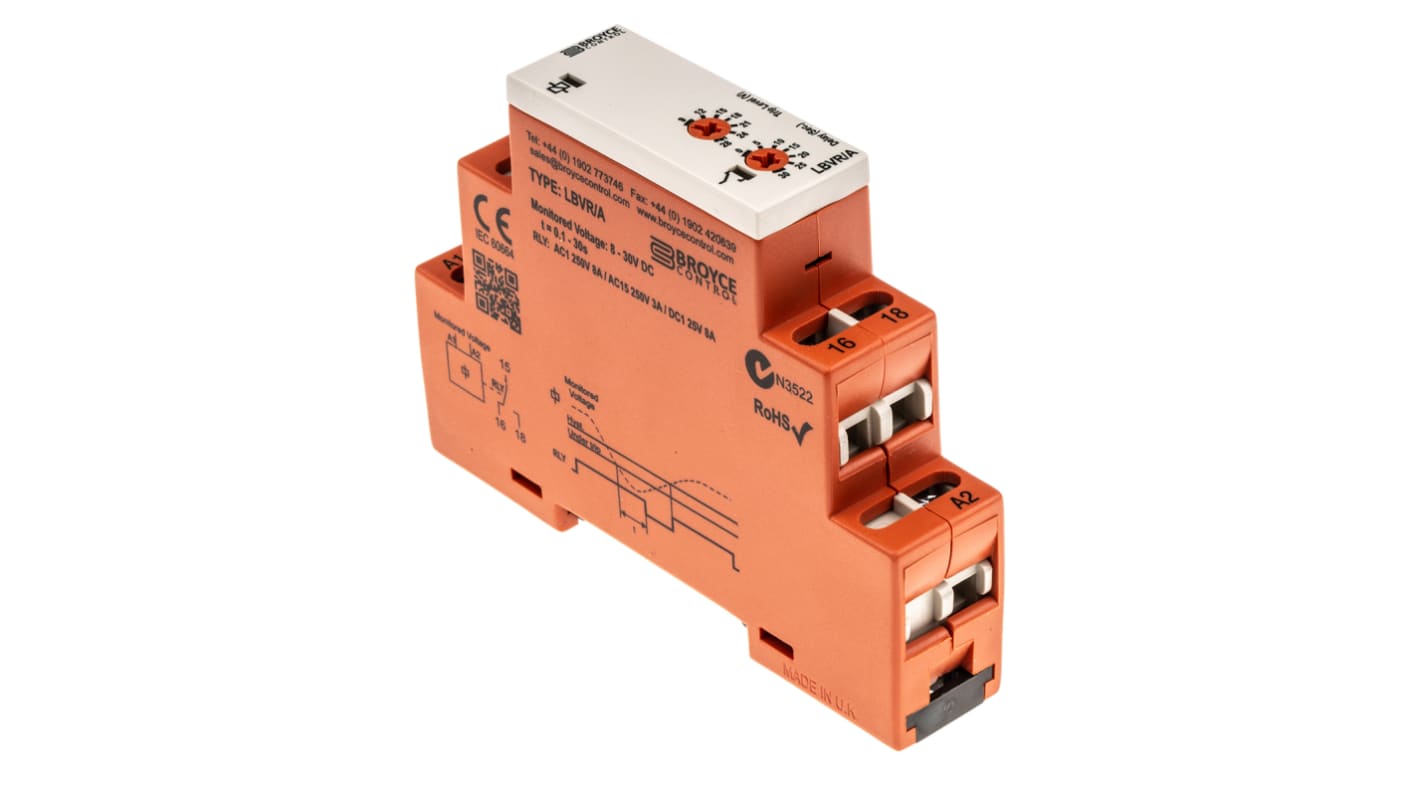

Broyce Control Voltage Monitoring Relay, SPDT, 12 → 24V dc, DIN Rail
- RS庫存編號:
- 850-5411
- 製造零件編號:
- LBVR/A 12-24VDC
- 製造商:
- Broyce Control
- RS庫存編號:
- 850-5411
- 製造零件編號:
- LBVR/A 12-24VDC
- 製造商:
- Broyce Control
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊
L Series - Control Relays
L Series relay range of Timers, Control and Three Phase relays incorporate the latest technology and offer a wide range of user adjustable features.
17.5mm DIN rail housing
Microprocessor based
1 x SPDT relay output 8A
Green LED indication for supply status
Red LED indication for relay status
Microprocessor based
1 x SPDT relay output 8A
Green LED indication for supply status
Red LED indication for relay status
Approvals
UL Certification
規格
Attribute | Value |
|---|---|
| Monitoring Application | Voltage |
| Contact Configuration | SPDT |
| Voltage Sensing Range | 12 → 24V dc |
| Voltage Sensitivity | Undervoltage |
| Mounting Type | DIN Rail |
| Time Delay | 0 → 30s |
| Series | L |
| Operating Temperature Range | +60°C |
| Length | 66.5mm |
| Height | 89mm |
| Terminal Type | Screw |
| Special Features | Adjustment for Trip Level & Time Delay |
| Number of Poles | 1 |
| Minimum Operating Temperature | -20°C |
| Width | 17.5mm |
| Maximum Operating Temperature | +60°C |
| Dimensions | 66.5 x 17.5 x 89mm |
| Current Range | Maximum of 8A |
