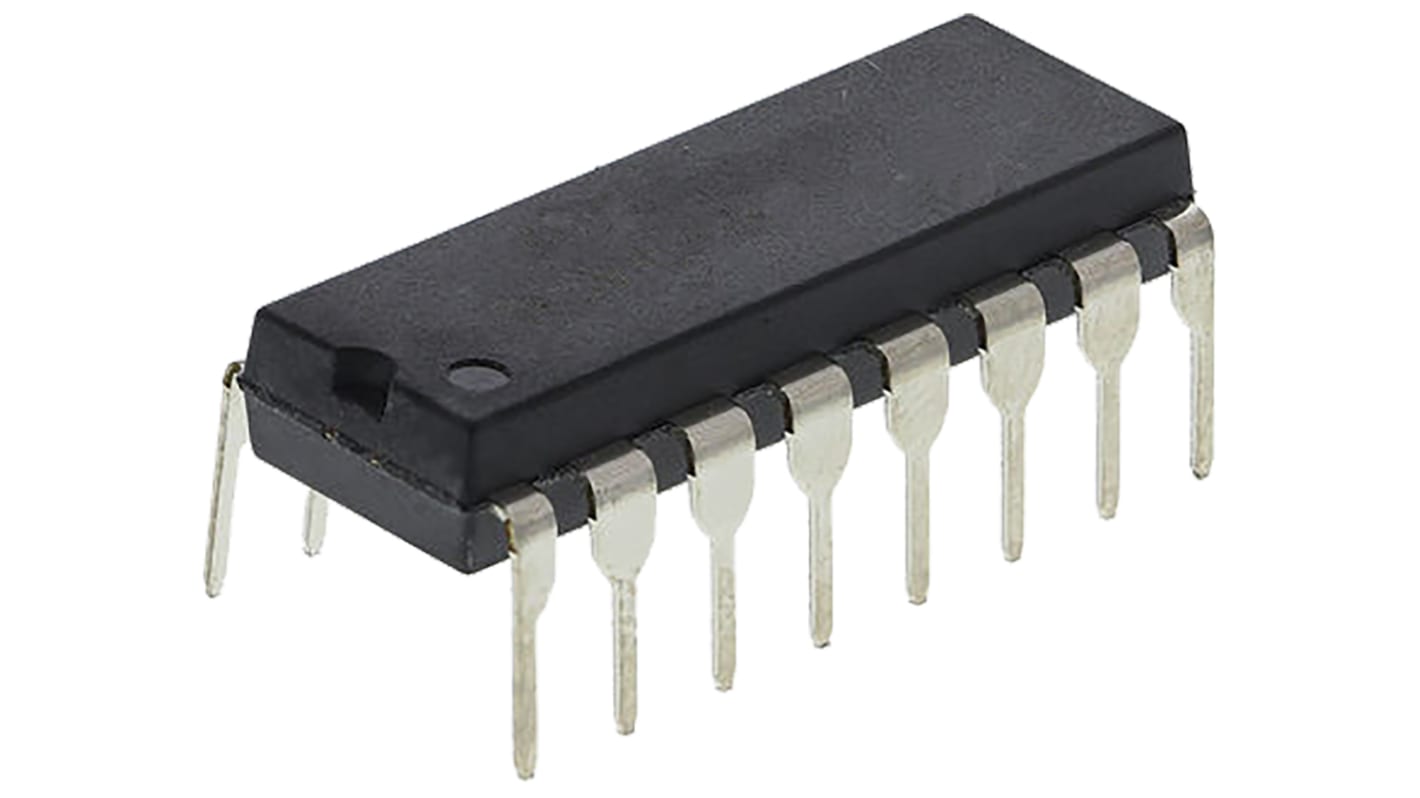

Toshiba TC74HC4538AP(F), Dual Monostable Multivibrator 5.2mA, 16-Pin PDIP
- RS庫存編號:
- 540-0427
- 製造零件編號:
- TC74HC4538AP(F)
- 製造商:
- Toshiba
20 在3 工作日內發貨 (海外庫存)
10 在3 工作日內發貨 (海外庫存)
已增加
單價 个（每托盘 5 ）
HK$11.144
| 單位 | Per unit | Per Pack* |
| 5 - 20 | HK$11.144 | HK$55.72 |
| 25 - 120 | HK$10.864 | HK$54.32 |
| 125 - 245 | HK$10.594 | HK$52.97 |
| 250 + | HK$10.328 | HK$51.64 |
| * 參考價格 | ||
- RS庫存編號:
- 540-0427
- 製造零件編號:
- TC74HC4538AP(F)
- 製造商:
- Toshiba
法例與合規
- COO (Country of Origin):
- JP
產品詳細資訊
TC74HC Series, Toshiba
High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
74HC Family
規格
Attribute | Value |
|---|---|
| Logic Family | HC |
| Logic Function | Monostable Multivibrator |
| Number of Elements per Chip | 2 |
| Maximum High Level Output Current | -5.2mA |
| Maximum Low Level Output Current | 5.2mA |
| Minimum Pulse Width | 13 ns |
| Maximum Propagation Delay Time @ Maximum CL | 250 ns @ 2 V |
| Maximum Quiescent Current | 0.004mA |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 16 |
| Dimensions | 19.25 x 6.4 x 3.5mm |
| Height | 3.5mm |
| Length | 19.25mm |
| Width | 6.4mm |
| Maximum Operating Supply Voltage | 6 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Supply Voltage | 2 V |
| Minimum Operating Temperature | -40 °C |
