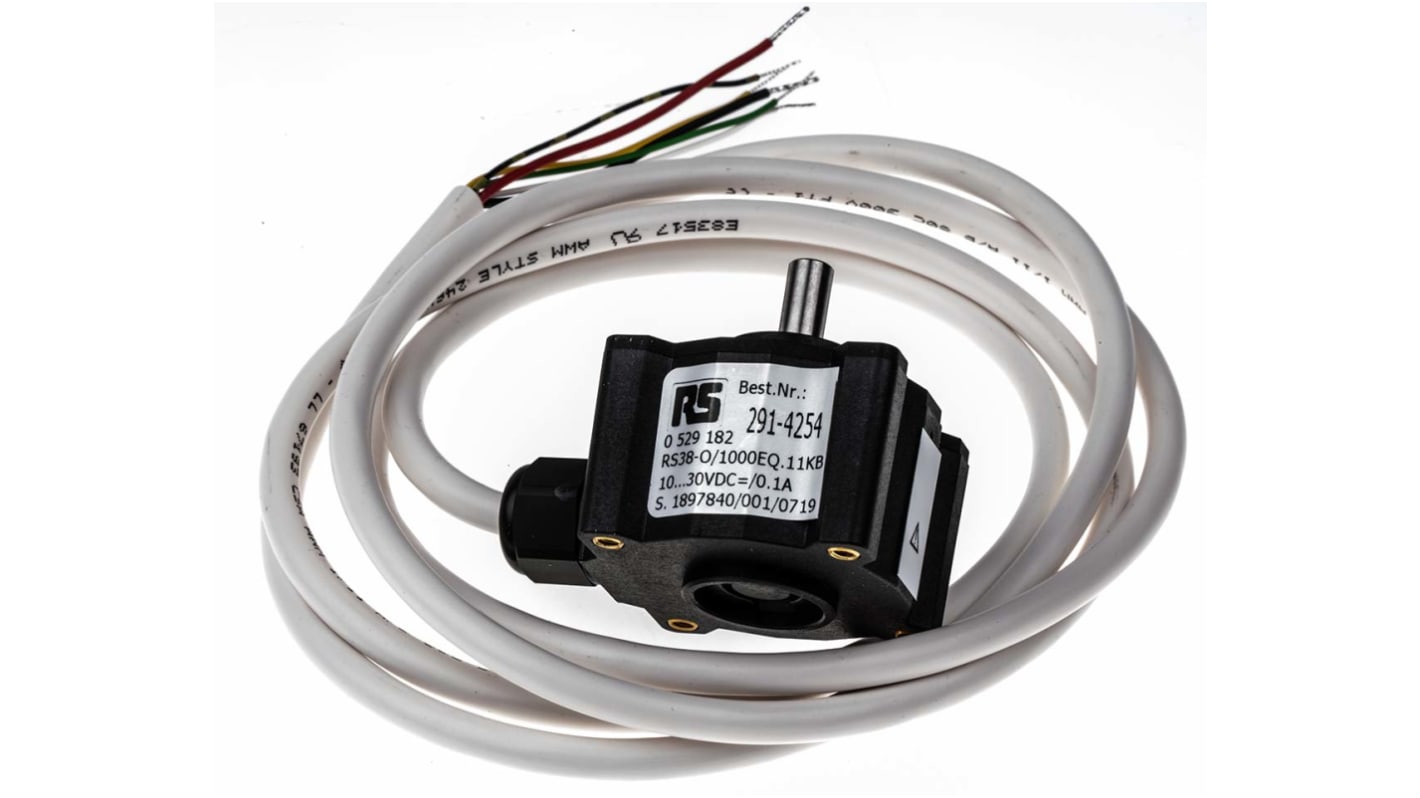

Hengstler RI38 Series Incremental Incremental Encoder, 1000 ppr, Push Pull Signal, Solid Type, 6mm Shaft
- RS庫存編號:
- 291-4254
- 製造零件編號:
- RS38-O/1000EQ.11KB
- 製造商:
- Hengstler
- RS庫存編號:
- 291-4254
- 製造零件編號:
- RS38-O/1000EQ.11KB
- 製造商:
- Hengstler
產品概覽和技術數據資料表
法例與合規
不適用
- COO (Country of Origin):
- DE
產品詳細資訊
RI38 Universal Mounting
Low torque/High efficiency with ball bearings
Hengstler
Radial cable termination
Alarm, A, B, N output
Encoders: OptoAsic technology for greater reliability
Pulse shape: Square wave, 1:1 duty cycle
Alarm, A, B, N output
Encoders: OptoAsic technology for greater reliability
Pulse shape: Square wave, 1:1 duty cycle
規格
Attribute | Value |
---|---|
Encoder Technology | Incremental |
Pulses Per Revolution | 1000 |
Series | RI38 |
Maximum Revolutions | 10000rpm |
Output Signal Type | Push Pull |
Shaft Type | Solid |
Shaft Diameter | 6mm |
Supply Voltage | 10 → 30 V dc |
IP Rating | IP40 |
Overall Height | 46.5mm |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +60°C |
Switching Frequency | 200 kHz |
