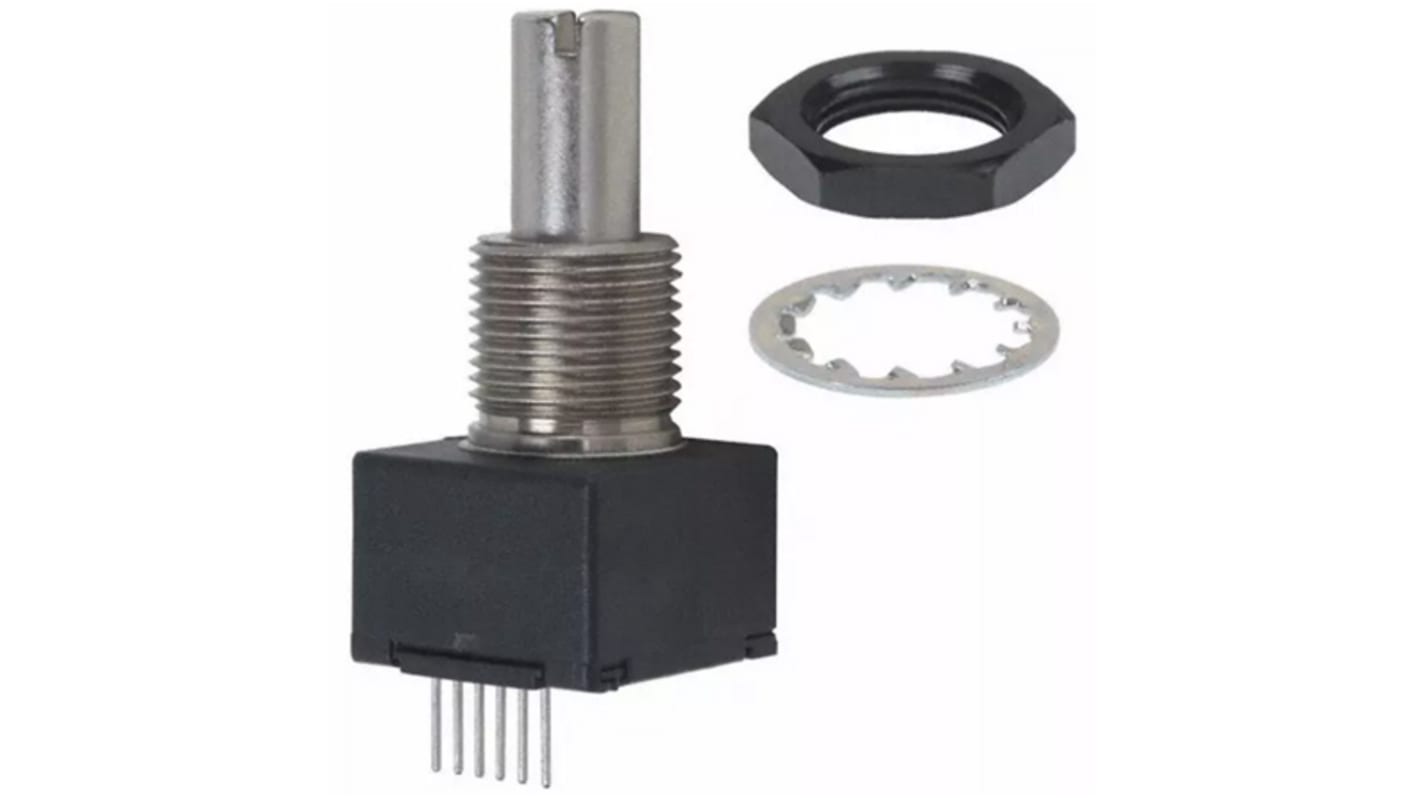

Bourns EM14 Series Optical Optical Encoder, 32 ppr, CMOS, HCMOS, TTL Signal, Slotted Type, 6mm Shaft
- RS庫存編號:
- 827-4997P
- 製造零件編號:
- EM14R0D-R20-L032S
- 製造商:
- Bourns
當前暫無庫存，可於2024/7/12發貨，3 工作日送達。
已增加
單價 个 (以每管裝提供)
HK$237.61
| 單位 | Per unit |
| 5 - 9 | HK$237.61 |
| 10 - 24 | HK$231.66 |
| 25 + | HK$225.87 |
- RS庫存編號:
- 827-4997P
- 製造零件編號:
- EM14R0D-R20-L032S
- 製造商:
- Bourns
法例與合規
產品詳細資訊
EM14 Series 14 mm Rotary Optical Encoder w/Switch
EM14 series 14 mm rotary optical encoders with a compact package size, splashproof shaft seal, high rotational life cycle and HCMOS, CMOS and TTL compatability. These EM14 series rotary optical encoders are available with detent (stock number 789-9497) and standard push switch (stock numbers 691-7695, 691-7692, 691-7705, 691-7709, 691-7718, 827 4997 and 827-5007) and have different shaft styles (please refer to datasheet for details). Typical applications for these EM14 rotary optical encoders are human/machine interface (HMI) applications.
HCMOS, CMOS and TTL compatible
High rotational cycle life
Splashproof shaft seal
Recommended for human/machine interface applications (HMI)
High rotational cycle life
Splashproof shaft seal
Recommended for human/machine interface applications (HMI)
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
Attribute | Value |
|---|---|
| Encoder Technology | Optical |
| Series | EM14 |
| Pulses Per Revolution | 32 |
| Maximum Revolutions | 120rpm |
| Output Signal Type | CMOS, HCMOS, TTL |
| Shaft Type | Slotted |
| Shaft Diameter | 6mm |
| Supply Voltage | 5 V dc |
| Resolution | 2 Bit |
| IP Rating | IP54 |
| Overall Height | 14.99mm |
| Overall Width | 14.25mm |
| Overall Depth | 30.57mm |
| Minimum Operating Temperature | -40°C |
| Mounting Type | Panel Mount |
| Maximum Operating Temperature | +70°C |
| Connection Type | Axial Multi-Purpose Pin |
