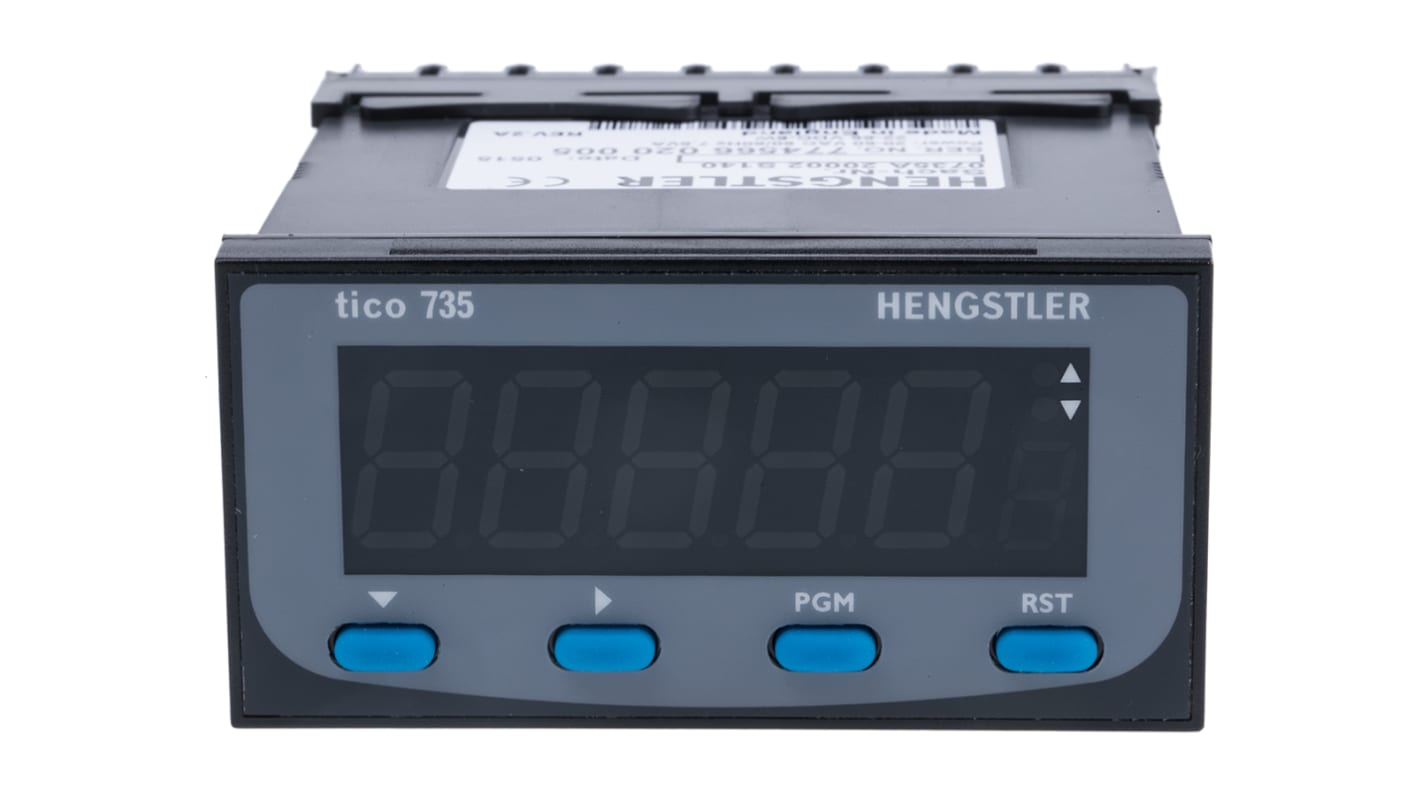

Hengstler TICO 735 LED Process Indicator for Current, Voltage, 45mm x 92mm
- RS庫存編號:
- 337-2493
- 製造零件編號:
- 0735A20002
- 製造商:
- Hengstler
此產品已停售
替代產品
該產品我們目前不提供。 這是我們推薦的替代產品。
- RS庫存編號:
- 337-2493
- 製造零件編號:
- 0735A20002
- 製造商:
- Hengstler
法例與合規
不適用
- COO (Country of Origin):
- GB
產品詳細資訊
Hengstler DC Process/Temperature Indicator
Programmable display as permanently red or green, or can change colour at a preset limit value
Large Display: 5-digit 18mm height. Small Display: 1-digit 11mm height
14 bit resolution
Programmable High and Low alarms
Front panel sealing to IP66
Dimensions: H48 x W96 x D100mm, panel cut-out 45 x 92mm
Large Display: 5-digit 18mm height. Small Display: 1-digit 11mm height
14 bit resolution
Programmable High and Low alarms
Front panel sealing to IP66
Dimensions: H48 x W96 x D100mm, panel cut-out 45 x 92mm
規格
Attribute | Value |
|---|---|
| Properties Measured | Current, Voltage |
| Display Type | LED |
| Cutout Height | 45mm |
| Cutout Width | 92mm |
| Depth | 100mm |
| Supply Voltage | 20 - 50Vac / 22 - 55Vdc |
| Minimum Temperature | 0°C |
| Maximum Temperature | +55°C |
| Series | TICO 735 |
