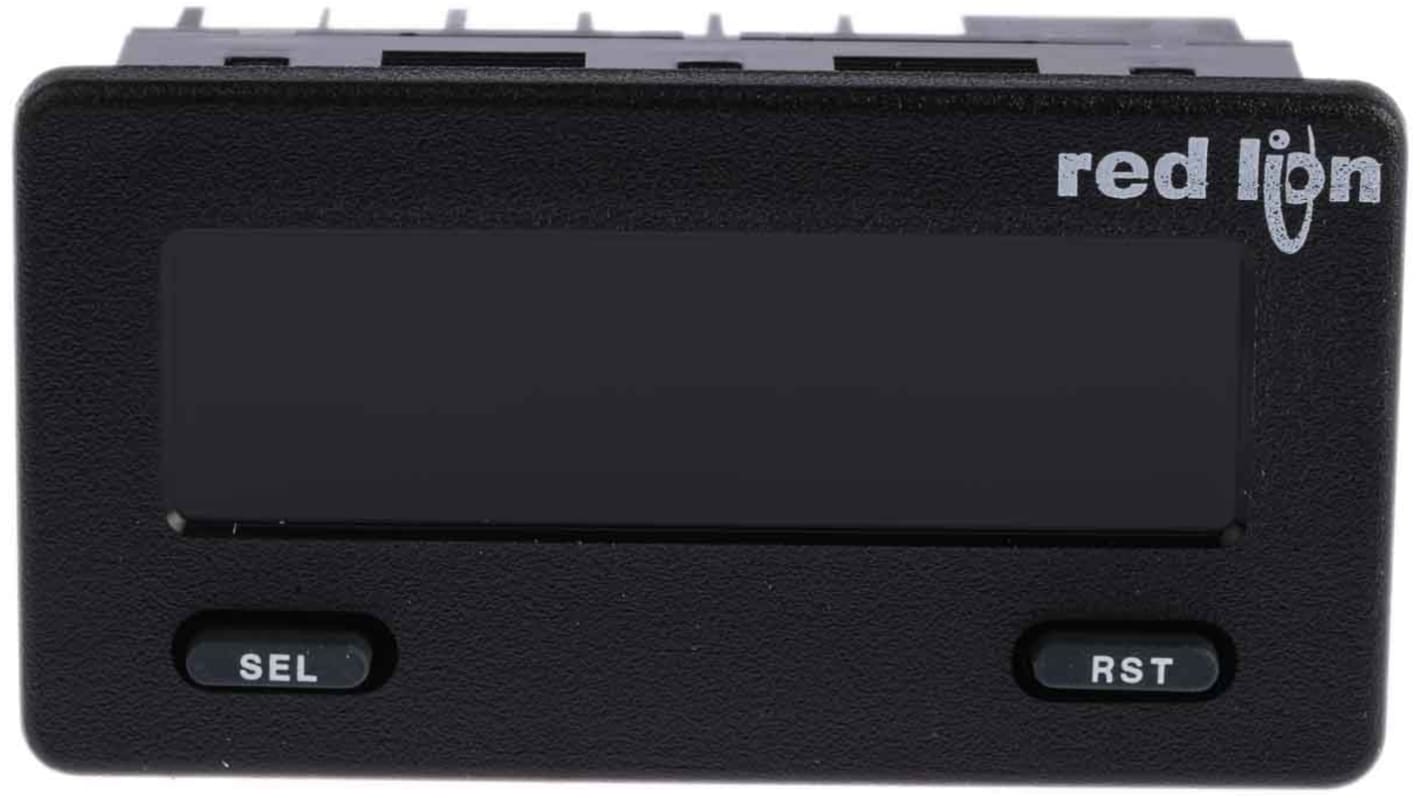

Red Lion CUB5 LCD Digital Panel Multi-Function Meter for Current, Voltage, 32.8mm x 68mm
- RS庫存編號:
- 653-7716
- 製造零件編號:
- CUB5PB00
- 製造商:
- Red Lion
- RS庫存編號:
- 653-7716
- 製造零件編號:
- CUB5PB00
- 製造商:
- Red Lion
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- US
產品詳細資訊
Red Lion Process Meter
The Red Lion process meter a high-quality, compact and affordable instrument designed using the latest technology. Each unit has a red backlight 5 digit LCD with 0.48in (12.2mm) high digits and a DIP switch with a selectable decimal point. The backlight version is user selectable for the desired colour and also has variable display intensity. It can be easily expanded with the addition of option cards. The setpoint output cards are field installable with programmable setpoints. Serial communications capability for RS232 or RS485 can be added with a serial option card.
Accessories:
Small and compact display.
Free scaling.
Accessories:
Small and compact display.
Free scaling.
Features and Benefits
Three selectable DC ranges (0V to 10V, 0mAto 20mA, 0mA to 50mA )
Wire connections made via screw clamp type terminals
9VDC to 28VDC powered
Automatic offset correction
Freely selectable decimal point
Free scaling via potentiometer
Cut-out height of 32.8mm and width of 68mm and depth of 49.8mm
Wire connections made via screw clamp type terminals
9VDC to 28VDC powered
Automatic offset correction
Freely selectable decimal point
Free scaling via potentiometer
Cut-out height of 32.8mm and width of 68mm and depth of 49.8mm
Certifications
NEMA 4X
IP65 rated sealed front panel bezel
cULus approved
CSA certified
CE certified
IP65 rated sealed front panel bezel
cULus approved
CSA certified
CE certified
規格
Attribute | Value |
|---|---|
| Properties Measured | Current, Voltage |
| Display Type | LCD |
| Cutout Height | 32.8mm |
| Cutout Width | 68mm |
| Depth | 43.4mm |
| Minimum Temperature | -35°C |
| Maximum Temperature | +75°C |
| Series | CUB5 |
