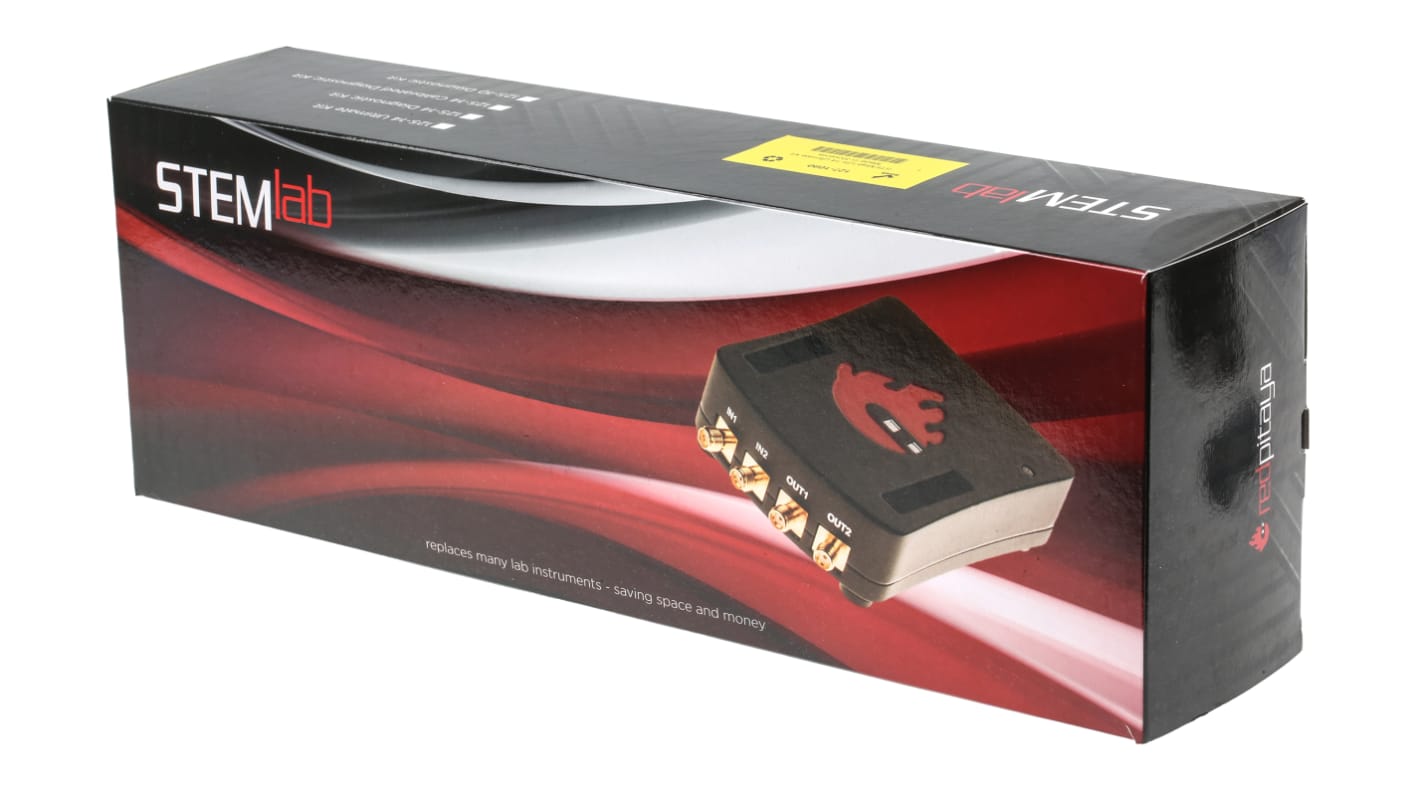

Red Pitaya STEMLab125-14 Oscilloscope, 2 Channels

  • RS庫存編號 127-1090
  • 製造零件編號 042
  • 製造商 Red Pitaya
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): RO
產品詳細資訊

Red Pitaya STEMLab125-14 Ultimate Kit

The STEMLab 125-14 Ultimate kit consists of the following Red Pitaya hardware and functionality, all ready to go:

Test & Measurement Instruments

Oscilloscope Signal generator
Spectrum analyser
Bode analyser
Logic analyser pro
LCR meter
Access to the Red Pitaya marketplace which is a place where free of charge open source applications developed by red Pitaya community members are available within a single click for immediate experience and use

Development & Learning Tools / Features

MATLAB / LABVIEW remote control Possibility to create own app (open source code available)

Accessories

SD card Power supply
Ethernet cable
2 x oscilloscope probes
2 x SMA to BNC adapters
2 x 50 ohm termination
2 x SMA T adapters
Wi-Fi dongle
Aluminium case

Other

Calibrated Compliance, CE, FCC

Red Pitaya Hardware

Red Pitaya STEMLab 14 board Connectivity (ethernet, Wi-Fi)

Red Pitaya PC Based Oscilloscope Ultimate Kit

The Red Pitaya STEMLab 125-14 PC based 40MHz oscilloscope ultimate kit consists of various Red Pitaya hardware. It has 2 analogue channels and 14bit input/output channels for highly accurate measurement results in a professional environment. It consists of test and measurement Instruments like the oscilloscope signal generator, spectrum analyser, and bode analyser. Access to the Red Pitaya marketplace which is a place where free of charge open-source applications developed by red Pitaya community members are available within a single click for immediate experience and useDevelopment and Learning tools feature MATLAB/LABVIEW remote control possibility to create own app (open source code available.Supplied with 1 x STEMlab 125-14 board- calibrated1 x 2A, 5VDC Interchangeable power Supply1 x 4GB, class 10 SD card1 x 1m ETH cable2 x Oscilloscope probes2 x SMA to BNC adapters2 x 50ohm termination2 x T adapters1 x Logic analyser pro licence key1 X Logic analyser HW in ALU case,1 x Wi-Fi USB module1 x Aluminium case for STEMlab board1 x LCR meter extension module and access

Features and Benefits

Available RAM of 512MB(4GB) Sample random rate is 125MSa/s The bandwidth of oscilloscope is 40MHz

Applications

Audio and video recording equipment Designing Research & Development Testing in manufacturing Testing of signals voltage in radio broadcasting equipment Testing signal voltage in-circuit debugging

Certifications

CE compliant FCC compliant

Red Pitaya PC Based Instruments

規格
Attribute Value
Number of Channels 2
Bandwidth 40MHz
Oscilloscope Type PC Based
Series STEMlab
Power Source USB Connector
Sample Rate Random 100 Ksps, 125 Msps
Model Number p STEMLab125-14
4 現貨庫存,可於3工作日發貨。
單價 個
HK$ 5,977.04
(不含稅)
單位
Per unit
1 +
HK$5,977.04
