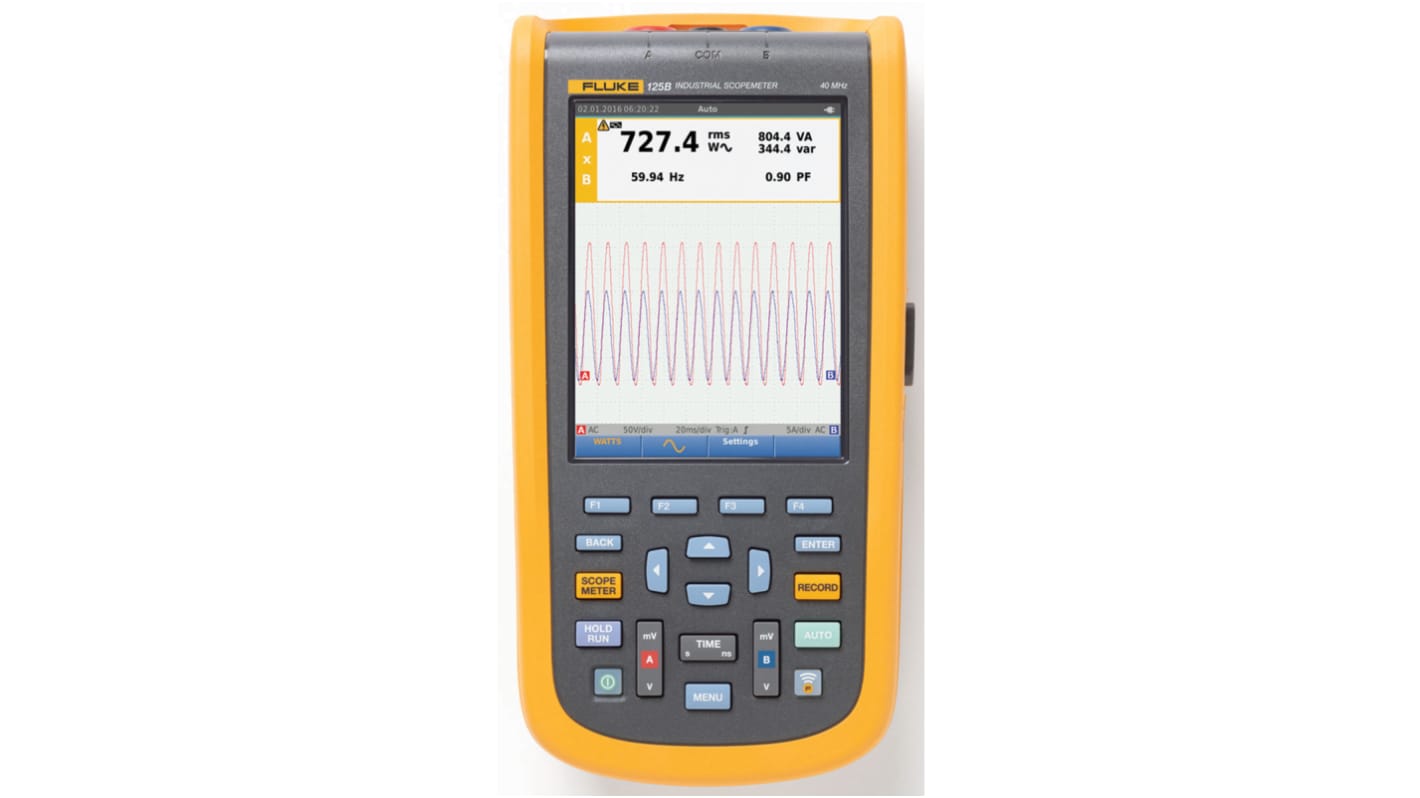

Fluke 125 Series 125B ScopeMeter Oscilloscope, Handheld, 2 Channels, 40MHz

  • RS庫存編號 919-5069
  • 製造零件編號 FLUKE-125B/INT
  • 製造商 Fluke
COO (Country of Origin): CN

Fluke ScopeMeter Oscilloscope

The Fluke 120B series, 2-channel, 40MHz is a rugged compact scopemeter and an integrated test tool, with an oscilloscope, multimeter and high-speed recorder in one easy-to-use instrument. This scopemeter also integrates with Fluke connect mobile app and Fluke View for scopemeter software to enable further collaboration, data analysis and archiving of critical test information.
The 40MHz Fluke 125B includes scope cursor measurements, power, harmonics measurements, and bus health tester.
Li-ion battery pack, charger/power adapter, shielded test leads (2) with ground leads, black test lead, red and blue hook clips, banana to BNC adapter, a carry case, Fluke View for Windows software, magnetic hanger, and a screen protector.

Features and Benefits

Rise time is less than 8.75ns
Dual-input digital oscilloscope and multimeter
Two 5,000 counts true-RMS digital multimeter
Automatic measurements
Dual-input waveform and meter reading recorder for trending data over extended periods
Recorder event detect captures elusive intermittent signals on repetitive waveforms up to 4 kHz
Connect-and-View trigger simplicity for hands-off operation
Shielded test leads for oscilloscope, voltage, resistance and continuity measurements
Measures voltage, current and power harmonics
Up to 7 hours of rechargeable battery operation
External optically isolated USB interface to transfer, archive and analyse scope or meter data
Rugged compact case
Gives bus health and power measurements
Fluke 125B/S versions also include carrying case, Fluke View for Windows software, magnetic hanger and screen protector


Industrial equipments
Electro-mechanical troubleshooting and maintenance


IP51 rated
IEC 61010-1 approved
Pollution Degree 2, IEC 61010-2-033

Attribute Value
Number of Channels 2
Bandwidth 40MHz
Oscilloscope Type Handheld
Series 125
Power Source Battery
Minimum Vertical Sensitivity 5mV/div
Maximum Vertical Sensitivity 200V/div
Minimum Time Base 10ns
Screen Size 5.7in
Sample Rate Random 400 K samples/s
Battery Type NiMH
Safety Category Level CAT III, CAT IV
Safety Category Voltage 600 Vrms, 750 Vrms
Rise Time <8.75ns
Safety Category CAT III 750 Vrms, CAT IV 600 Vrms
Model Number p 125B
