- RS庫存編號:
- 251-8143
- 製造商:
- RS PRO
2700 現貨庫存,可於3工作日發貨。
已增加
單價 个(每托盘 25 )
HK$3.562
單位 | Per unit | Per Pack* |
25 - 350 | HK$3.562 | HK$89.05 |
375 - 1225 | HK$3.464 | HK$86.60 |
1250 - 2475 | HK$3.355 | HK$83.875 |
2500 - 12475 | HK$3.278 | HK$81.95 |
12500 + | HK$2.698 | HK$67.45 |
* 參考價格 |
- RS庫存編號:
- 251-8143
- 製造商:
- RS PRO
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- TW
產品詳細資訊

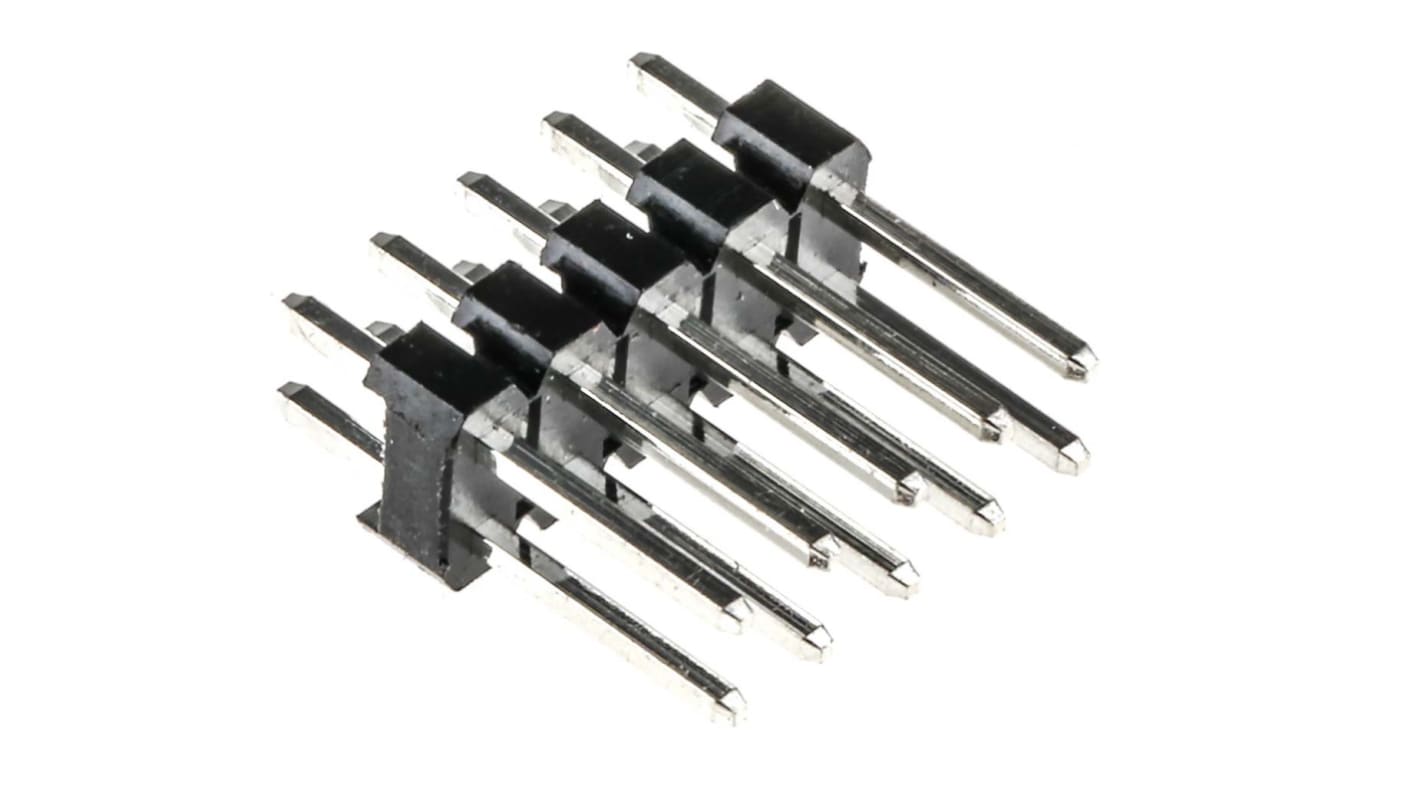

RS PRO, 10 Way, 2 Row, Straight Pin Header
When you need to bridge printed circuit boards (PCBs) and transmit signals and currents between them, use this electrical connector from RS PRO. You can use this connector to create board-to-wire setups with an electronic harness terminal. It can also be used independently for board-to-board connections.
This connector can be through-hole mounted for a strong mechanical bond to keep your components reliably in place. As it's made from heat-resistant thermoplastic, it won't be damaged by soldering or reflow. For reliable conductivity, the pin header has tin-plated brass contacts.
This type of PCB header provides an easy way to connect boards and wires. As the contacts are easy to remove, this product is a good choice when you're working on a prototype that needs to be revised.
This connector can be through-hole mounted for a strong mechanical bond to keep your components reliably in place. As it's made from heat-resistant thermoplastic, it won't be damaged by soldering or reflow. For reliable conductivity, the pin header has tin-plated brass contacts.
This type of PCB header provides an easy way to connect boards and wires. As the contacts are easy to remove, this product is a good choice when you're working on a prototype that needs to be revised.
Features and Benefits
- Straight body orientation
- Brass contact material
- Tin contact plating
- Current rating of 3 A
- Mating pin length of 7 mm
- Through-hole mounting type
- Ten contacts
- Two rows
- Pitch of 2.54 mm
- Unshrouded
- Tail pin length of 3 mm
- Solder termination method
規格
Attribute | Value |
---|---|
Pitch | 2.54mm |
Number of Contacts | 10 |
Number of Rows | 2 |
Body Orientation | Straight |
Shrouded/Unshrouded | Unshrouded |
Mounting Type | Through Hole |
Termination Method | Solder |
Contact Plating | Tin |
Contact Material | Brass |
Current Rating | 3.0A |
Tail Pin Length | 3.0mm |
Mating Pin Length | 7.0mm |
