- RS庫存編號:
- 251-8159
- 製造商:
- RS PRO
本地庫存暫不足,貨期請向RS查詢
已增加
單價 个(每托盘 25 )
HK$4.877
單位 | Per unit | Per Pack* |
25 - 350 | HK$4.877 | HK$121.925 |
375 - 1225 | HK$4.73 | HK$118.25 |
1250 - 2475 | HK$4.584 | HK$114.60 |
2500 - 12475 | HK$4.487 | HK$112.175 |
12500 + | HK$3.693 | HK$92.325 |
* 參考價格 |
- RS庫存編號:
- 251-8159
- 製造商:
- RS PRO
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- TW
產品詳細資訊

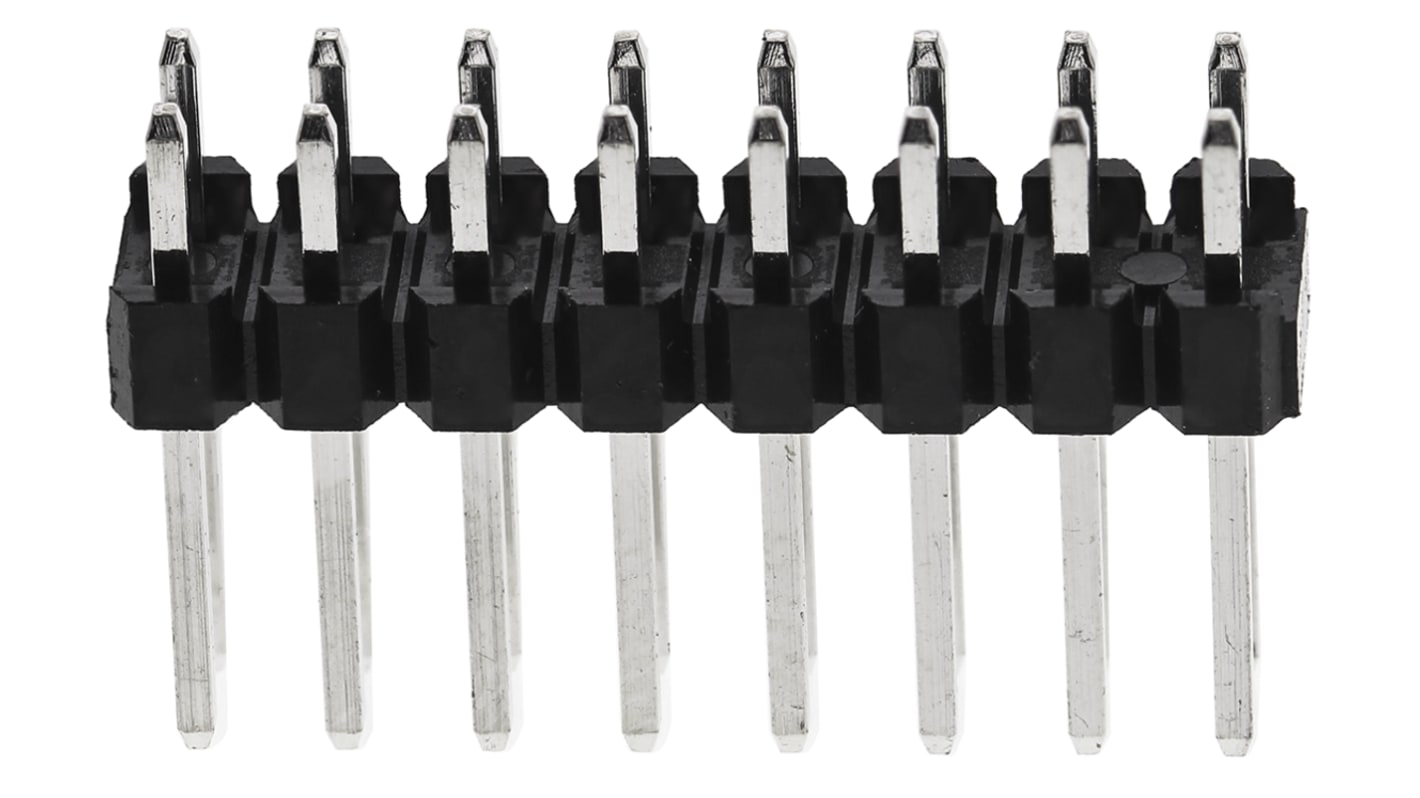

RS PRO, 16 Way, 2 Row, Straight Pin Header
Need an efficient way to bridge printed circuit boards (PCBs) to transmit current and signals between them? Turn to this electrical connector from RS PRO. It's reflow and soldering compatible thanks to its heat-resistant thermoplastic material.
For excellent electrical conductivity and reliable signal transmission, the pin header has tin-plated brass contacts. It's through-hole mounted for a strong mechanical bond that keeps it securely in place for a long time.
You can use this versatile connector either with electronic harness terminals for board-to-wire setups, or independently for board-to-board connections. As it's easy to remove, it's a good choice for prototypes that need revising.
For excellent electrical conductivity and reliable signal transmission, the pin header has tin-plated brass contacts. It's through-hole mounted for a strong mechanical bond that keeps it securely in place for a long time.
You can use this versatile connector either with electronic harness terminals for board-to-wire setups, or independently for board-to-board connections. As it's easy to remove, it's a good choice for prototypes that need revising.
Features and Benefits
- Straight body orientation
- Brass contact material
- Tin contact plating
- Current rating of 3 A
- Mating pin length of 7 mm
- Through-hole mounting type
- 16 contacts
- Two rows
- Pitch of 2.54 mm
- Unshrouded
- Tail pin length of 3 mm
- Solder termination method
- Voltage rating of 500 V
規格
Attribute | Value |
---|---|
Pitch | 2.54mm |
Number of Contacts | 16 |
Number of Rows | 2 |
Body Orientation | Straight |
Shrouded/Unshrouded | Unshrouded |
Mounting Type | Through Hole |
Termination Method | Solder |
Contact Material | Brass |
Contact Plating | Tin |
Current Rating | 3.0A |
Tail Pin Length | 3.0mm |
Mating Pin Length | 7.0mm |
Voltage Rating | 500 V ac |
