- RS庫存編號:
- 466-4204
- 製造零件編號:
- KM2520EH/1SGD
- 製造商:
- Kingbright
- RS庫存編號:
- 466-4204
- 製造零件編號:
- KM2520EH/1SGD
- 製造商:
- Kingbright
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊

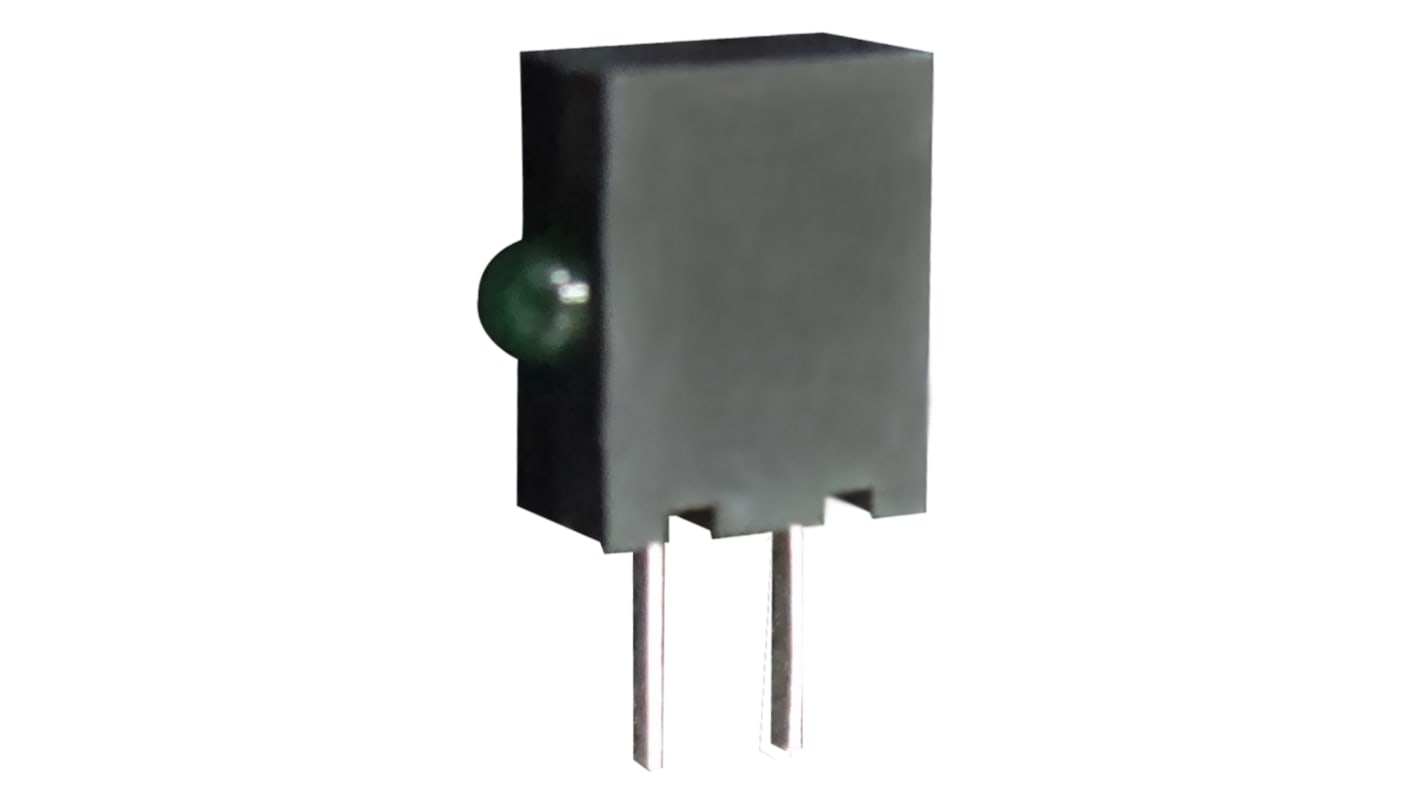

Kingbright 2520 Subminiature LED Indicators
The 2520 PCB LED indicators, from Kingbright, are available in single and quad block packages. They consist of subminiature LEDs within a black plastic housing. The housing holds the LEDs in place, at a right angle to the board.
Features of the 2520 PCB LED indicators:
Subminiature LEDs
Variety of colours
Through-hole mounting
Black plastic housing, right angle
High-contrast
UL 94 V-0 rated
Diffused lens
Subminiature LEDs
Variety of colours
Through-hole mounting
Black plastic housing, right angle
High-contrast
UL 94 V-0 rated
Diffused lens
PCB LED Indicators, Kingbright
規格
Attribute | Value |
---|---|
LED Colours | Green |
Number of LEDs | 1 |
Mounting Type | Through Hole |
Supply Voltage | 2.5 V |
Number of Pins | 2 |
Viewing Angle | 40 ° |
Dominant Wavelength | 568 nm |
LED Orientation | Right Angle |
LED Material | GaP |
Dimensions | 6.22 x 2.44 x 6.35mm |
Length | 6.22mm |
Width | 2.44mm |
Height | 6.35mm |
Intensity | 15mcd |
