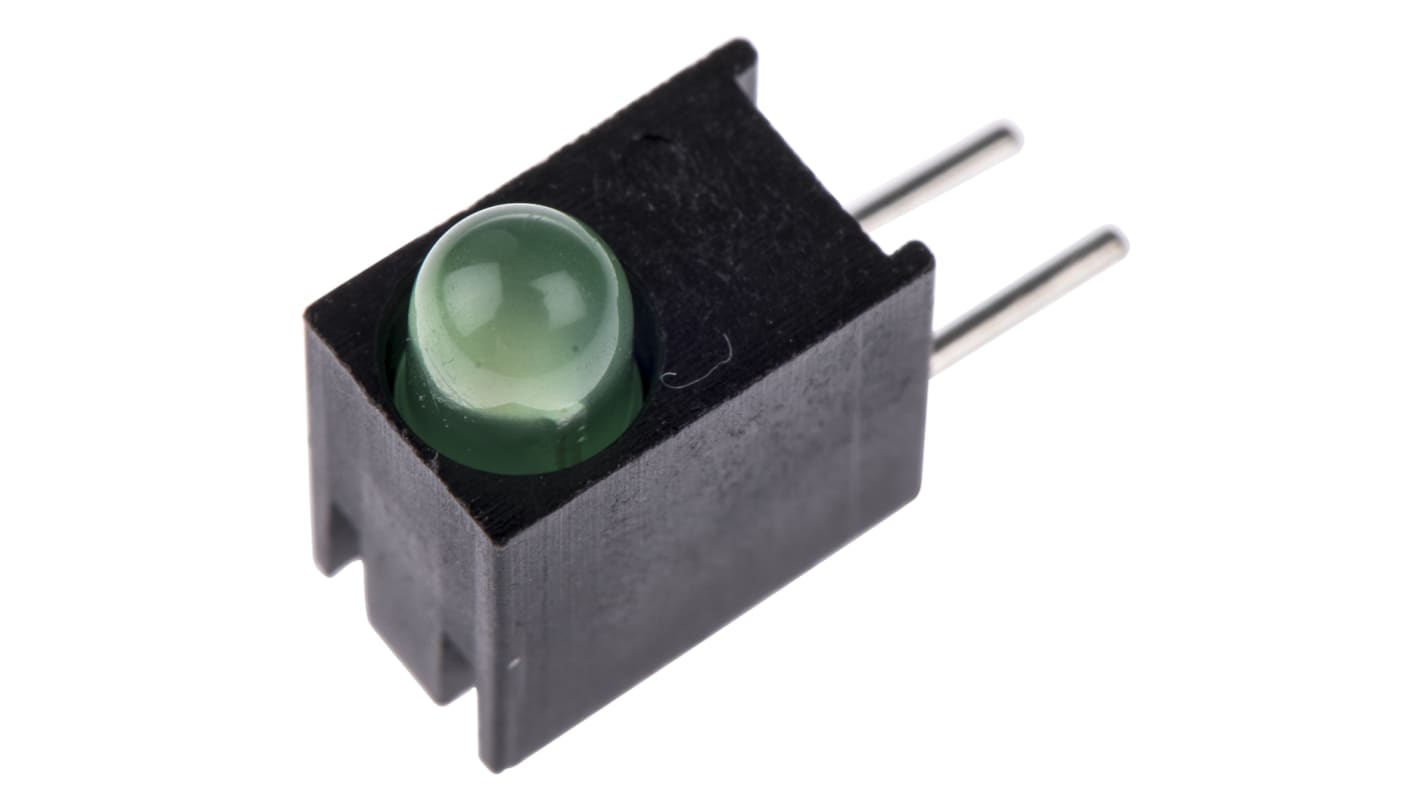

Dialight 551-1307F, Green Right Angle PCB LED Indicator, Through Hole 1.9 V
- RS庫存編號:
- 546-0435
- 製造零件編號:
- 551-1307F
- 製造商:
- Dialight
- RS庫存編號:
- 546-0435
- 製造零件編號:
- 551-1307F
- 製造商:
- Dialight
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
Dialight 551-xx07 Series LED CBI® Circuit Board Indicators
Dialight's 551-xx07 series are a family of LED CBI® circuit board indicators. The consist of one 3mm (T-1) LED in a black plastic housing with a high centreline of 4.45mm. The black housing offers a high contrast whilst holding the LED at a right angle. They have 2 pins for through-hole mounting. The 551-xx07 PCB LED indicators are available in high efficiency, integral resistor, low current and bi-colour LED options.
Features of the 551-xx07 PCB LED indicators:
3mm through hole LEDs
Variety of colours
Right angle black housing
Compatible with 551-xx07-004 QuadBlock
3mm through hole LEDs
Variety of colours
Right angle black housing
Compatible with 551-xx07-004 QuadBlock
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
PCB LED Indicators, Dialight
規格
Attribute | Value |
|---|---|
| LED Colours | Green |
| Number of LEDs | 1 |
| Mounting Type | Through Hole |
| Supply Voltage | 1.9 V |
| Number of Pins | 2 |
| Viewing Angle | 60 ° |
| Dominant Wavelength | 565 nm |
| LED Orientation | Right Angle |
| Dimensions | 8.89 x 4.32 x 7.11mm |
| Length | 8.89mm |
| Width | 4.32mm |
| Height | 7.11mm |
| Intensity | 1.6mcd |
