Phoenix Contact Polycarbonate PCB Mounting Enclosure, 100 x 62mm
- RS庫存編號:
- 240-7274
- 製造零件編號:
- 1246286
- 製造商:
- Phoenix Contact
- RS庫存編號:
- 240-7274
- 製造零件編號:
- 1246286
- 製造商:
- Phoenix Contact
產品概覽和技術數據資料表
法例與合規
不適用
- COO (Country of Origin):
- DE
產品詳細資訊

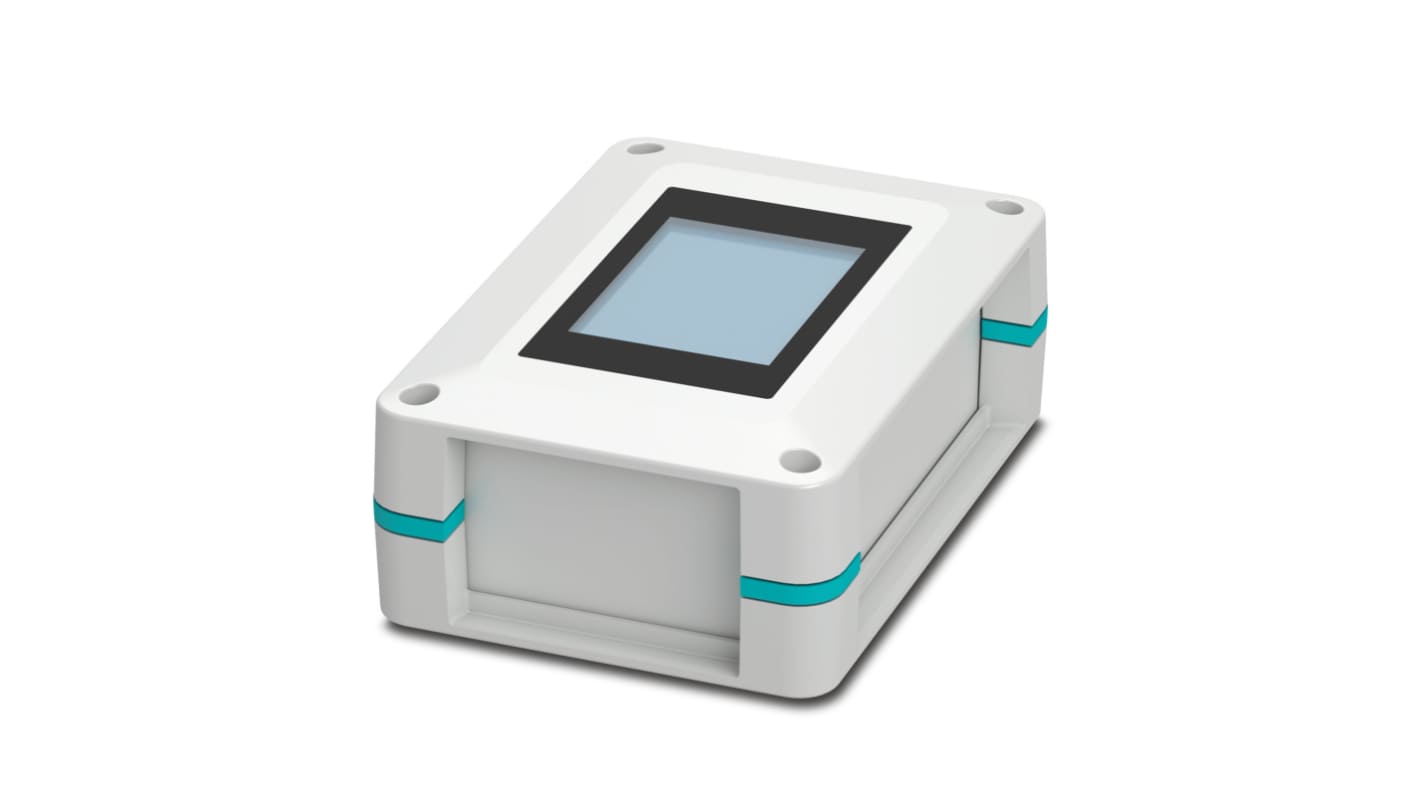

The Phoenix contact Universal housing with touch display are complete housing for PCBs, can be positioned flexibly. It has adhesive pads for attaching the PCB with turquoise blue corner inserts. The touch display integrated in housing half-shell. The resistive touch technology is 2.4 inch and the resolution is 320 x 240 pixels. The interface is SPI. The space for additional electronics expands the Raspberry Pi minicomputer’s areas of application and it can be used universally with help of its extensive accessories.
Housing system for visualization and operation in the field
Time-saving assembly of ready-to-use modules with Plug and Play
Positioning of the display using the configurator
Time-saving assembly of ready-to-use modules with Plug and Play
Positioning of the display using the configurator
規格
Attribute | Value |
|---|---|
| Internal Dimensions | 100 x 62mm |
| Internal Length | 100 mm |
| Internal Width | 100 mm |
| Internal Height | 62 mm |
| Body Material | Polycarbonate |
