Deutsch PFL PCB Case
- RS庫存編號:
- 724-2557
- 製造零件編號:
- EEC-325X4B
- 製造商:
- Deutsch
當前暫無庫存，可於2024/7/29發貨，3 工作日送達。
已增加
單價 个
HK$108.16
| 單位 | Per unit |
| 1 - 9 | HK$108.16 |
| 10 - 24 | HK$105.86 |
| 25 - 49 | HK$101.66 |
| 50 - 99 | HK$99.50 |
| 100 + | HK$97.32 |
- RS庫存編號:
- 724-2557
- 製造零件編號:
- EEC-325X4B
- 製造商:
- Deutsch
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- US
產品詳細資訊

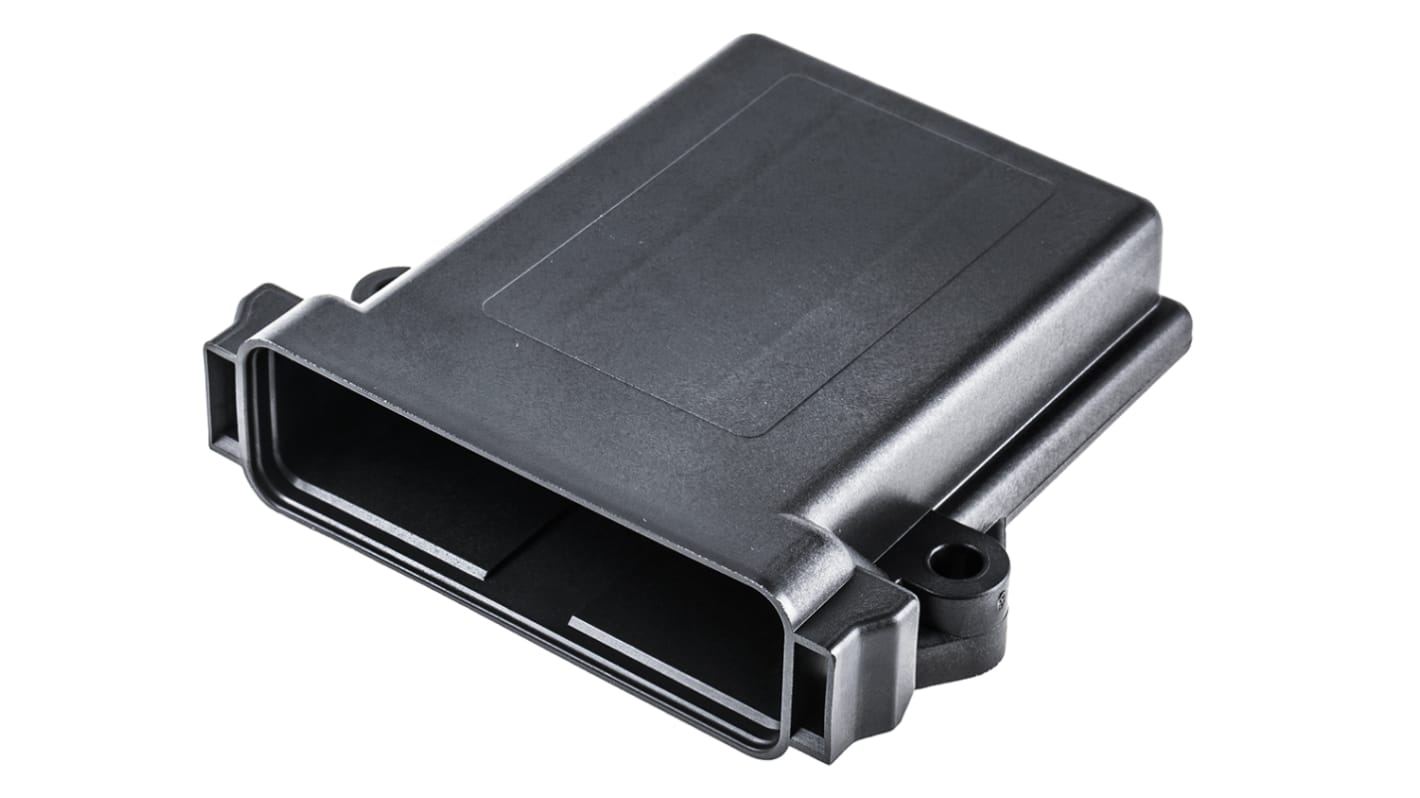

Deutsch DTM series PCB Enclosures
Deutsch enclosures are suitable for the protection of circuitry interfaced with the DTM series of connectors, these enclosures will receive a DTM13 series snap-in header connector. The enclosure features a through hole mounting flange on each side, as well as optional venting. Ideal for electronic control modules, multiplex systems etc.
Note
For suitable DTM13 Series connector interface see 724-2560 and range.
Deutsch DTM13 Series PCB Connector Headers
DTM13 series PCB header connectors are ideal for heavy duty rated electronic sensor and small module automotive connector applications.
規格
Attribute | Value |
|---|---|
| Internal Dimensions | 135 x 118 x 36mm |
| Internal Length | 133 mm |
| Internal Width | 118 mm |
| Internal Height | 36 mm |
| Series | PFL |
