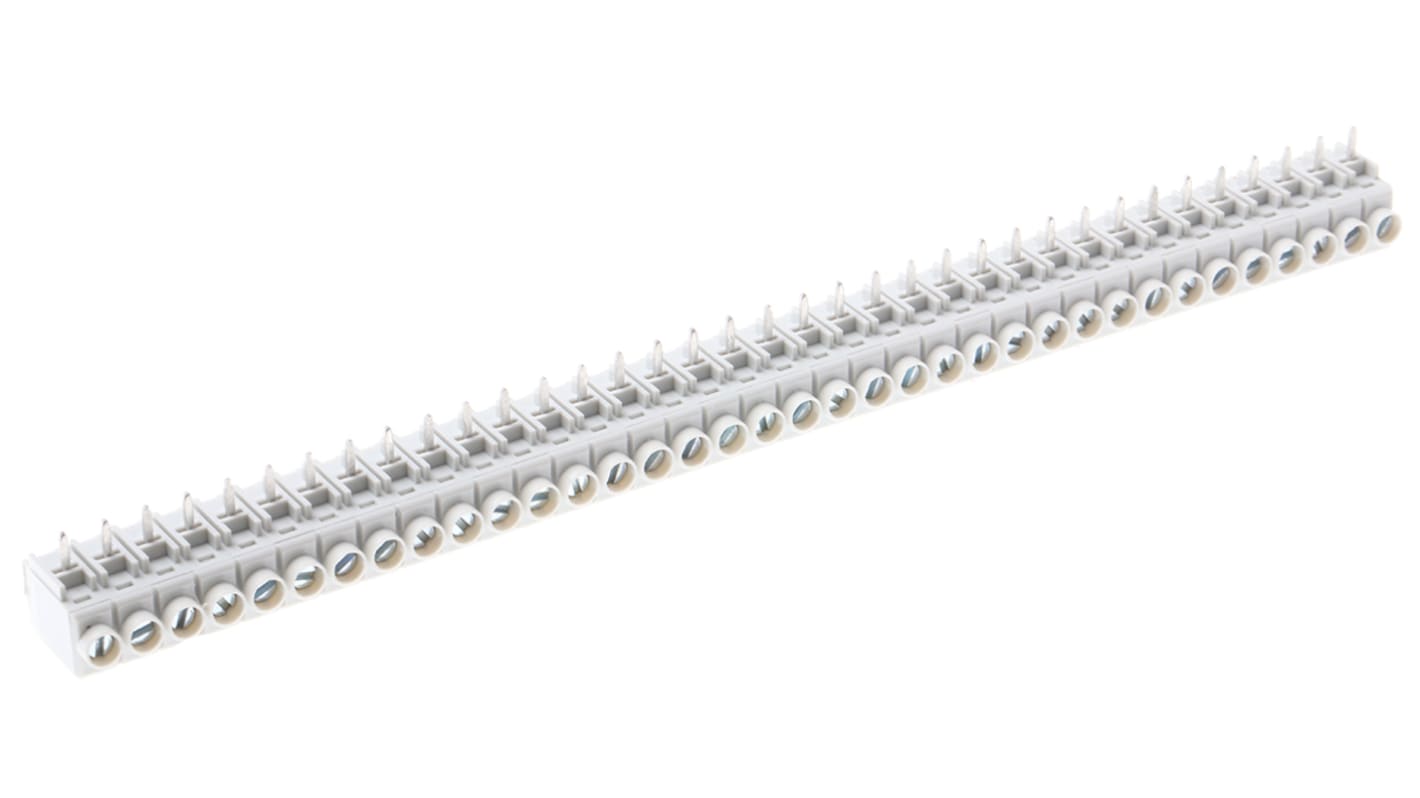

CAMDENBOSS, 36 Way PCB Terminal Strip

  • RS庫存編號 433-141
  • 製造零件編號 CTB7050/36
  • 製造商 CAMDENBOSS
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): IT
產品詳細資訊

Cut to Length Screw Terminals

36-way PCB mounting rising clamp screw terminals which can be cut to length easily
Flame retardant polycarbonate with 3.5mm² cable entry
Available in horizontal and vertical types

Current 13A max.
Voltage 380V max.
Insulation resistance >40MΩ
Max. temperature +110°C
Horizontal terminal L. 180 H. 10.5 W. 15.5
Vertical terminal L. 180 H. 15 W. 8.5

Approvals

8888

規格
Attribute Value
Number of Contacts 36
Pitch 5mm
Number of Rows 1
Mounting Type Through Hole
Gender Male
Termination Method Cage Clamp, Screw
Type PCB Terminal Block
Current Rating 13A
Body Orientation Straight
Voltage Rating 380 V
Material PC
Width 10.5mm
Depth 15.5mm
Length 180mm
74 現貨庫存,可於3工作日發貨。
單價 個
HK$ 121.47
(不含稅)
單位
Per unit
1 - 24
HK$121.47
25 - 74
HK$109.32
75 - 199
HK$97.16
200 - 399
HK$85.02
400 +
HK$78.95
