Phoenix Contact PT 1.5/ 3-3.5-V Series PCB Terminal Block, 3.5mm Pitch, Through Hole Mount, 1-Row, Solder Termination
- RS庫存編號:
- 648-8529
- 製造零件編號:
- 1984772
- 製造商:
- Phoenix Contact
- RS庫存編號:
- 648-8529
- 製造零件編號:
- 1984772
- 製造商:
- Phoenix Contact
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- DE
產品詳細資訊

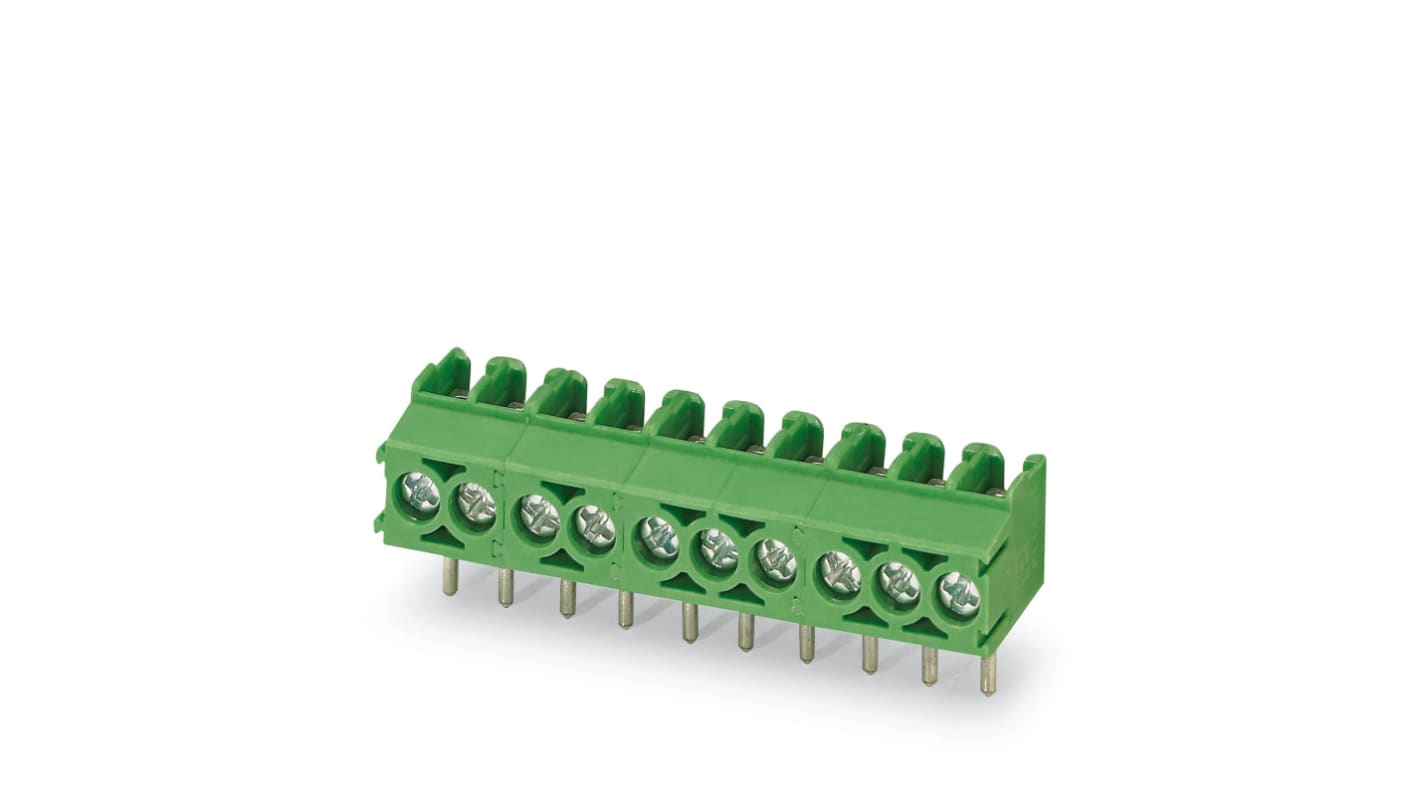

Phoenix Contact PT 1.5 PCB Terminal Blocks
A range of green, Phoenix Contact terminal blocks from the PT 1.5 range.
The through-hole terminal blocks are used to secure and terminate wires. Individual terminals use a screw to tighten the wire to make an electrical connection.
The through-hole terminal blocks are used to secure and terminate wires. Individual terminals use a screw to tighten the wire to make an electrical connection.
Features and Benefits
Maximum contact force gives low-temperature rise
High capacity thanks to the rectangular block space
Can accommodate a wide range of wire sizes
Reliable connection provided
Various numbers of positions can be combined due to the latching on the sides
3.5 mm and 5 mm pitch available
High capacity thanks to the rectangular block space
Can accommodate a wide range of wire sizes
Reliable connection provided
Various numbers of positions can be combined due to the latching on the sides
3.5 mm and 5 mm pitch available
Approvals
UL, CUL
規格
Attribute | Value |
---|---|
Pitch | 3.5mm |
Number of Rows | 1 |
Mounting Type | Through Hole |
Termination Method | Solder |
Type | Terminal Blocks |
Current Rating | 17.5A |
Body Orientation | Right Angle |
Colour | Green |
Voltage Rating | 160 V |
Series | PT 1.5/ 3-3.5-V |
Material | Nylon |
