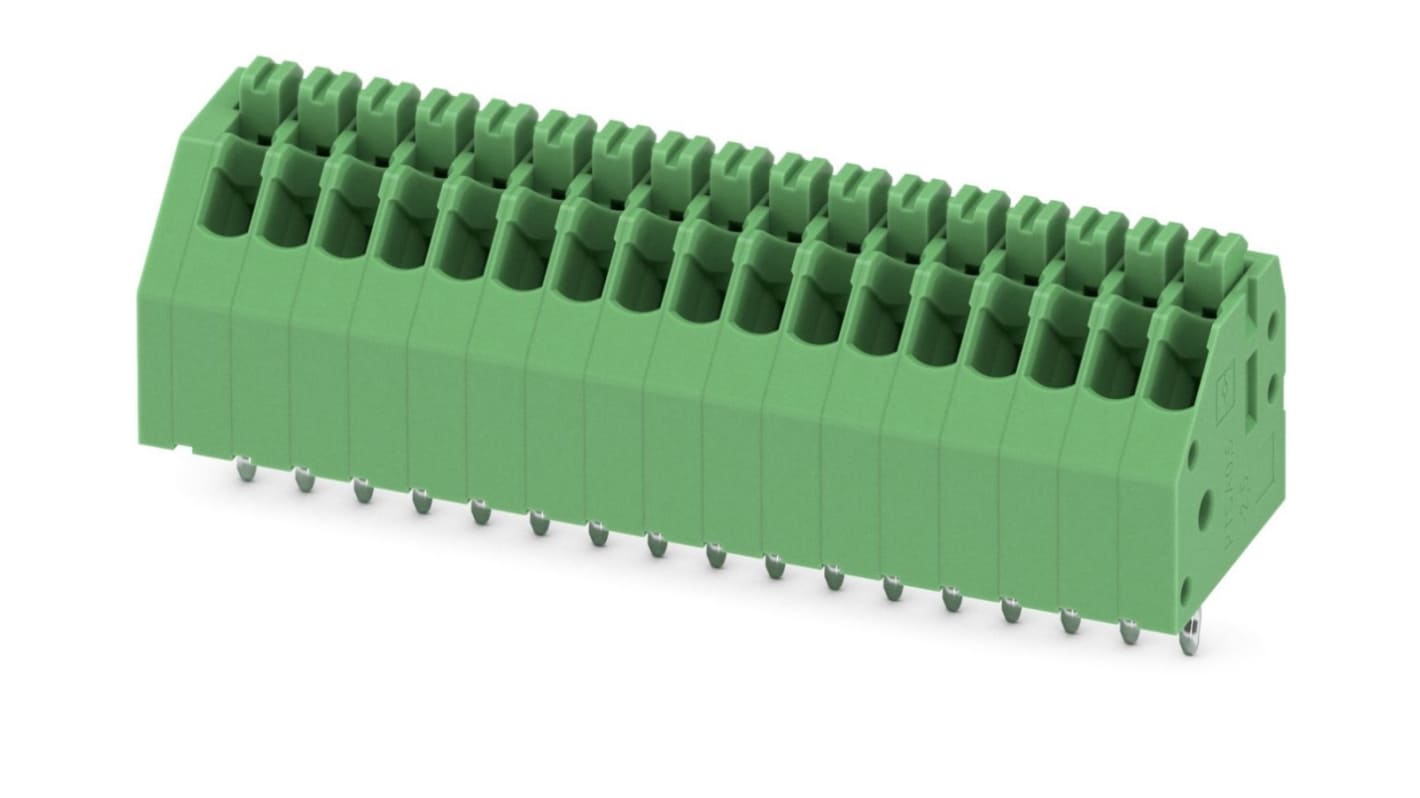

Phoenix Contact PTSA 0.5/17-2.5-F Series PCB Terminal Block, 17-Contact, 2.5mm Pitch, Through Hole Mount, Spring Cage
- RS庫存編號:
- 855-3054
- 製造零件編號:
- 1989890
- 製造商:
- Phoenix Contact
當前暫無庫存，可於2024/6/18發貨，3 工作日送達。
已增加
單價 个 (以毎盒：50)
HK$21.523
| 單位 | Per unit | Per Box* |
| 50 - 200 | HK$21.523 | HK$1,076.15 |
| 250 + | HK$21.093 | HK$1,054.65 |
| * 參考價格 | ||
- RS庫存編號:
- 855-3054
- 製造零件編號:
- 1989890
- 製造商:
- Phoenix Contact
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- PL
產品詳細資訊
PCB terminal block, nominal current: 2 A, rated voltage (III/2): 250 V, nominal cross section: 0.5 mm², Number of potentials: 17, Number of rows: 1, Number of positions per row: 17, product range: PTSA 0,5, pitch: 2.5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.6 mm, type of packaging: packed in cardboard. Soldering legs in front area, one-rowed
規格
Attribute | Value |
|---|---|
| Number of Contacts | 17 |
| Pitch | 2.5mm |
| Mounting Type | Through Hole |
| Gender | Female |
| Termination Method | Spring Cage |
| Type | PCB Terminal Block |
| Current Rating | 2A |
| Colour | Green |
| Voltage Rating | 250 V |
| Series | PTSA 0.5/17-2.5-F |
| Material | Polyamide |
| Length | 12mm |
| Depth | 13.1mm |
