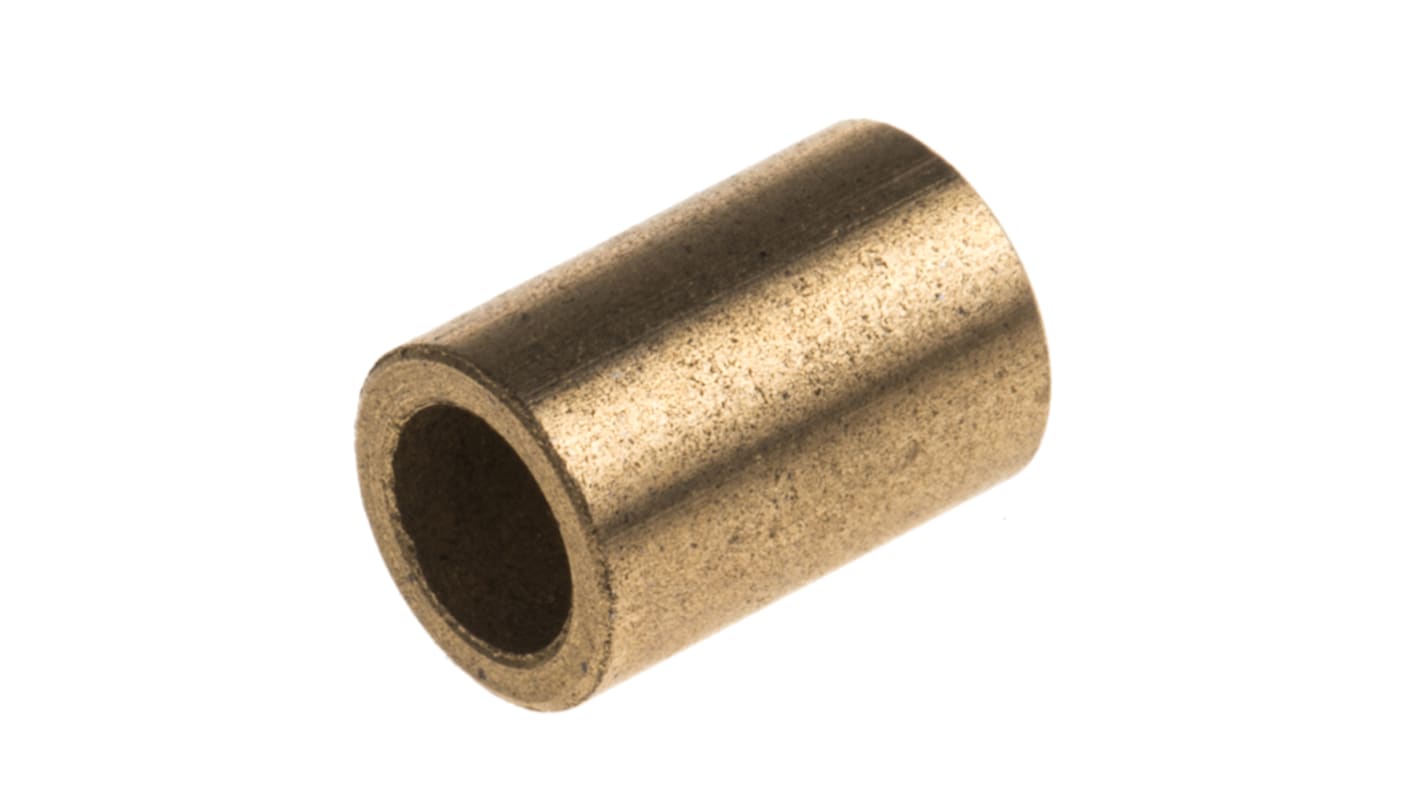

RS PRO Plain Bush, 4mm Shaft Diameter, 6mm Outside Diameter
- RS庫存編號:
- 521-7736
- 製造商:
- RS PRO
25 現貨庫存，可於3工作日發貨。
已增加
單價 毎包：5 个
HK$166.58
| Bag(s) | Per Bag | Per unit* |
| 1 - 5 | HK$166.58 | HK$33.316 |
| 6 - 29 | HK$159.59 | HK$31.918 |
| 30 + | HK$131.35 | HK$26.27 |
| * 參考價格 | ||
- RS庫存編號:
- 521-7736
- 製造商:
- RS PRO
產品概覽和技術數據資料表
法例與合規
不適用
- COO (Country of Origin):
- GB
產品詳細資訊
RS PRO Bronze Plain Bushes
RS PRO’s plain bushes are cylindrical components made from bronze used to support and guide spur gears. Spur gears are a type of cylindrical gear that have straight teeth that run parallel to the axis of rotation and are used to transmit power between two parallel shafts. The primary purpose of a bush is to help the gears rotate smoothly and without excessive friction, while also reducing wear and tear on the gears themselves.
Features and Benefits
- Sintered bronze bush
- Oil-less
- Suitable for use with Delrin gears
Specifications
- Bore tolerance: G7
- OD tolerance: s7
- Length tolerance: js13
RS PRO Bronze Plain Bush Variant – Available Separately
- Length: 7 mm, Shaft dia. 3mm, RS stock no: 521-7708
- Length: 8 mm, Shaft dia. 3mm, RS stock no: 521-7720
- Length: 9 mm, Shaft dia. 4mm, RS stock no: 521-7736
- Length: 12 mm, Shaft dia. 4mm, RS stock no: 521-7742
- Length: 12 mm, Shaft dia. 5mm, RS stock no: 521-7758
- Length: 14 mm, Shaft dia. 5mm, RS stock no: 521-7764
Applications
The bushes are typically installed in the gear housing or gearbox and serve as a bearing surface for the gear teeth, allowing them to rotate without coming into direct contact with the housing.
規格
Attribute | Value |
|---|---|
| Shaft Diameter | 4mm |
| Outside Diameter | 6mm |
| Material | Bronze |
| Length | 9mm |
