Crouzet Millenium 3 Series Logic Module, 24 V dc Supply, Relay Output, 18-Input, Analogue, Digital Input
- RS庫存編號:
- 615-0022
- 製造零件編號:
- 88970031
- 製造商:
- Crouzet
- RS庫存編號:
- 615-0022
- 製造零件編號:
- 88970031
- 製造商:
- Crouzet
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- FR
產品詳細資訊

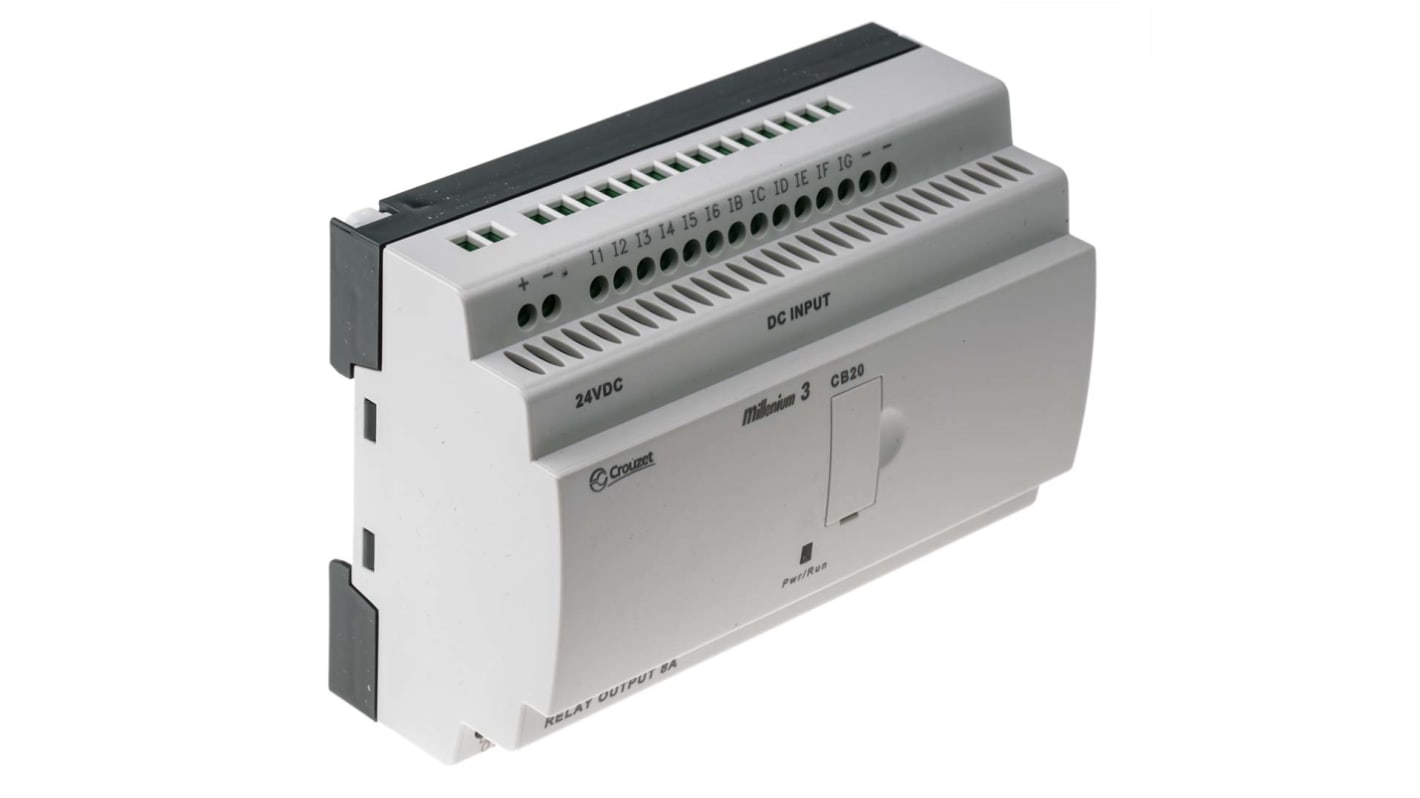

Crouzet Logic module
The Crouzet Millenium 3 series logic module is the latest generation of the Millenium compact version CB20 series with 12 digital (including 4 analogues) inputs and 8 relay outputs of 8A contact current rating. This DIN rail mounting type logic module has a screw termination method. It has a large memory for applications that require a larger space. The logic module has a supply voltage rating of 24VDC.
Crouzet Millenium 3
:
The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:
The Compact Controller has around twice the memory size
The Expandable Controller has around four times the memory size
10-bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)
18 character (formerly 12), 4 line display with scrolling text and bar graph functionality
Choice of ladder or function block programming
Crouzet Millenium 3
:
The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:
The Compact Controller has around twice the memory size
The Expandable Controller has around four times the memory size
10-bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)
18 character (formerly 12), 4 line display with scrolling text and bar graph functionality
Choice of ladder or function block programming
Features and Benefits
Efficient and economical version, without display or keys setting
Operating temperature ranges between -20°C and 55°C
Battery backup
Analogue inputs 0-10 VDC, Potentiometer (0-20 mA/Pt100 with converters)
Choice of ladder or function block programming
Serial and USB port communication
Protects program
Selective configuration
Memory back-up using EEPROM
ESD protected
Expandable controller
Memory size is 368bits / 200 words
Operating temperature ranges between -20°C and 55°C
Battery backup
Analogue inputs 0-10 VDC, Potentiometer (0-20 mA/Pt100 with converters)
Choice of ladder or function block programming
Serial and USB port communication
Protects program
Selective configuration
Memory back-up using EEPROM
ESD protected
Expandable controller
Memory size is 368bits / 200 words
Applications
Automatic washing equipment
Agricultural machinery
Managing air conditioning
Heating systems
Agricultural machinery
Managing air conditioning
Heating systems
規格
Attribute | Value |
---|---|
Manufacturer Series | Millenium 3 |
Number of Inputs | 18 |
Output Type | Relay |
Supply Voltage | 24 V dc |
Input Type | Analogue, Digital |
Number of Outputs | 8 |
Maximum Operating Temperature | +55°C |
Output Current | 8 A |
Mounting Type | DIN Rail |
Minimum Operating Temperature | -20°C |
Number of Communication Ports | 2 |
Communication Port Type | Serial, USB |
