- RS庫存編號:
- 373-7727
- 製造零件編號:
- FNA5023TA0120
- 製造商:
- Rose+Krieger
- RS庫存編號:
- 373-7727
- 製造零件編號:
- FNA5023TA0120
- 製造商:
- Rose+Krieger
產品概覽和技術數據資料表
法例與合規
不適用
- COO (Country of Origin):
- DE
產品詳細資訊

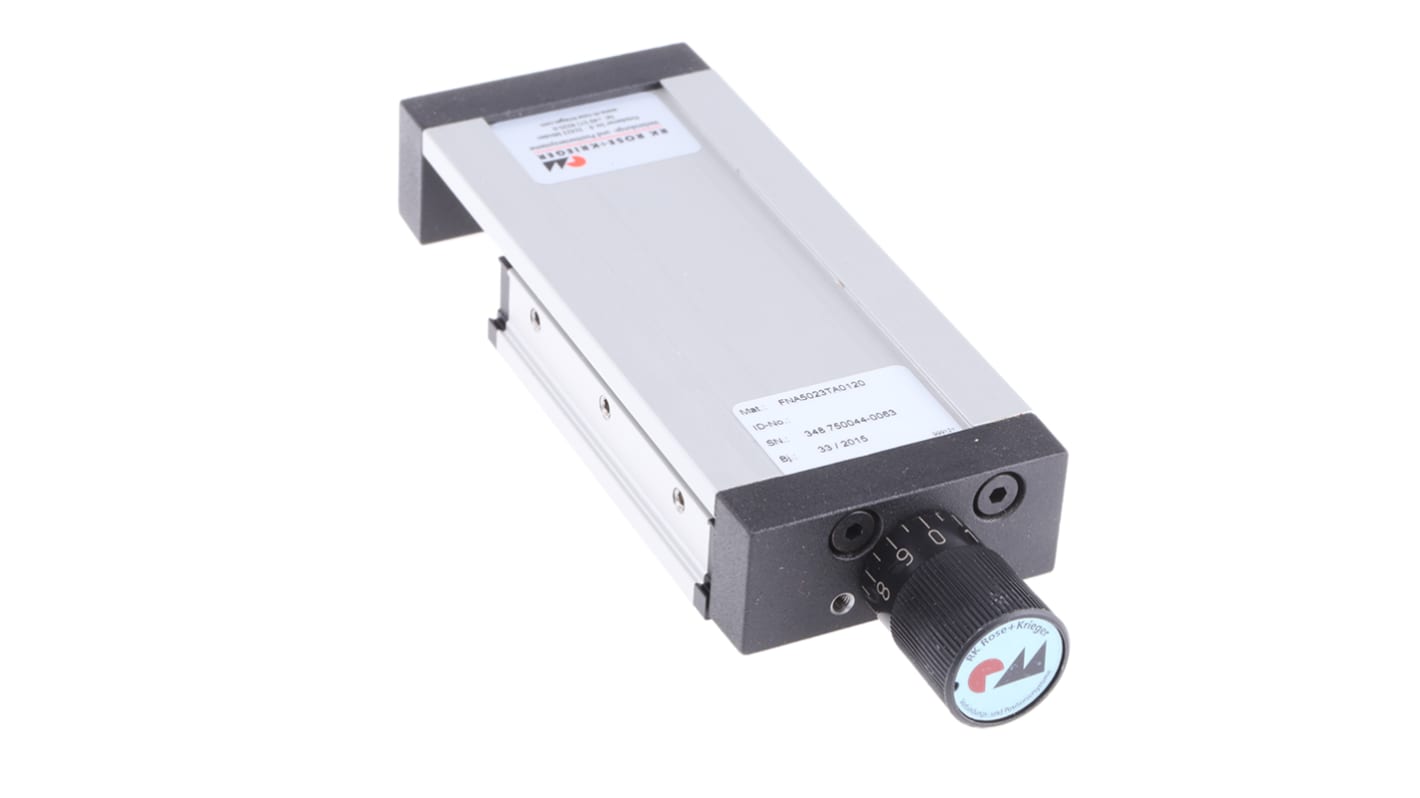

Positioning Carriage
Aluminium guide rail extrusion and carriage
High guidance accuracy
Vernier fine adjustment knob
Positioning accuracy with threaded spindle ±0.1mm
Self-locking threaded spindle
All sizes can be easily combined together and/or with the next smaller or larger positioning carriage with the aid of optional accessories
High guidance accuracy
Vernier fine adjustment knob
Positioning accuracy with threaded spindle ±0.1mm
Self-locking threaded spindle
All sizes can be easily combined together and/or with the next smaller or larger positioning carriage with the aid of optional accessories
規格
Attribute | Value |
---|---|
Stroke Length | 25mm |
Overall Length | 142.5mm |
Static Load Rating | 125N |
Carriage Length | 50mm |
Positioning Table Type | Positioning Table |
Carriage Width | 75mm |
