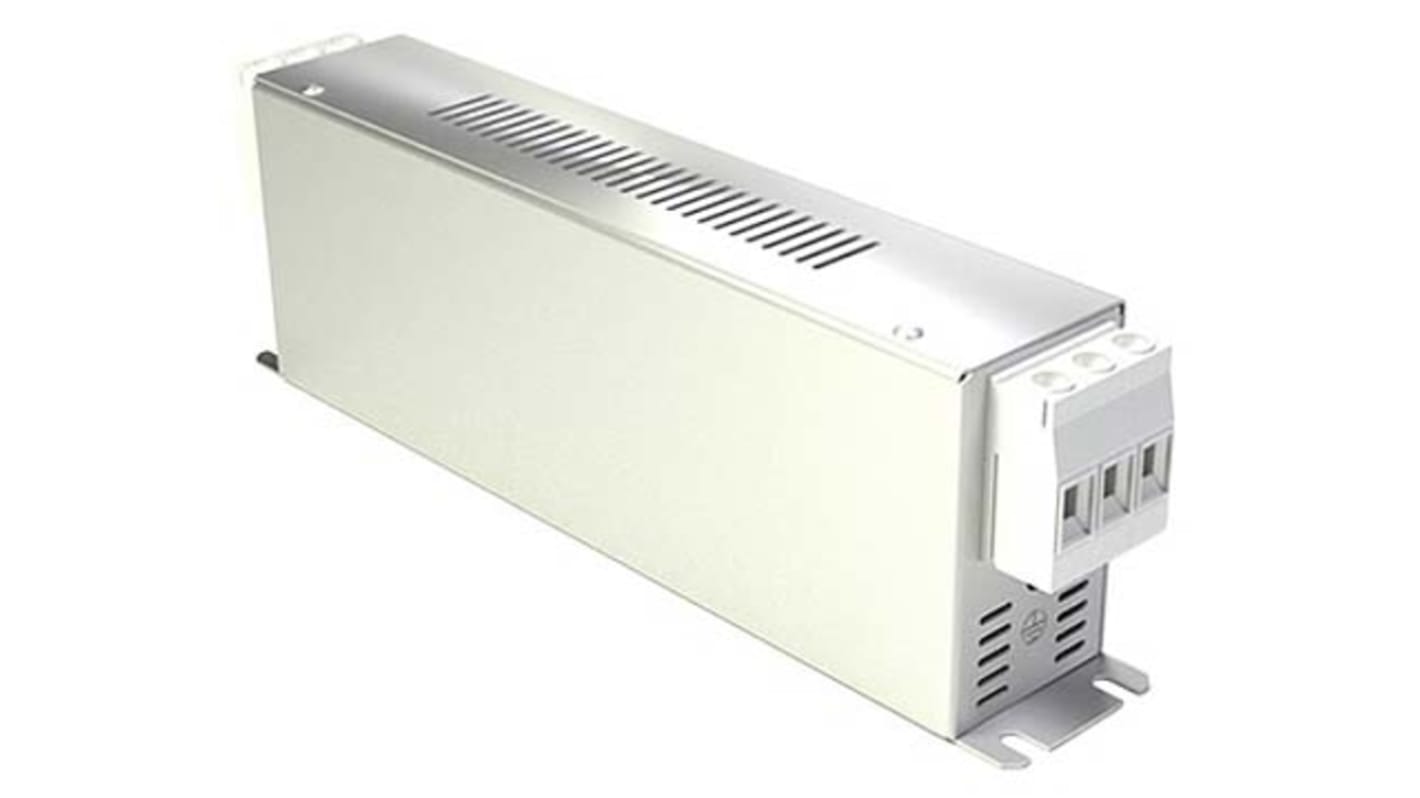

KEMET, FLLD3 130A 530/305 V ac 50 → 60Hz, Chassis Mount EMC Filter, Terminal Block 3 Phase

RS庫存編號:: 136-8841
製造零件編號:: FLLD3130AMHT6
製造商:: KEMET

KEMET, FLLD3 130A 530/305 V ac 50 → 60Hz, Chassis Mount EMC Filter, Terminal Block 3 Phase

當前暫無庫存，可於2024/9/6發貨，3 工作日送達。

HK$3,459.52

單位	Per unit
1 - 4	HK$3,459.52
5 +	HK$3,390.33

RS庫存編號:: 136-8841
製造零件編號:: FLLD3130AMHT6
製造商:: KEMET

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

KEMET FLLD3-MH 3 -Phase EMC Filters

KEMET FLLD-MH series 3 phase filters are compact and slim, are general purpose. These EMC filters feature terminal blocks for easy and quick installation in industrial equipment. They also have high insertion loss charecteristics. Rated Voltage 530/305 V ac,, Temperature Range −25°C to 100°C.

Applications

Switch mode power supplies
Servo drives
Robotics
Battery Chargers
Inverters and Convertors
Process automation
Industrial applications

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

規格

Attribute	Value
Maximum Current Rating	130A
Maximum Voltage Rating	530/305 V ac
Mounting Type	Chassis Mount
Termination Style	Terminal Block
Number of Phases	3
Series	FLLD3
Operating Frequency	50 → 60Hz
Length	270mm
Depth	90mm
Height	150mm
Dimensions	270 x 90 x 150mm
Leakage Current	4.7 mA
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+100°C
Power Loss	40W
