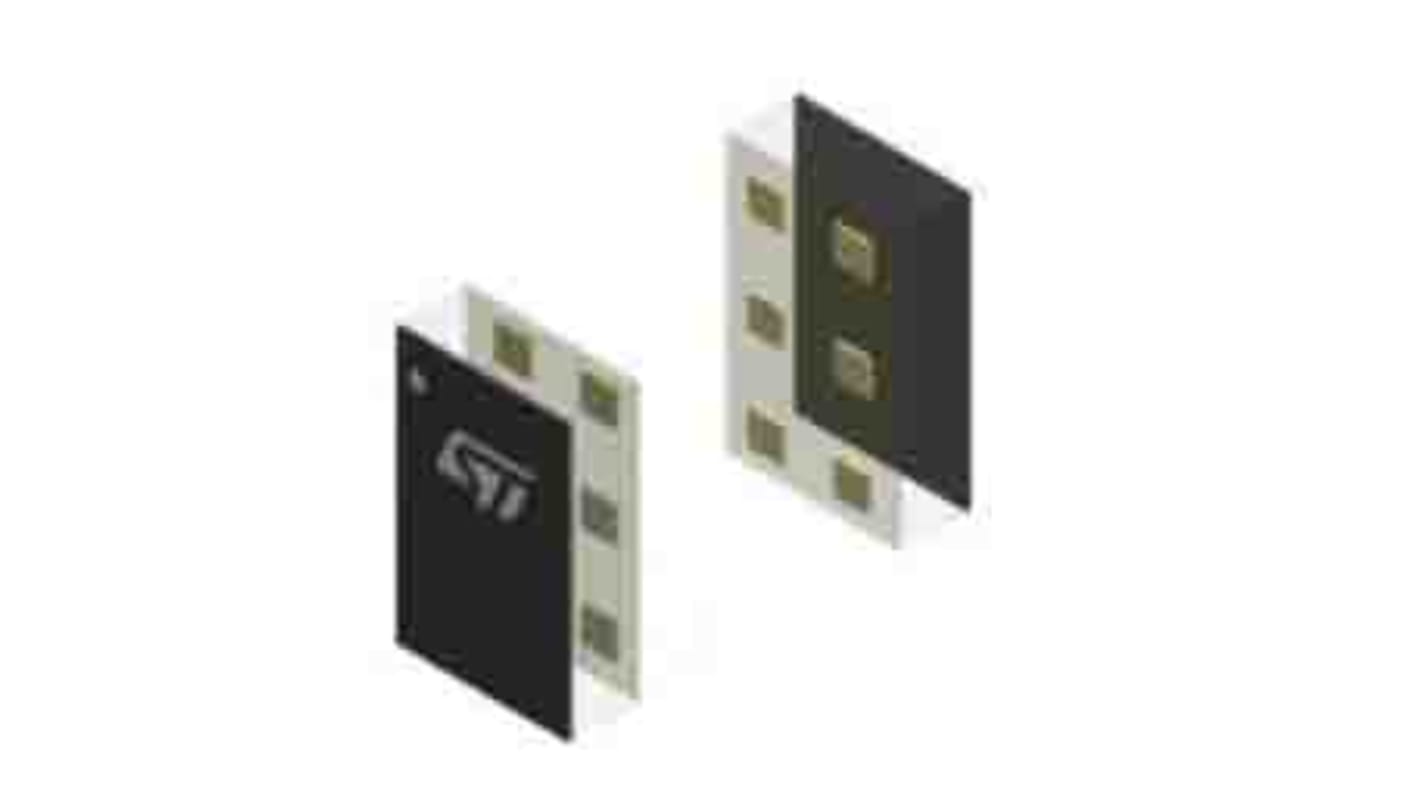

STMicroelectronics, STM32WB 200 V 2.4GHz Harmonic Filter
- RS庫存編號:
- 213-3379P
- 製造零件編號:
- MLPF-WB-01E3
- 製造商:
- STMicroelectronics
4350 現貨庫存，可於3工作日發貨。
已增加
單價 个 (以每卷裝提供) Quantities below 150 on continuous strip
HK$2.408
| 單位 | Per unit |
| 1250 - 2450 | HK$2.408 |
| 2500 + | HK$2.372 |
- RS庫存編號:
- 213-3379P
- 製造零件編號:
- MLPF-WB-01E3
- 製造商:
- STMicroelectronics
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
The STMicroelectronics MLPF-WB integrates an impedance matching network and harmonics filter. The matching impedance network has been tailored to maximize the RF performance of STM32WB. This device uses STMicroelectronics IPD technology on non-conductive glass substrate which optimizes RF performance. It is 2.4 GHz low pass filter matched to STM32WB55Cx/Rx, STM32WB50Cx, STM32WB35Cx and STM32WB30Cx
Integrated impedance matching to STM32WB55Cx/Rx, STM32WB50Cx, STM32WB35Cx and STM32WB30Cx
LGA footprint compatible
50 Ω nominal impedance on antenna side
Deep rejection harmonics filter
Low insertion loss
Small footprint
Low thickness ≤ 450 μm
High RF performance
RF BOM and area reduction
ECOPACK2 compliant
LGA footprint compatible
50 Ω nominal impedance on antenna side
Deep rejection harmonics filter
Low insertion loss
Small footprint
Low thickness ≤ 450 μm
High RF performance
RF BOM and area reduction
ECOPACK2 compliant
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
Attribute | Value |
|---|---|
| Maximum Voltage Rating | 200 V |
| Series | STM32WB |
| Operating Frequency | 2.4GHz |
