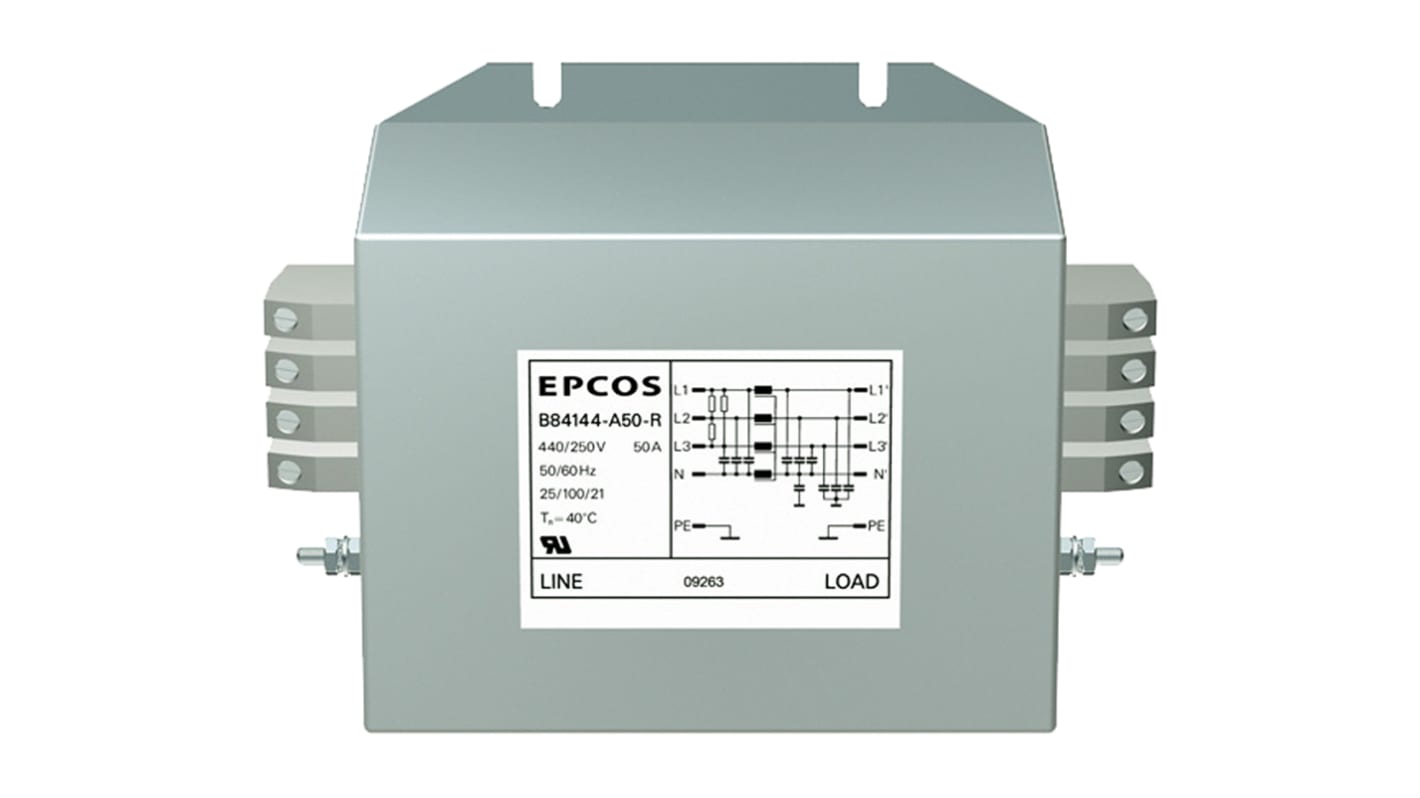

EPCOS, B84144A*R000 36A 440 V ac 50 → 60Hz, Flange Mount EMC Filter, Tab 3 Phase
- RS庫存編號:
- 216-0485
- 製造零件編號:
- B84144A0036R000
- 製造商:
- EPCOS
- RS庫存編號:
- 216-0485
- 製造零件編號:
- B84144A0036R000
- 製造商:
- EPCOS
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
B84144-A Series
EPCOS B84144-A series RFI four line filters. Construced of a metal case with threaded bushes at end faces for RF- Tight installation. Fasy to install and has a space saving design. Optimized leakage, High insertion loss. Rated voltage VR: 440/250 V AC.Rated current IR: 16 A to 180 A. For converters and power electronics.
Applications
General applications for power electronics
Wind farms
UPS
For machine tools, textile and packaging machines
Wind farms
UPS
For machine tools, textile and packaging machines
Standards
UL1283, CSA 22.2 No.8 1986
規格
Attribute | Value |
|---|---|
| Maximum Current Rating | 36A |
| Maximum Voltage Rating | 440 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Tab |
| Number of Phases | 3 |
| Number of Stages | Single Stage |
| Series | B84144A*R000 |
| Operating Frequency | 50 → 60Hz |
| Length | 156mm |
| Depth | 216mm |
| Height | 91mm |
| Dimensions | 156 x 216 x 91mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 4.1 mA |
| Maximum Operating Temperature | +100°C |
| Resistance | 3.5mΩ |
| Standards Met | UL 1283 |
