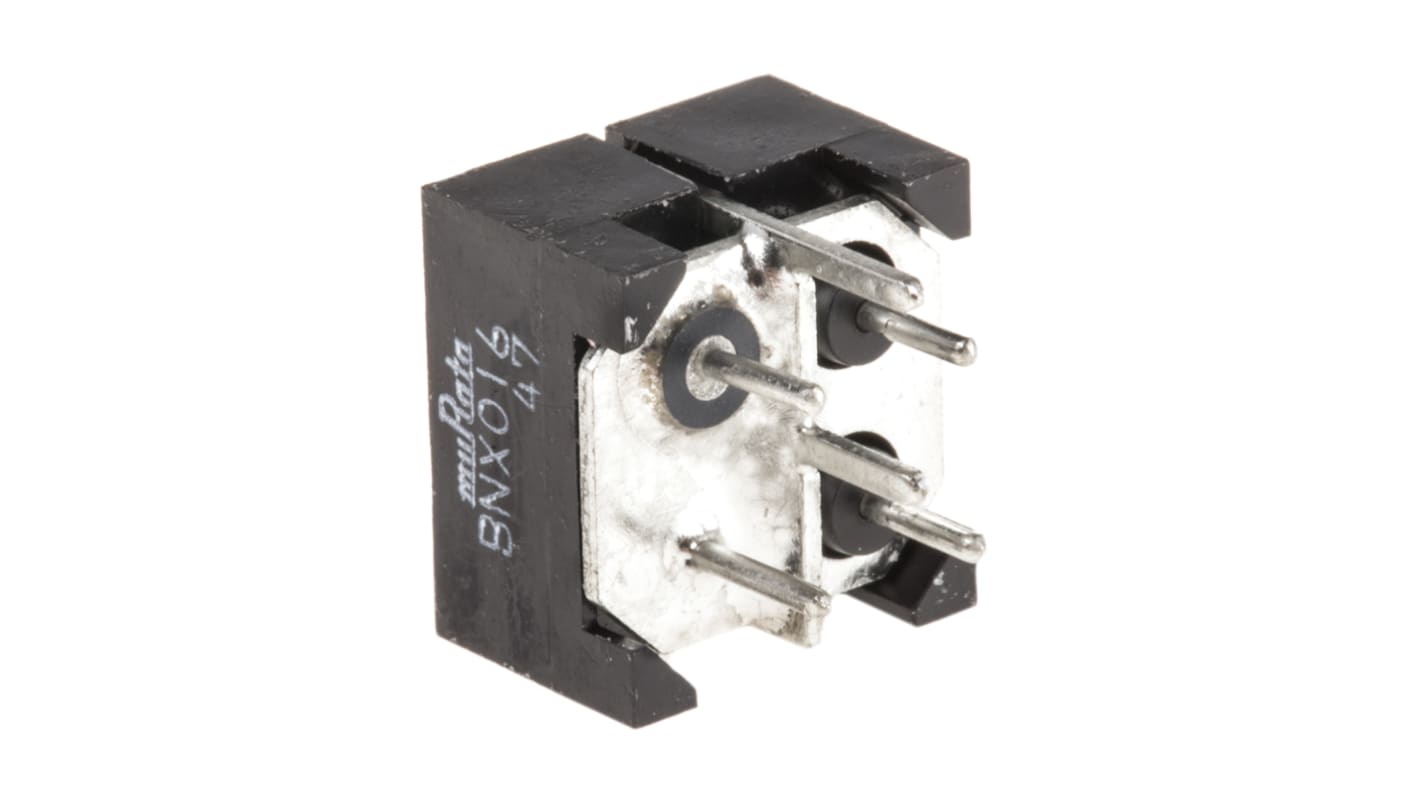

Murata, BNX 15A 25 V dc 100 kHz → 1GHz, Through Hole EMI Filter, Pin
- RS庫存編號:
- 724-1649
- 製造零件編號:
- BNX016-01
- 製造商:
- Murata
56 現貨庫存，可於3工作日發貨。
已增加
單價 个
HK$29.98
| 單位 | Per unit |
| 1 - 99 | HK$29.98 |
| 100 - 199 | HK$28.77 |
| 200 - 499 | HK$27.57 |
| 500 + | HK$26.97 |
- RS庫存編號:
- 724-1649
- 製造零件編號:
- BNX016-01
- 製造商:
- Murata
法例與合規
- COO (Country of Origin):
- JP
產品詳細資訊
BNX 01 Filters Series
Block type "EMIFIL" BNX series filters incorporating a through-type a capacitor, monolithic chip capacitors and bead. The BNX Series high performance filter is for use in DC power circuits.
Features & Benefits
Excellent noise suppression
Wide frequency range
High insertion loss
High current
No connection routes in the current circuits ensure high reliability and high performance
Effective for impulse noise such as spike noise or electrostatic discharge
Wide frequency range
High insertion loss
High current
No connection routes in the current circuits ensure high reliability and high performance
Effective for impulse noise such as spike noise or electrostatic discharge
Product Application Information
Murata BNX power line filters are optimised for use in DC power circuits. Suitable applications for BNX 01 filters include PC peripherals, amusement equipment, LCD-TV and PDP displays, digital AV equipment and industry equipment.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
Attribute | Value |
|---|---|
| Maximum Current Rating | 15A |
| Maximum Voltage Rating | 25 V dc |
| Mounting Type | Through Hole |
| Termination Style | Pin |
| Series | BNX |
| Operating Frequency | 100 kHz → 1GHz |
| Length | 12mm |
| Depth | 11mm |
| Height | 8mm |
| Dimensions | 12 x 11 x 8mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
| Resistance | 50mΩ |
