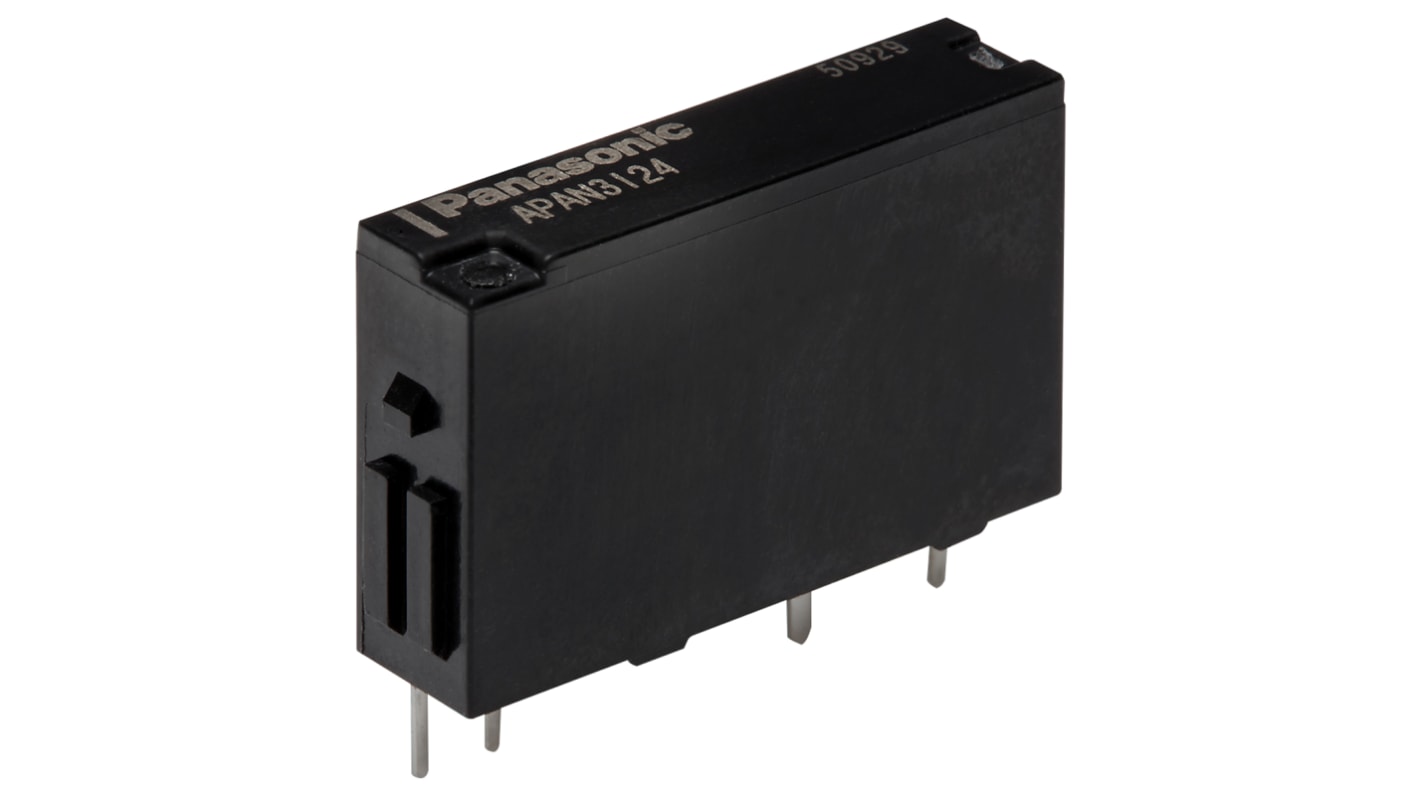

    Panasonic PCB Mount Power Relay, 5V dc Coil, 5A Switching Current, SPST

    查看所有Power Relays
    可享批量折扣

    小計（1 件）**

    HK$37.80

    Add to Basket
    選擇或輸入數量
    65 現貨庫存，可於3工作日發貨。*

    * 交貨日期可能會根據您選擇的數量和交貨地址而變更。

    即時庫存查詢
    單位
    每單位
    1 - 6HK$37.80
    7 - 12HK$36.70
    13 +HK$35.60

    ** 參考價格

    RS庫存編號:
    134-7945
    製造零件編號:
    APAN3105
    製造商:
    Panasonic
    透過選取一個或多個屬性來查找類似產品。
    選取全部

    品牌

    Panasonic

    Coil Voltage

    5V dc

    Contact Configuration

    SPST

    Mounting Type

    PCB Mount

    Switching Current

    5A

    Number of Poles

    1

    Latching

    No

    Terminal Type

    PCB Pin

    Maximum Switching Voltage AC

    250V

    Maximum Switching Voltage DC

    110V dc

    Length

    20mm

    Coil Resistance

    227Ω

    Coil Power

    110mW

    Standards Met

    cULus, IEC 61010, TUV

    Contact Material

    Gold Plated

    Depth

    5mm

    Life

    Minimum of 20000000 (Mechanical) operations, Minimum of 50000 (Electrical) operations

    Isolation Coil To Contact

    3kVrms

    Minimum Operating Temperature

    -40°C

    Height

    12.5mm

    Maximum Operating Temperature

    +90°C

    Maximum Switching Power DC

    150 W

    Maximum Switching Power AC

    1.25 kVA
