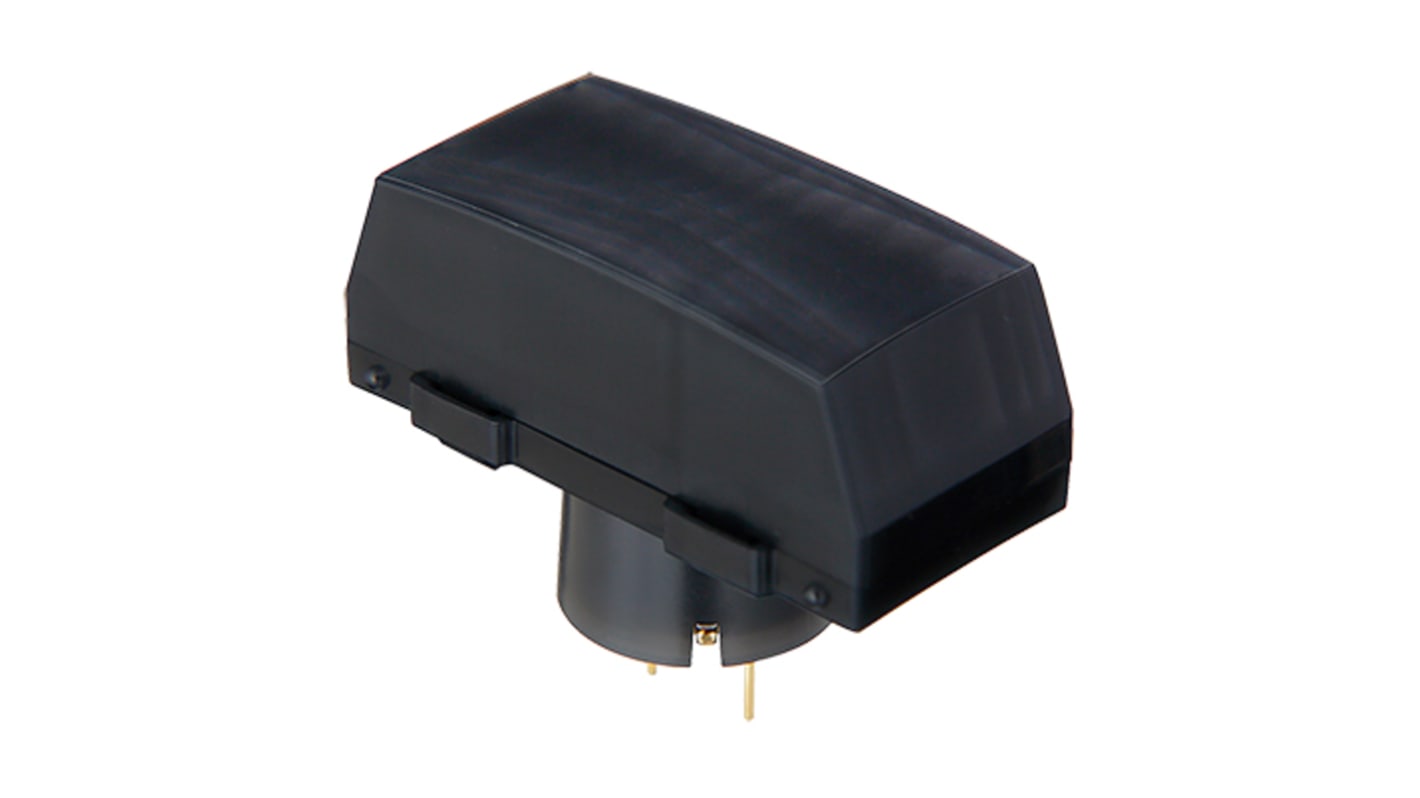

EKMB1105112 Panasonic, EKMB1 PIR Sensor Pyroelectric Infrared Sensor, 5m 3-Pin

  • RS庫存編號 161-2227
  • 製造零件編號 EKMB1105112
  • 製造商 Panasonic
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): JP
產品詳細資訊

Low current consumption for battery-driven applications.
A special differential input circuit design is introduced for the EKMB 6μA type for applications where a high noise resistance is required (up to GHz range)
Line up with Horizontally wide detection type

規格
Attribute Value
Sensor Type Pyroelectric Infrared Sensor
Maximum Output Current 100µA
Sensing Distance 5m
Switching Mode Digital
Output Type Digital
Mounting Type Through Hole
Pin Count 3
Maximum Supply Current 1 μA
Dimensions 26 x 13.3 x 16.6mm
Height 16.6mm
Length 26mm
Minimum Operating Supply Voltage 2.3 V dc
Width 13.3mm
Maximum Operating Supply Voltage 4 V dc
Maximum Operating Temperature 60 °C
Series EKMB1
Minimum Operating Temperature -20 °C
45 現貨庫存,可於3工作日發貨。
單價 個
HK$ 195.44
(不含稅)
單位
Per unit
1 - 4
HK$195.44
5 - 9
HK$177.67
10 - 24
HK$162.84
25 +
HK$150.32
