產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- DE
產品詳細資訊

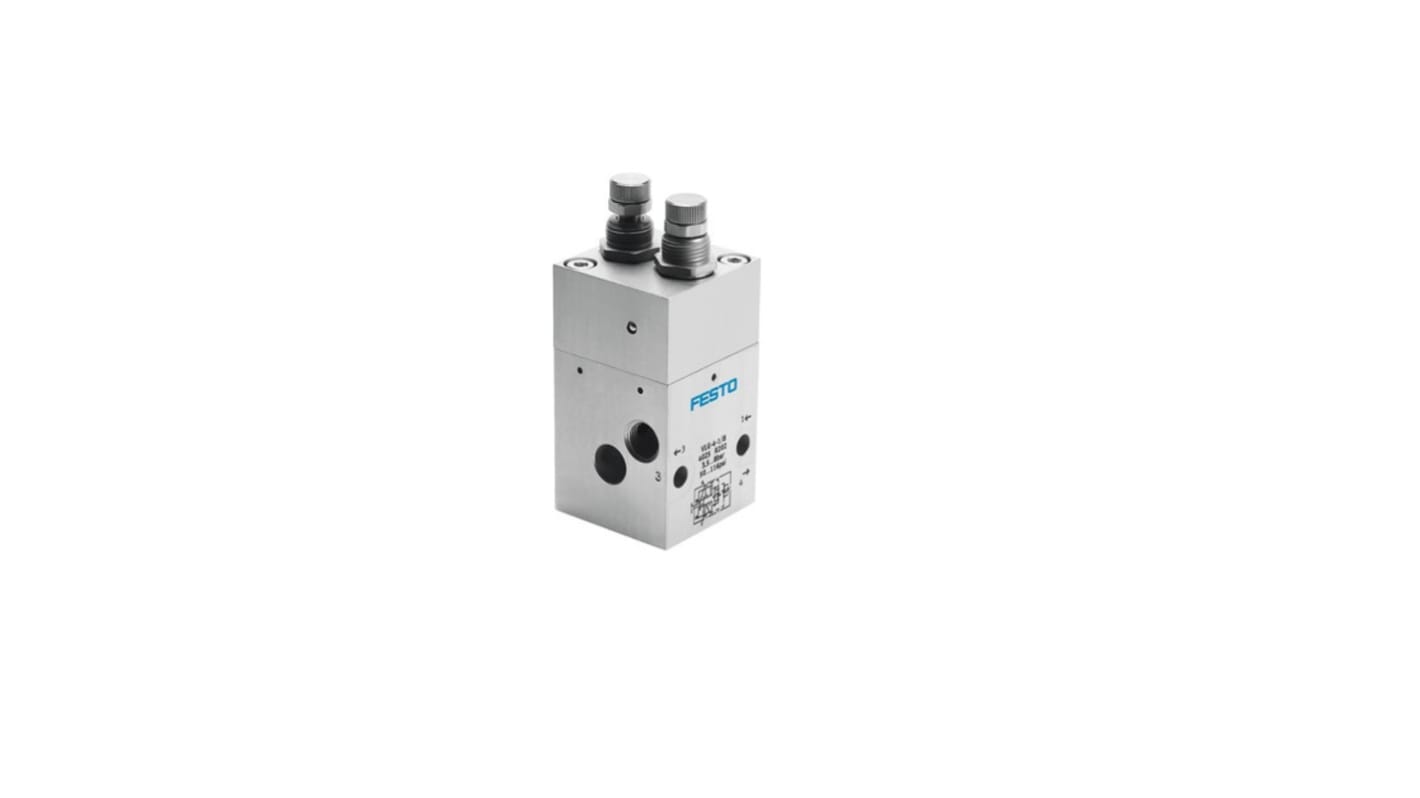

Festo Pulse Generator, 50Hz Frequency - VLG-4-1/4
This Festo pulse generator uses a variable oscillator to create adjustable duration signals in industrial control operations. Both the duration and frequency of the unit's signal can be independently adjusted. This makes it a versatile choice that's useful in pneumatic systems requiring rapid vibrating motion. The generator features a poppet valve for a higher flow rate and is easy to mount using the through-holes in the housing.
• Operating pressure range of 4 to 10 bar allows for effective operation in pressurised environments
• Offers optimal functionality in temperatures ranging from -10°C to +60°C
• Standard connection size of 1/4G for easy fitting
• Maximum and minimum frequency of 50Hz
• Nominal flow rate of 600L/min for reliable industrial use
• Offers optimal functionality in temperatures ranging from -10°C to +60°C
• Standard connection size of 1/4G for easy fitting
• Maximum and minimum frequency of 50Hz
• Nominal flow rate of 600L/min for reliable industrial use
Applications
• Conveyor systems
• Food processing
• Pharmaceutical manufacturing
• Food processing
• Pharmaceutical manufacturing
How does a poppet valve work?
A poppet valve like this one uses a ball and seat to control the direction and timing of flow in a pneumatic system. It combines the function of a check valve and the versatility of a directional valve. This means it's an efficient solution, with reliable response times and low maintenance requirements.
規格
Attribute | Value |
---|---|
Maximum Frequency | 50Hz |
Minimum Frequency | 50 Hz |
Dimensions | 36 x 36 x 91mm |
Height | 91mm |
Model Number p | 4026 |
Length | 36mm |
Width | 36mm |
