Schneider Electric Harmony XB4 Series Orange Illuminated Spring Return Push Button Head, 22mm Cutout, IP66, IP67, IP69K
- RS庫存編號:
- 331-0085
- 製造零件編號:
- ZB4BW35
- 製造商:
- Schneider Electric
- RS庫存編號:
- 331-0085
- 製造零件編號:
- ZB4BW35
- 製造商:
- Schneider Electric
法例與合規
不適用
- COO (Country of Origin):
- CZ
產品詳細資訊

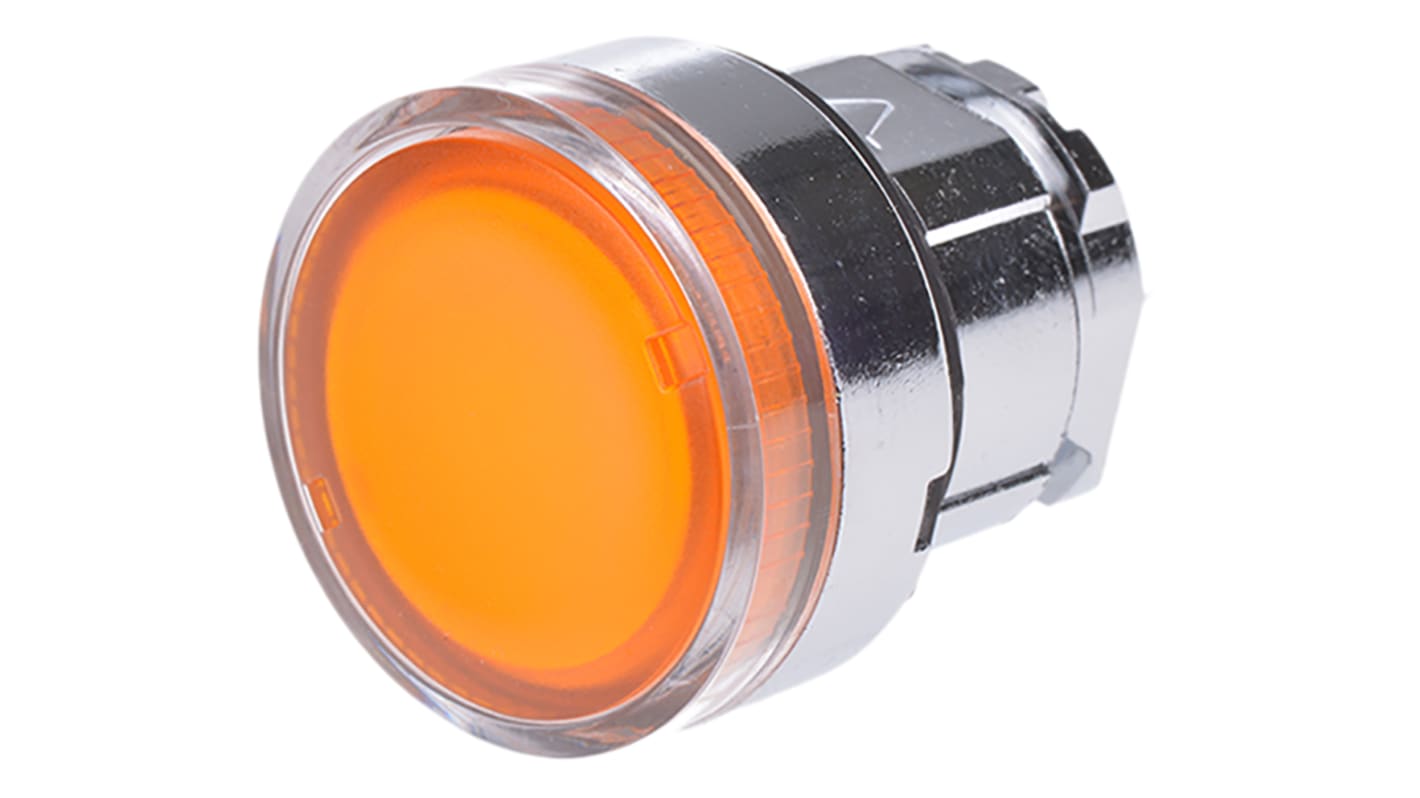

Illuminated Push Button Head, Spring Return, for use with BA9s Lamps, ZB4-B
All heads require fixing collar/lamp holder/contact assembly typical stock no. 330-9760, plus a BA(s lamp of choice (neon, LED or incandescent to 2.4W max)
Cannot be used with integral LED light blocks
Cannot be used with integral LED light blocks
Schneider Electric Push Button Head, Spring Return Actuation Type, 28.5mm Button Diameter - Harmony XB4 Series - ZB4BW35
Make light work of industrial controls with this illuminated push button head from Schneider Electric. It provides a clear visual signal, even at a distance, to let machine operators know a process needs some attention. Thanks to a wide operating temperature range of -40°C to +70°C, this hardy component works well in demanding conditions. The robust chromium-plated metal bezel can stand up to the knocks and bumps of heavy-duty use, making this a dependable choice for a tough working environment.
Features & Benefits
• IP69K rating means it's waterproof against high-temperature, high-pressure jets from all directions
• Easy-to-use screw clamp terminals keep your electrical connection secure in a high-vibration setting
• Standardised 22mm mounting diameter is widely compatible for easy integration into your equipment
• Light 27g weight minimises strain on your panel
• Easy-to-use screw clamp terminals keep your electrical connection secure in a high-vibration setting
• Standardised 22mm mounting diameter is widely compatible for easy integration into your equipment
• Light 27g weight minimises strain on your panel
Applications
• Safety gates and enclosures
• Construction sites
• Medical technology
• Construction sites
• Medical technology
How long will this push button head last?
Thanks to a hefty mechanical lifespan of 10 million cycles, you can expect reliable performance from this hard-working device for years to come.
規格
Attribute | Value |
---|---|
Series | Harmony XB4 |
Cutout Diameter | 22mm |
Push Button Colour | Orange |
Push Button Actuation | Spring Return |
Push Button Style | Round |
Push Button Material | Metal |
IP Rating | IP66, IP67, IP69K |
Push Button Diameter | 28.5mm |
Better World Verification | Green Premium |
Better World Product | Yes |
Illuminated | Yes |
Maximum Operating Temperature | +70°C |
Mounting Type | Panel Mount |
Minimum Operating Temperature | -40°C |
Terminal Type | Screw Clamp |
