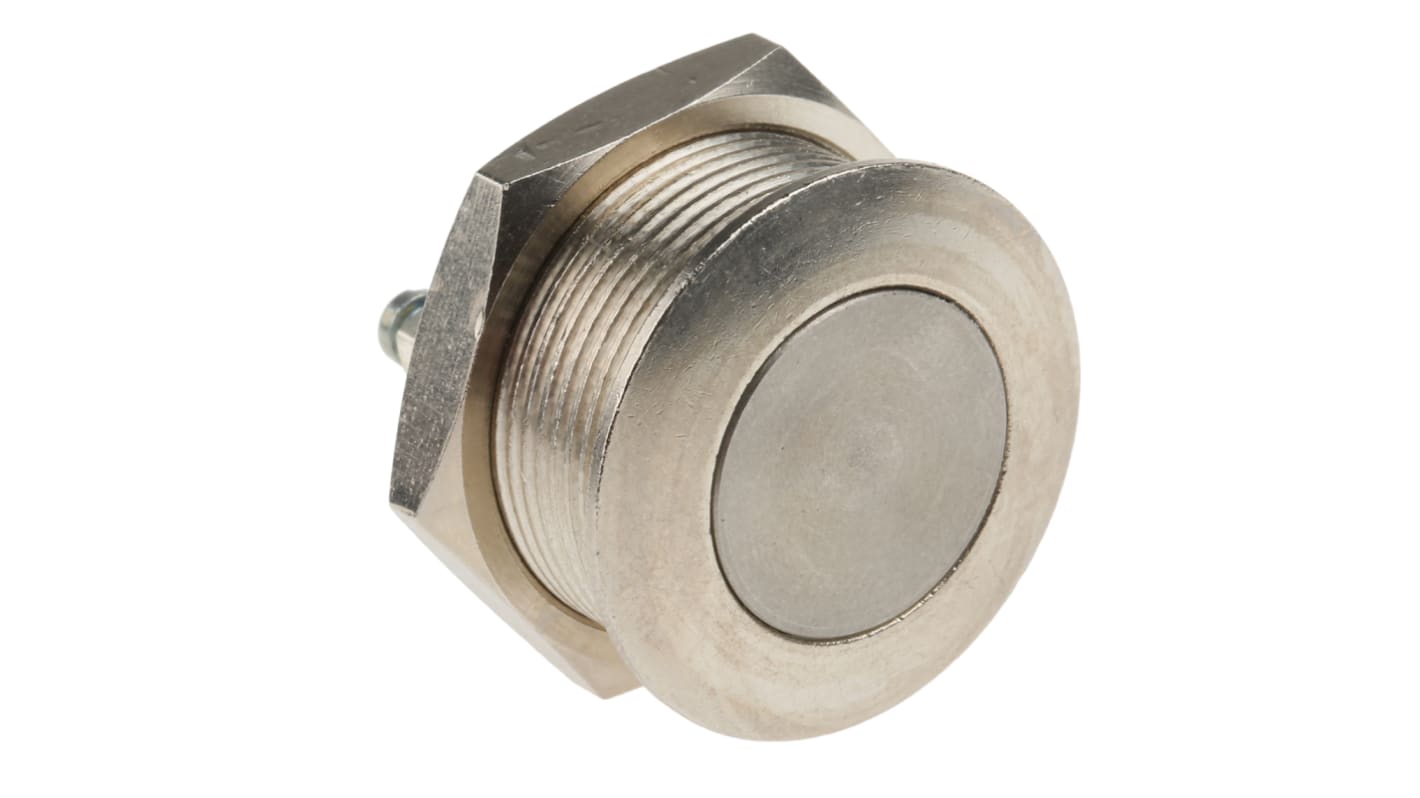

APEM Push Button Switch, Momentary, Panel Mount, 22.2mm Cutout, SPST, 24/48V dc

RS庫存編號:: 179-0899
製造零件編號:: AV031003C910
製造商:: APEM

APEM Push Button Switch, Momentary, Panel Mount, 22.2mm Cutout, SPST, 24/48V dc

310 現貨庫存，可於3工作日發貨。

HK$439.01

單位	Per unit
1 - 9	HK$439.01
10 - 49	HK$425.83
50 - 99	HK$412.64
100 - 249	HK$403.88
250 +	HK$395.10

RS庫存編號:: 179-0899
製造零件編號:: AV031003C910
製造商:: APEM

產品概覽和技術數據資料表

法例與合規

COO (Country of Origin):: FR

產品詳細資訊

AV Series Security Pushbutton Switches

Brought to you by Apem, this Security Pushbutton Switch features a mechanical stop which protects the contact mechanism and provides a high degree of impact resistance. With a robust Polybutylene housing, nickel plated brass bushings and silver-plated contacts, this AV series security switch is designed for reliability and durability over a long length of service.

Features and Benefits:

• IP54 Environmental Protection
• Momentary switch operation
• Mechanical life of 100000 Cycles

Available in this range:

• Stock No: 278-1133 is a 16mm screw terminal curved push-button switch
• Stock No: 278-1149 is a 16mm screw terminal flat push-button switch
• Stock No: 190-0715 is a 16mm solder terminal flat push-button switch
• Stock No: 179-0906 is a 19mm screw terminal curved push-button switch
• Stock No: 179-0912 is a 19mm screw terminal flat push-button switch
• Stock No: 190-0721 is a 19mm solder terminal illuminated push-button switch (Red)
• Stock No: 174-6381 is a 22mm screw terminal curved push-button switch
• Stock No: 179-0899 is a 22mm screw terminal flat push-button switch

規格

Attribute	Value
Switch Operation	Momentary
Illuminated	No
Panel Cut Out Diameter	22.2mm
Mounting Type	Panel Mount
Push Button Colour	Silver
Contact Configuration	Single Pole Single Throw (SPST)
Voltage Rating	24/48V dc
Push Button Style	Round
Contact Current Rating	2 A @ 48 V dc
Contact Material	Silver Plated Brass
Manufacturer Part No.	AV031003C910
Contact DC Voltage Rating	48V
Terminal Type	Screw
