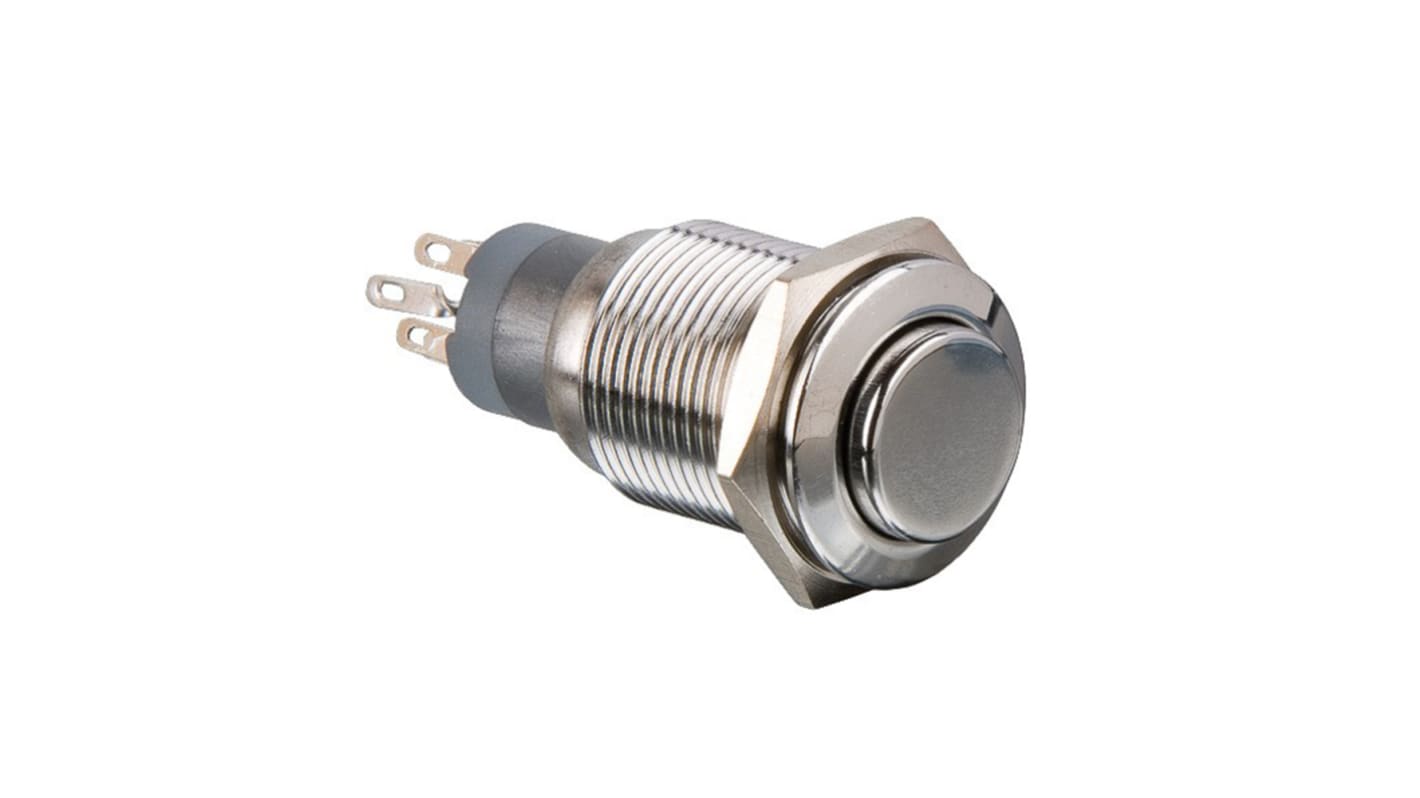

Arcolectric (Bulgin) Ltd Push Button Switch, Momentary, Panel Mount, 16.2mm Cutout, DPDT, 250V ac, IP67
- RS庫存編號:
- 187-3411
- 製造零件編號:
- MP0045/3D0NN000S
- 製造商:
- Arcolectric (Bulgin) Ltd
當前暫無庫存，可於2024/7/15發貨，3 工作日送達。
已增加
單價 个
HK$241.09
| 單位 | Per unit |
| 1 - 9 | HK$241.09 |
| 10 - 19 | HK$235.06 |
| 20 + | HK$231.45 |
- RS庫存編號:
- 187-3411
- 製造零件編號:
- MP0045/3D0NN000S
- 製造商:
- Arcolectric (Bulgin) Ltd
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊
Stainless Steel Double Pole Changeover Switches
16mm diameter
Solder Tag
Polished Stainless Steel body or Anodised versions
Choice of switch action depending on part code:
Part codes containing /1D0 or /3D0 - Momentary action
Part codes containing /1E0 or /3E0 - Latching action
Choice of profile depending on part code prefix:
MP0045/1 Low Profile
MP0045/3 Prominent Button
16mm diameter
Solder Tag
Polished Stainless Steel body or Anodised versions
Choice of switch action depending on part code:
Part codes containing /1D0 or /3D0 - Momentary action
Part codes containing /1E0 or /3E0 - Latching action
Choice of profile depending on part code prefix:
MP0045/1 Low Profile
MP0045/3 Prominent Button
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | No |
| Panel Cut Out Diameter | 16.2mm |
| Mounting Type | Panel Mount |
| Contact Configuration | DPDT |
| Voltage Rating | 250V ac |
| Push Button Style | Round |
| IP Rating | IP67 |
| Contact Current Rating | 1 A |
| Contact Material | Brass |
| Manufacturer Part No. | MP0045/3D0NN000S |
| Contact AC Voltage Rating | 250V |
| Terminal Type | Solder Tag |
