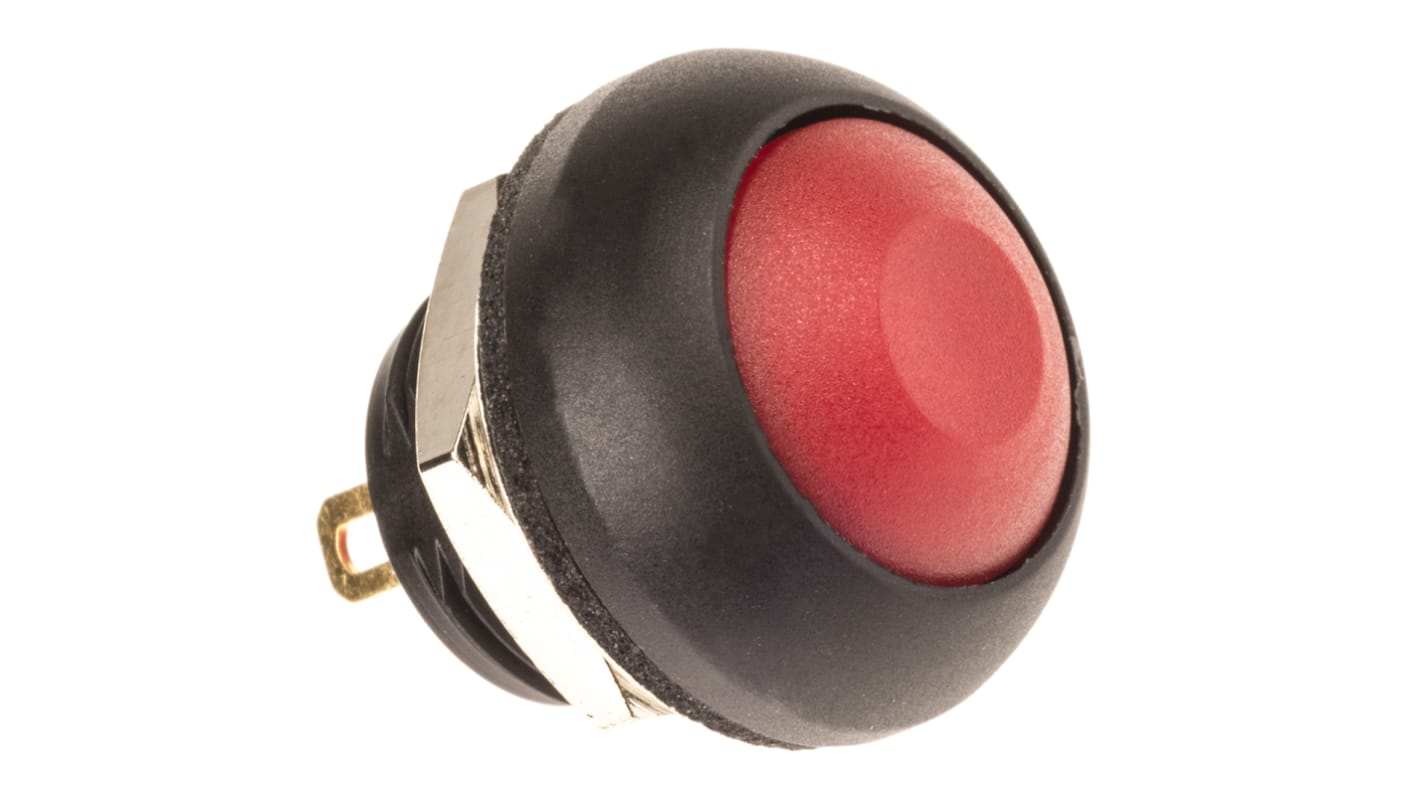

KNITTER-SWITCH Miniature Push Button Switch, Momentary, Panel Mount, 12.9mm Cutout, SPST, IP67
- RS庫存編號:
- 702-3592
- 製造零件編號:
- DPW1CGR
- 製造商:
- KNITTER-SWITCH
139 現貨庫存，可於3工作日發貨。
已增加
單價 个
HK$62.97
| 單位 | Per unit |
| 1 - 9 | HK$62.97 |
| 10 - 49 | HK$61.07 |
| 50 - 99 | HK$59.20 |
| 100 - 249 | HK$57.95 |
| 250 + | HK$56.71 |
- RS庫存編號:
- 702-3592
- 製造零件編號:
- DPW1CGR
- 製造商:
- KNITTER-SWITCH
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊
Miniature Sealed Pushbutton Switches - DPW Series
Waterproof
Thermoplastic case
With or without a superbright LED
Lead-free solderable
Long mechanical life with a minimum of 1000000 cycles
Thermoplastic case
With or without a superbright LED
Lead-free solderable
Long mechanical life with a minimum of 1000000 cycles
Note
LED versions require a resistor to limit LED current to approx 20mA, typically 1,200 Ohms 0.5W, see Stock No 7078233 for 24V operation.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | No |
| Panel Cut Out Diameter | 12.9mm |
| Mounting Type | Panel Mount |
| Push Button Colour | Red |
| Contact Configuration | Single Pole Single Throw (SPST) |
| Push Button Style | Dome |
| IP Rating | IP67 |
| Contact Current Rating | 400 mA @ 32 V ac |
| Contact Material | Gold Plated Silver |
| Case Colour | Black |
| Manufacturer Part No. | DPW1CGR |
| Terminal Type | Solder |
