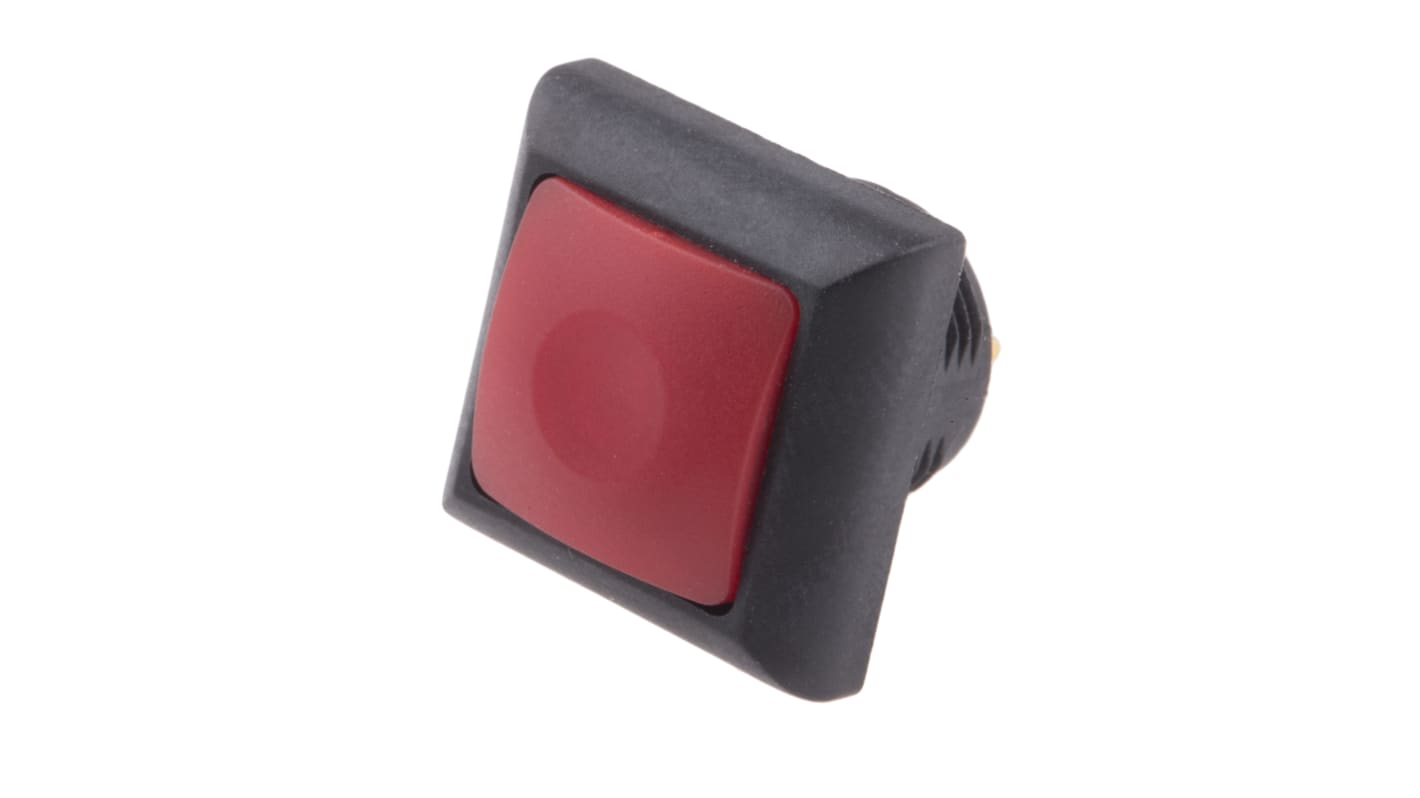

RS PRO Push Button Switch, Momentary, PCB, 13.6mm Cutout, SPST, 30V dc, IP67
- RS庫存編號:
- 820-7568P
- 製造商:
- RS PRO
- RS庫存編號:
- 820-7568P
- 製造商:
- RS PRO
法例與合規
產品詳細資訊
Square Panel Mounting Push Button Switches
Operating force: 2N - 5N
Contact bounce: 10 ms
Mechanical life: 1000000 cycles
Soldering: 350°C maximum for 5 seconds
Contact bounce: 10 ms
Mechanical life: 1000000 cycles
Soldering: 350°C maximum for 5 seconds
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | No |
| Panel Cut Out Diameter | 13.6mm |
| Mounting Type | PCB |
| Push Button Colour | Red |
| Contact Configuration | SPST |
| Voltage Rating | 30V dc |
| Push Button Style | Square |
| IP Rating | IP67 |
| Contact Current Rating | 400 mA @ 32 V ac |
| Contact Material | Gold Over Silver |
| Manufacturer Part No. | PAS6B6M4CES3 |
| Contact AC Voltage Rating | 32 V, 125V |
| Case Colour | Black |
| Contact DC Voltage Rating | 50V |
| Terminal Type | Pc Pin |
