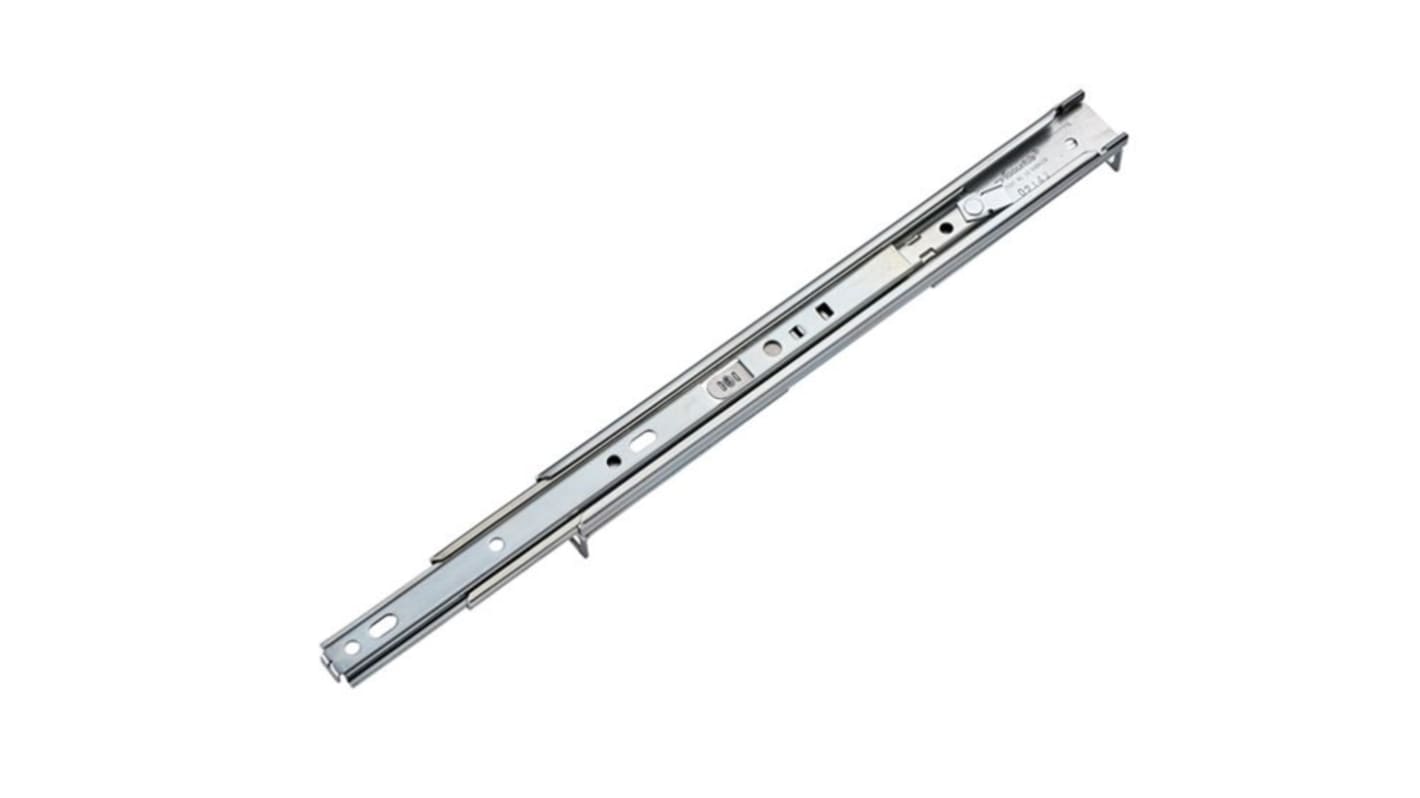

Accuride, 27mm Depth, 1U, 2U, 36kg Max Load
- RS庫存編號:
- 190-4154
- 製造零件編號:
- DZ2807-0020
- 製造商:
- Accuride
- RS庫存編號:
- 190-4154
- 製造零件編號:
- DZ2807-0020
- 製造商:
- Accuride
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊
Load rating up to 45kg
100%+ extension
9.6mm slide thickness
Lock-out
Front disconnect
Enclosure mounting brackets attached
Enhanced friction movement
Low profile for 1U and 2U applications
100%+ extension
9.6mm slide thickness
Lock-out
Front disconnect
Enclosure mounting brackets attached
Enhanced friction movement
Low profile for 1U and 2U applications
規格
Attribute | Value |
|---|---|
| Type | Telescopic Slide |
| Maximum Load | 36kg |
| Depth | 27mm |
| Width | 1067mm |
| Height | 17mm |
| Slide Length Closed | 508mm |
| Lockout | Yes |
| Series | DZ2807 |
