DFRobot Arduino Shield for Raspberry Pi
- RS庫存編號:
- 124-4692
- 製造零件編號:
- DFR0327
- 製造商:
- DFRobot
- RS庫存編號:
- 124-4692
- 製造零件編號:
- DFR0327
- 製造商:
- DFRobot
法例與合規
產品詳細資訊

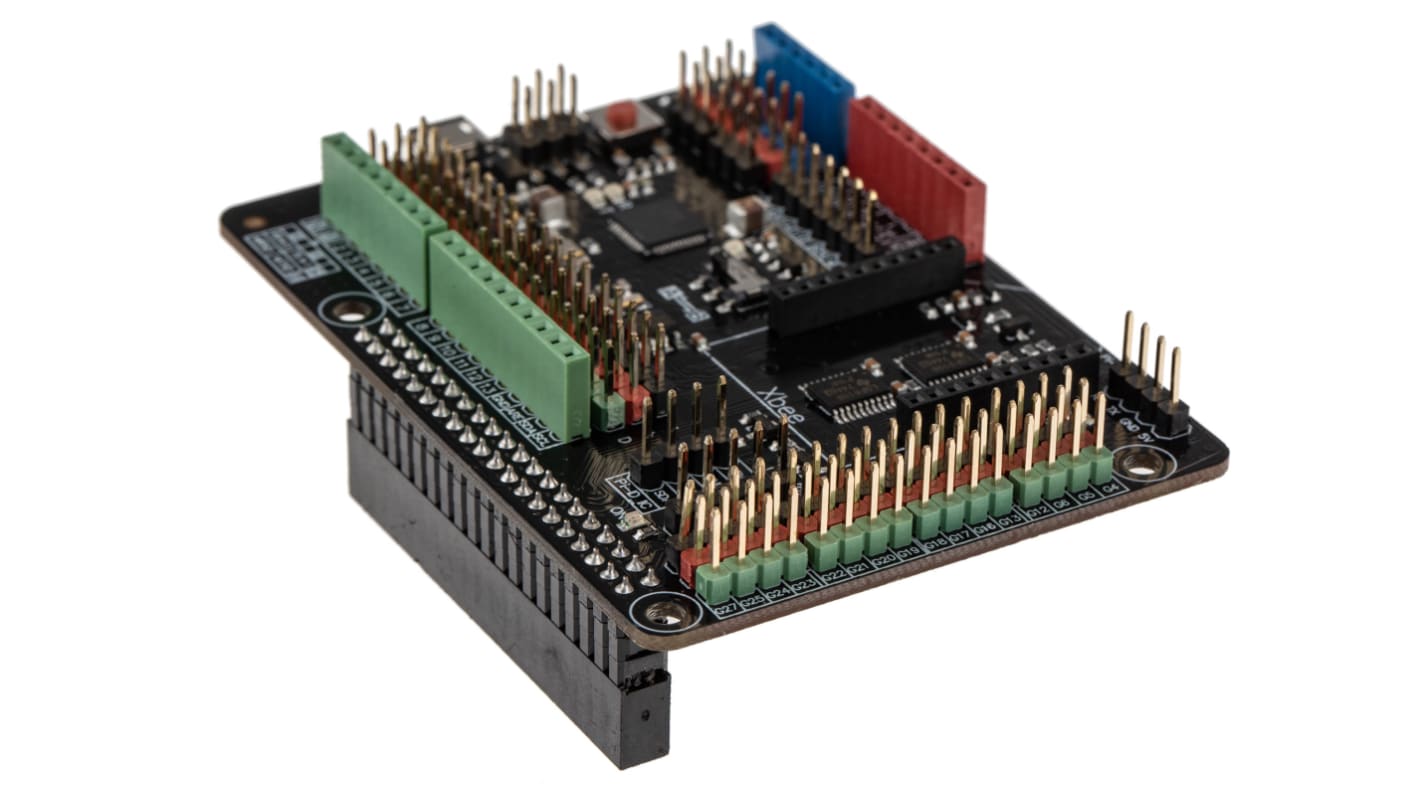

DFRobot Arduino Shield for Raspberry Pi
This shield board from DFRobot is designed to combine your Raspberry Pi computer board with an Arduino board.
Why combine a Raspberry Pi with an Arduino?
The combination of a high-performance computer board, and a microcontroller board with fast responses, offers a powerful core for your project. A Raspberry Pi and Arduino cluster opens up many more opportunities for your creativity and designs.
An example is in robotics. The Raspberry Pi board can control certain aspects wireless communications and complex algorithms. It can even provide functionality for a touchscreen interface. The Arduino then provides fast responses and obstacle avoidance.
Why combine a Raspberry Pi with an Arduino?
The combination of a high-performance computer board, and a microcontroller board with fast responses, offers a powerful core for your project. A Raspberry Pi and Arduino cluster opens up many more opportunities for your creativity and designs.
An example is in robotics. The Raspberry Pi board can control certain aspects wireless communications and complex algorithms. It can even provide functionality for a touchscreen interface. The Arduino then provides fast responses and obstacle avoidance.
More about the DFR0327 Shield:
Microcontroller: ATmega32u4
Arduino Leonardo Chip
Arduino Compatible pin mapping
Compatible with all Arduino standard shield and sensors
Arduino Digital I/O: 20
Arduino Analog I/O: 6
Raspberry Pi B+ Connectors: 16 x GPIO, 1 x I2C, 1 x ID_I2C, 1 x SPI, 1 x TTL UART
Voltage: 5V
Dimensions: 86mm x 61mm x 26mm (3.46" x 2.20" x 1.02")
Which Raspberry Pi boards is it compatible with?
Raspberry Pi Model B+
Raspberry Pi 2 Model B
Raspberry Pi 3 Model B
Raspberry Pi 3 Model B+
Microcontroller: ATmega32u4
Arduino Leonardo Chip
Arduino Compatible pin mapping
Compatible with all Arduino standard shield and sensors
Arduino Digital I/O: 20
Arduino Analog I/O: 6
Raspberry Pi B+ Connectors: 16 x GPIO, 1 x I2C, 1 x ID_I2C, 1 x SPI, 1 x TTL UART
Voltage: 5V
Dimensions: 86mm x 61mm x 26mm (3.46" x 2.20" x 1.02")
Which Raspberry Pi boards is it compatible with?
Raspberry Pi Model B+
Raspberry Pi 2 Model B
Raspberry Pi 3 Model B
Raspberry Pi 3 Model B+
Supplied with
Supplied with:
Arduino Expansion Shield for Raspberry Pi B+ x1
20 cm micro USB cable x1
CR1220 button cell x1
Arduino Expansion Shield for Raspberry Pi B+ x1
20 cm micro USB cable x1
CR1220 button cell x1
This item is Lithium cell / battery product (or contains Lithium cells / batteries) which needs to be shipped by sea freight. There will be extension of lead time (around 90 days) for global stock.
規格
Attribute | Value |
|---|---|
| Product Name | Arduino Shield for Raspberry Pi |
| Accessory Category | Interface / Bridge |
| Form Factor | Addon |
