TCND5000 Vishay, SMT Reflective Optical Sensor, Photodiode Output
- RS庫存編號:
- 773-3993
- 製造零件編號:
- TCND5000
- 製造商:
- Vishay
- RS庫存編號:
- 773-3993
- 製造零件編號:
- TCND5000
- 製造商:
- Vishay
法例與合規
- COO (Country of Origin):
- PH
產品詳細資訊

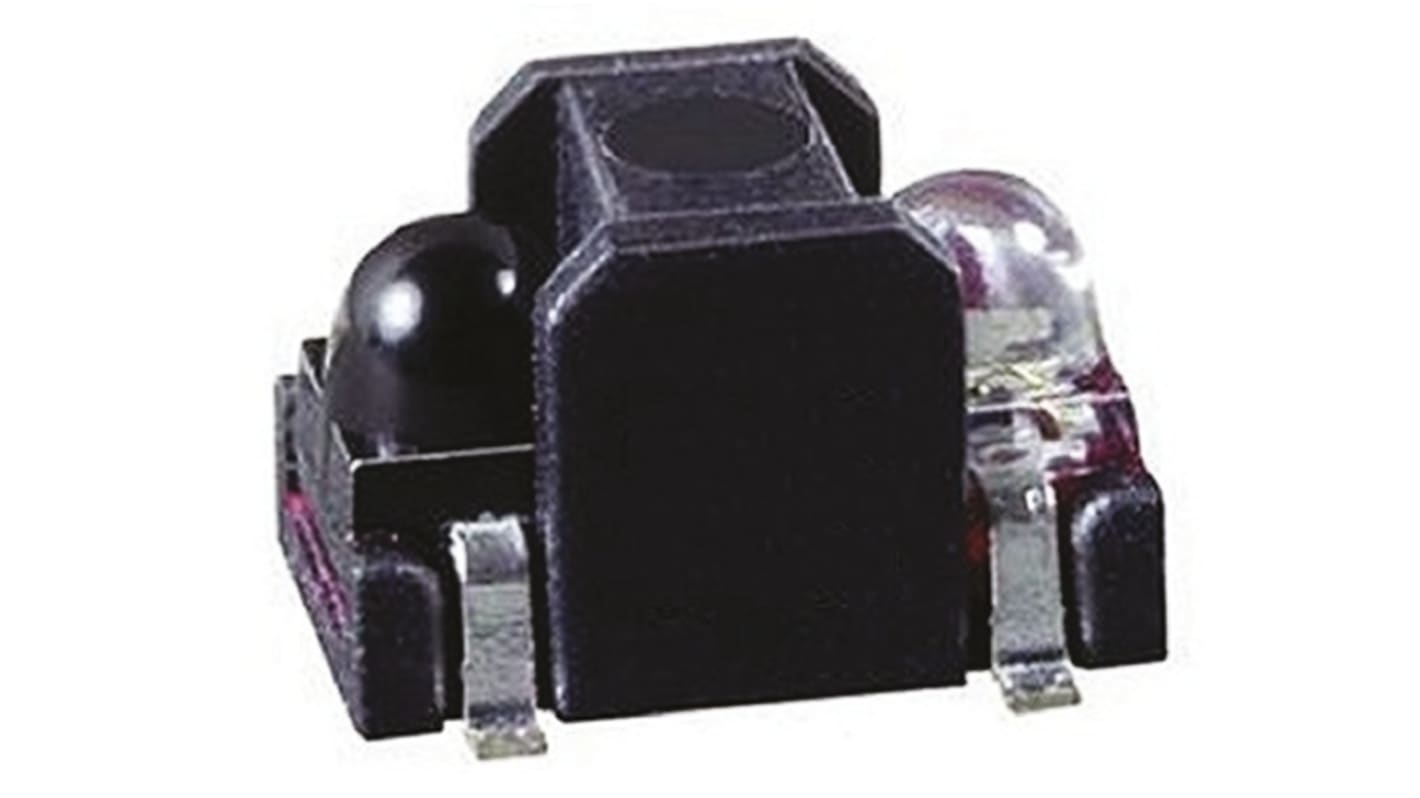

Reflective Optical Sensor, TCND5000
The TCND5000 is a reflective sensor that includes an infrared emitter and pin photodiode in a surface mount package which blocks visible light.
Detector type: PIN Photodiode
Dimensions: 6 x 4.3 x 3.75 mm
Peak operating distance 6mm
Operating range within 20% relative collector current: 2 to 25 mm
Typical output current under test: Ira > 0.11μA
Daylight blocking filter
High linearity
Emitter wavelength 940nm
Dimensions: 6 x 4.3 x 3.75 mm
Peak operating distance 6mm
Operating range within 20% relative collector current: 2 to 25 mm
Typical output current under test: Ira > 0.11μA
Daylight blocking filter
High linearity
Emitter wavelength 940nm
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Slotted Optical Switches, Vishay
規格
Attribute | Value |
|---|---|
| Peak Sensor Distance | 6mm |
| Output Device | Photodiode |
| Typical Rise Time | 800ns |
| Typical Fall Time | 800ns |
| Number of Channels | 1 |
| Number of Pins | 4 |
| Mounting Type | Surface Mount |
| Dimensions | 6 x 3.7 x 3.75mm |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +85°C |
