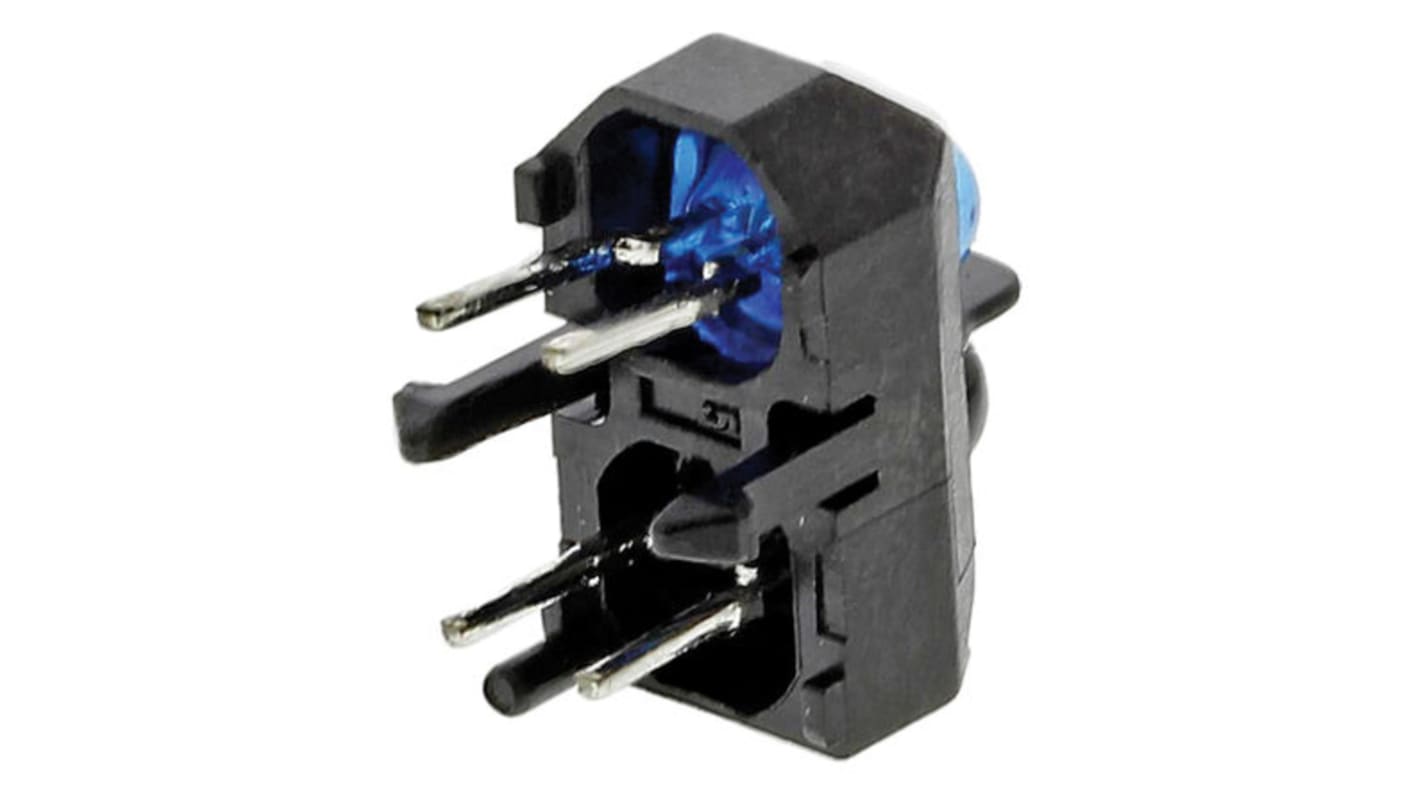

TCRT5000 Vishay, Reflective Optical Sensor
- RS庫存編號:
- 919-0001
- 製造零件編號:
- TCRT5000
- 製造商:
- Vishay
100 現貨庫存，可於3工作日發貨。
已增加
單價 毎管：50 个
HK$8.393
| 單位 | Per unit | Per Tube* |
| 50 - 50 | HK$8.393 | HK$419.65 |
| 100 - 150 | HK$8.184 | HK$409.20 |
| 200 + | HK$8.058 | HK$402.90 |
| * 參考價格 | ||
- RS庫存編號:
- 919-0001
- 製造零件編號:
- TCRT5000
- 製造商:
- Vishay
法例與合規
- COO (Country of Origin):
- PH
產品詳細資訊
Reflective Sensor TCRT5000
The TCRT5000 and TCRT5000L are reflective sensors
which include an infrared emitter and phototransistor in a
leaded package which blocks visible light. The package
includes two mounting clips. TCRT5000L is the long lead
version.
which include an infrared emitter and phototransistor in a
leaded package which blocks visible light. The package
includes two mounting clips. TCRT5000L is the long lead
version.
Features:
• Package type: leaded
• Detector type: phototransistor
• Dimensions (L x W x H in mm): 10.2 x 5.8 x 7
• Peak operating distance: 2.5 mm
• Typical output current under test: IC = 1 mA
• Daylight blocking filter
• Emitter wavelength: 950 nm
• Lead (Pb)-free soldering released
• Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC
Applications:
• Position sensor for shaft encoder
• Detection of reflective material such as paper, IBM cards,
magnetic tapes etc.
• Limit switch for mechanical motions in VCR
• General purpose - wherever the space is limited
• Detection of reflective material such as paper, IBM cards,
magnetic tapes etc.
• Limit switch for mechanical motions in VCR
• General purpose - wherever the space is limited
規格
Attribute | Value |
|---|---|
| Peak Sensor Distance | 2.5mm |
