Omron 4 Pin Relay Socket, 250V ac for use with Various Series

  • RS庫存編號 196-6147
  • 製造零件編號 PYF14A-N
  • 製造商 Omron
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): MY
產品詳細資訊
//media.rs-online.com/t_line/LI196616-02.gif
//media.rs-online.com/t_line/LI803348-03.gif

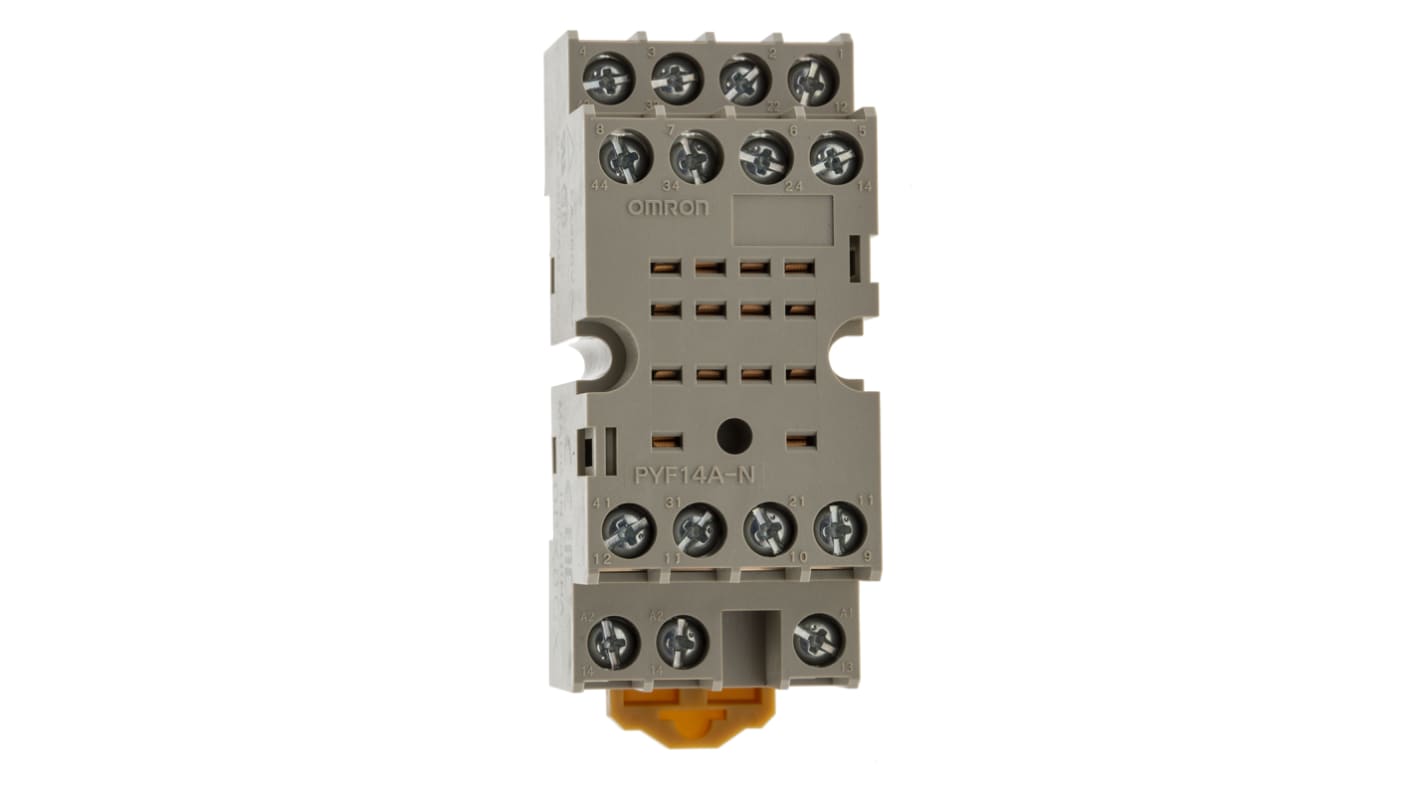

Omron Relay Socket

The Omron 14-pin DIN rail mount socket has screw terminal leads. It has a contact terminal current rating of 5A and voltage rating of 250VAC. The socketed relay is retained and ejected using a simple clip.
This relay socket is used with MY4IN, MY4IN1, MY4IN1-D2, MY4IN-CR, MY4IN-D2, MY4N, MY4N1 and MY4N1-D2 relay series .

Features and Benefits

Dielectric strength is 2.5kVAC
Easy labelling, quick connection with 3 coil terminals
Finger protection according to VDE 106

Certifications

UL508 approved
CSA22.2 approved
VDE approved

Approvals

CE; VDE; RC; LR; CSA

規格
Attribute Value
Voltage 250V ac
For Use With MY4IN, MY4IN-CR, MY4IN-D2, MY4IN1, MY4IN1-D2, MY4N, MY4N-CR, MY4N-D2, MY4N1, MY4N1-D2, MY4ZIN, MY4ZIN-CR, MY4ZIN-D2, MY4ZIN1, MY4ZIN1-D2, MY4ZN, MY4ZN-CR, MY4ZN-D2, MY4ZN1, MY4ZN1-D2
Accessory Type Socket
Number of Contacts 4
28 在1 工作日內發貨 (海外庫存)
1259 在3 工作日內發貨 (海外庫存)
單價 個
HK$ 88.04
(不含稅)
單位
Per unit
1 +
HK$88.04
