Brand-Rex Cat6Plus Series Cat6 24 Port RJ45 LSA Patch Panel STP 1U Black
- RS庫存編號:
- 166-743
- 製造零件編號:
- C6CPNLF240K2M
- 製造商:
- Brand-Rex
- RS庫存編號:
- 166-743
- 製造零件編號:
- C6CPNLF240K2M
- 製造商:
- Brand-Rex
產品概覽和技術數據資料表
法例與合規
不適用
- COO (Country of Origin):
- RO
產品詳細資訊

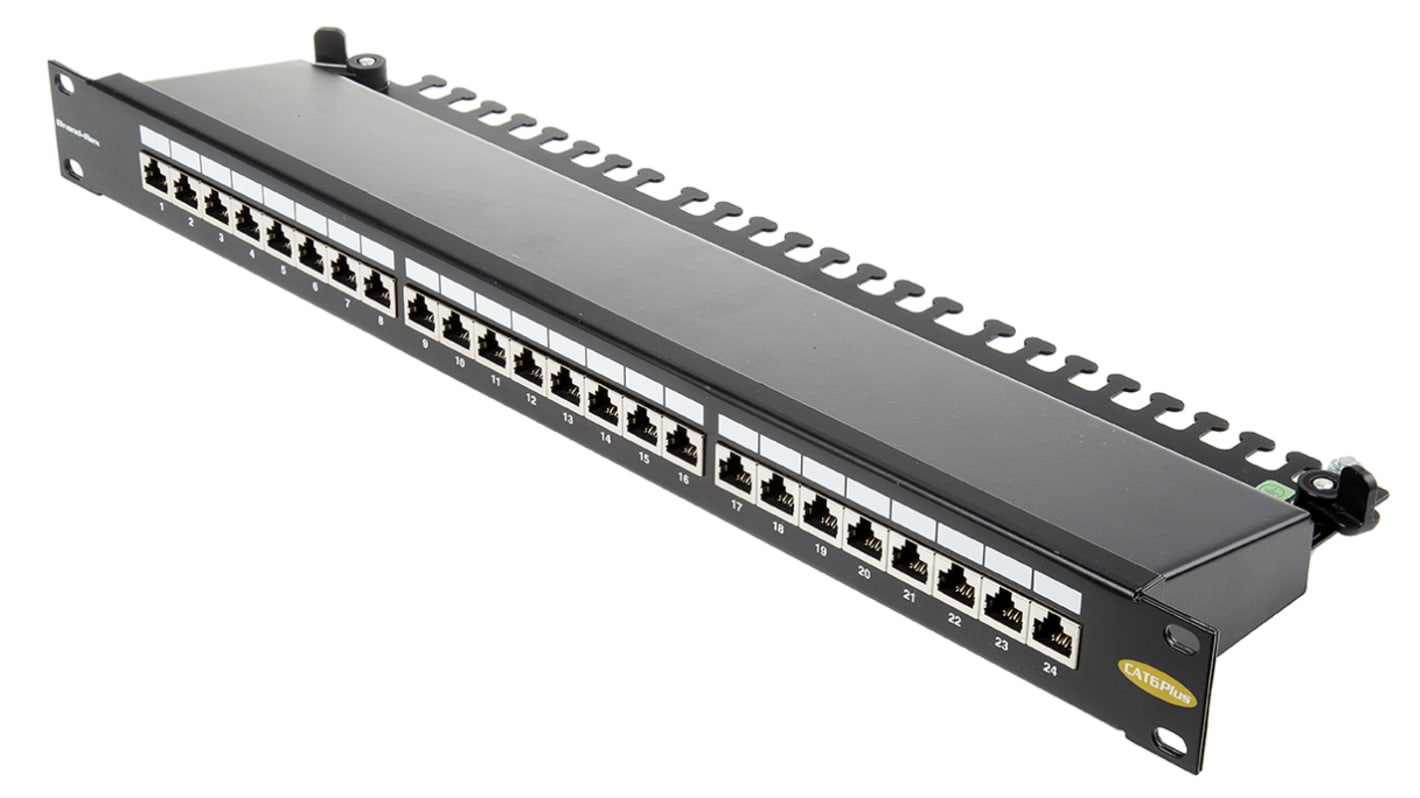

Brand-Rex RJ45 Patch Panel
The Brand-Rex Cat6Plus series LSA 24-port, black RJ45 patch is panel offers true category 6 component performance through a new patented contact pin array design. The modular jacks, used in blocks of 8, are individually shielded to give superior shielding. Each panel is designed with a cable management/strain relief feature built into the rear. All outlets are numerically identified with an additional writable surface for ease of port naming. Additionally, each panel is supplied with cable ties, panel mounting accessories, and short-form installation instructions. The panel comes with a height of 44.1mm, width of 483mm and depth of 132mm.
Features and Benefits
Horizontal PCB 110 punch-down terminations
Individual cable strain reliefs with rear wire management
Outlet style is unkeyed RJ45
STP shielded type
Clear panel markings, can be wired to 568A or 568B
Contact material is phosphor bronze with gold and nickel-plated
Individual cable strain reliefs with rear wire management
Outlet style is unkeyed RJ45
STP shielded type
Clear panel markings, can be wired to 568A or 568B
Contact material is phosphor bronze with gold and nickel-plated
Certifications
UL 94V-0 approved
規格
Attribute | Value |
|---|---|
| LAN Category | Cat6 |
| Number of Ports | 24 |
| Interface Type | RJ45 |
| Shield Type | STP |
| Rack Height | 1U |
| Height | 44.45mm |
| Width | 19in |
| Depth | 132mm |
| Colour | Black |
| Series | Cat6Plus |
