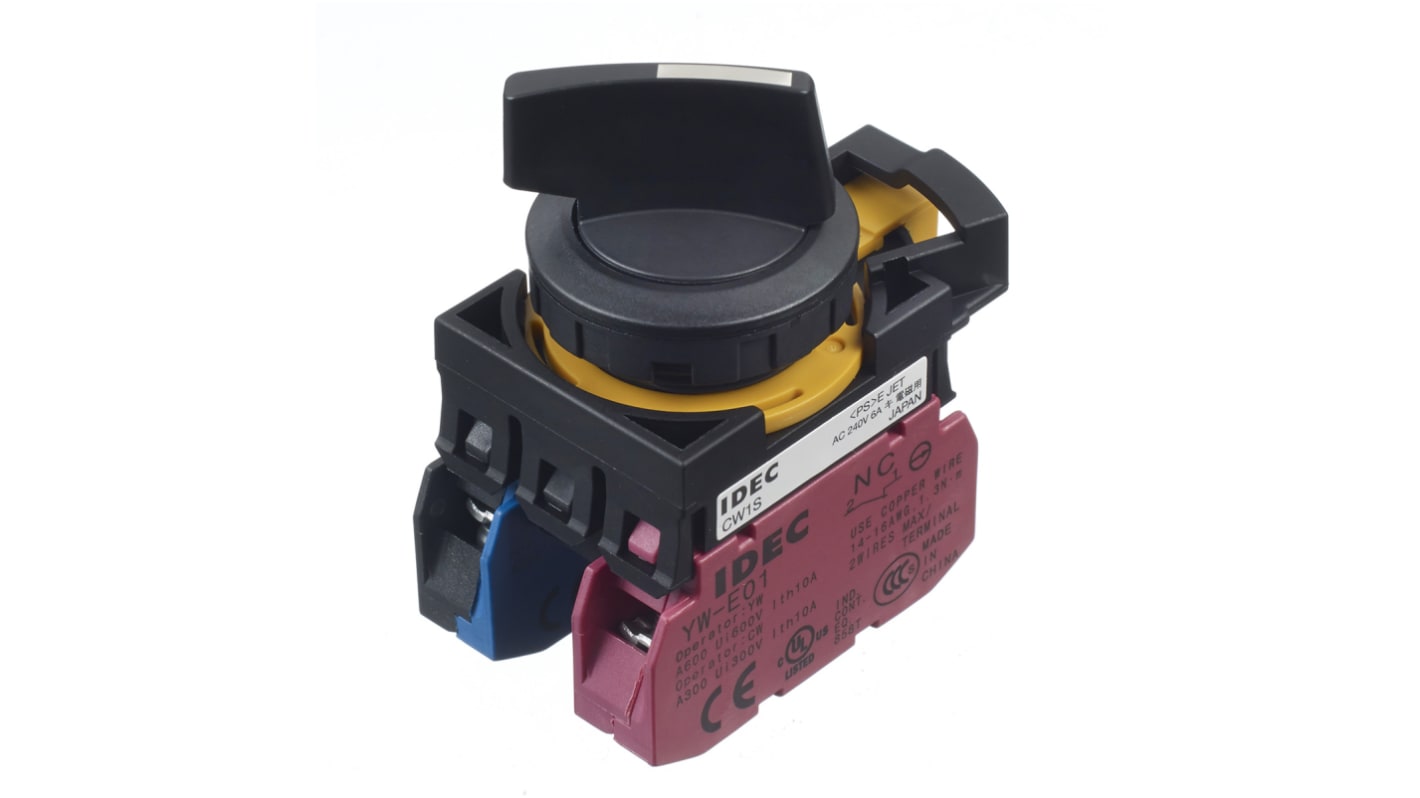

Idec Selector Switch - (SPDT) 22mm Cutout Diameter 2 Positions
- RS庫存編號:
- 168-2723
- 製造零件編號:
- CW1S-2LE11
- 製造商:
- Idec
- RS庫存編號:
- 168-2723
- 製造零件編號:
- CW1S-2LE11
- 製造商:
- Idec
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- JP
產品詳細資訊
The CW series gives a sleek, stylish image to your machines or control panels. The surface is safer with less chance of unexpected operation or accidents by hitting the projections, and also is cleaner with less dust build-up.
Flush silhouette switches
34.5mm depth behind the panel
locking removable contacts
Metallic/Block plastic bezels
light duty switches
34.5mm depth behind the panel
locking removable contacts
Metallic/Block plastic bezels
light duty switches
規格
Attribute | Value |
|---|---|
| Selector Switch Type | Selector Switch Complete Unit |
| Number of Positions | 2 |
| Contact Configuration | SPDT |
| IP Rating | IP67 |
| Angle of Throw | 90° |
| Maximum Current | 10A |
| Series | CW |
| Cutout Diameter | 22mm |
| Terminal Type | Screw |
| Illuminated | No |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 240V |
| Switch Actuation | Maintained |
