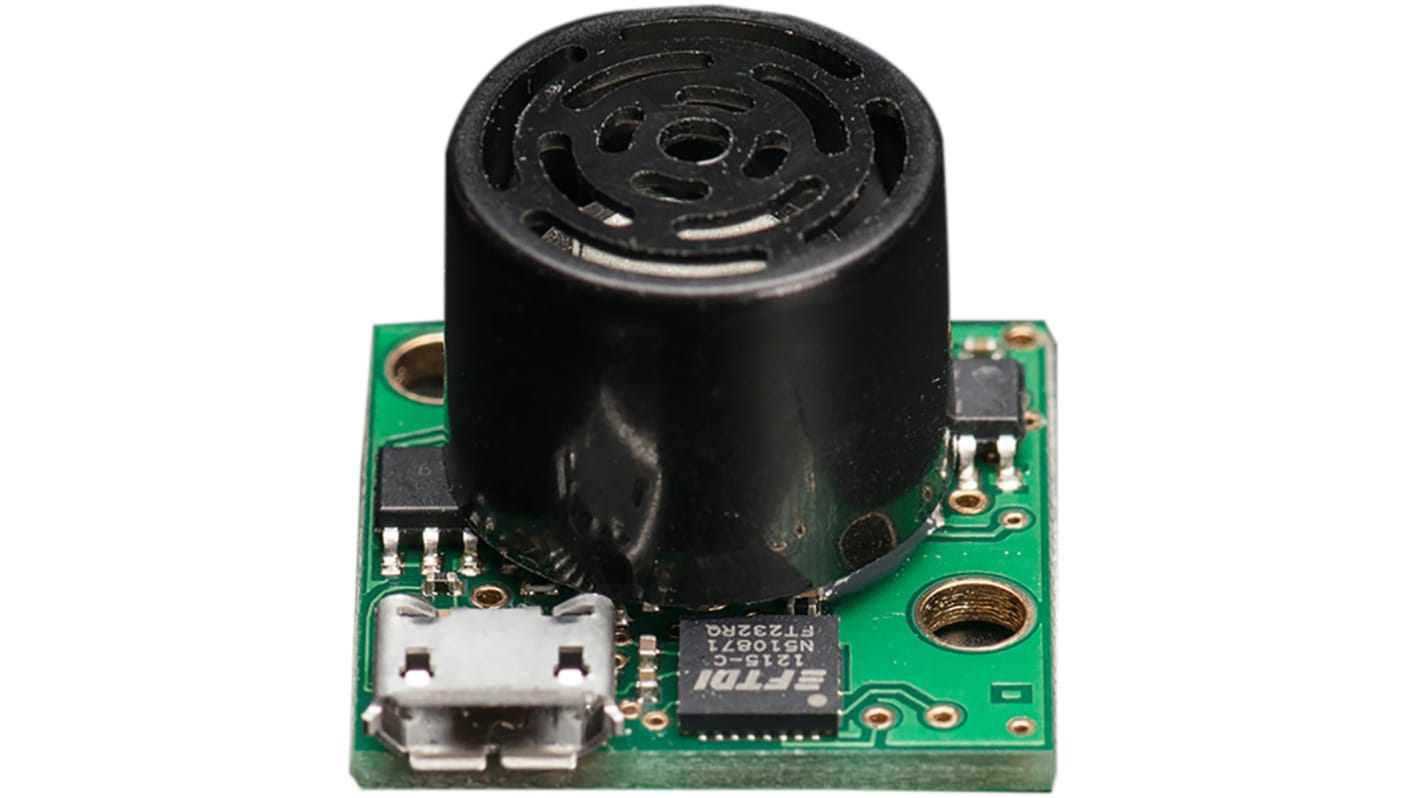

HRUSB-EZ1 MaxBotix Ultrasonic Rangefinder Sensor
The HRUSB-MaxSonar-EZ1™ module is an in-air, ultrasonic non-contact ranging sensor that detects objects within an area. It is not affected by the colour or other visual characteristics of the detected object. Ultrasonic sensors measure the time of flight for ultrasound that has been transmitted to and reflected back from nearby objects. Based on the time of flight, the sensor then outputs a range reading.
Basic Features
Sensor frequency: 42kHz
Distance measuring range: 300 to 5000mm
Proximity sensing range: 1 to 5000mm
Resolution: 1mm
Continuously variable gain for control and side-lobe suppression
Target size compensation
Internal temperature compensation
Free run operation continually measures and outputs range information
Output format: Serial USB on micro-B connector
Multiple sensors can be used in a single system
Designed for protected indoor environments
Powered from USB connection
Dimensions: 21.92 x 22.56 x 15.5mm
Applications: Mobile robot navigation, Collision avoidance, Security, Precision measurement
Sensors
規格
Attribute | Value |
---|---|
Sensor Technology | Ultrasonic Distance Sensor |
Featured Device | USB |
Kit Classification | Module |
Kit Name | Maxbotix |
