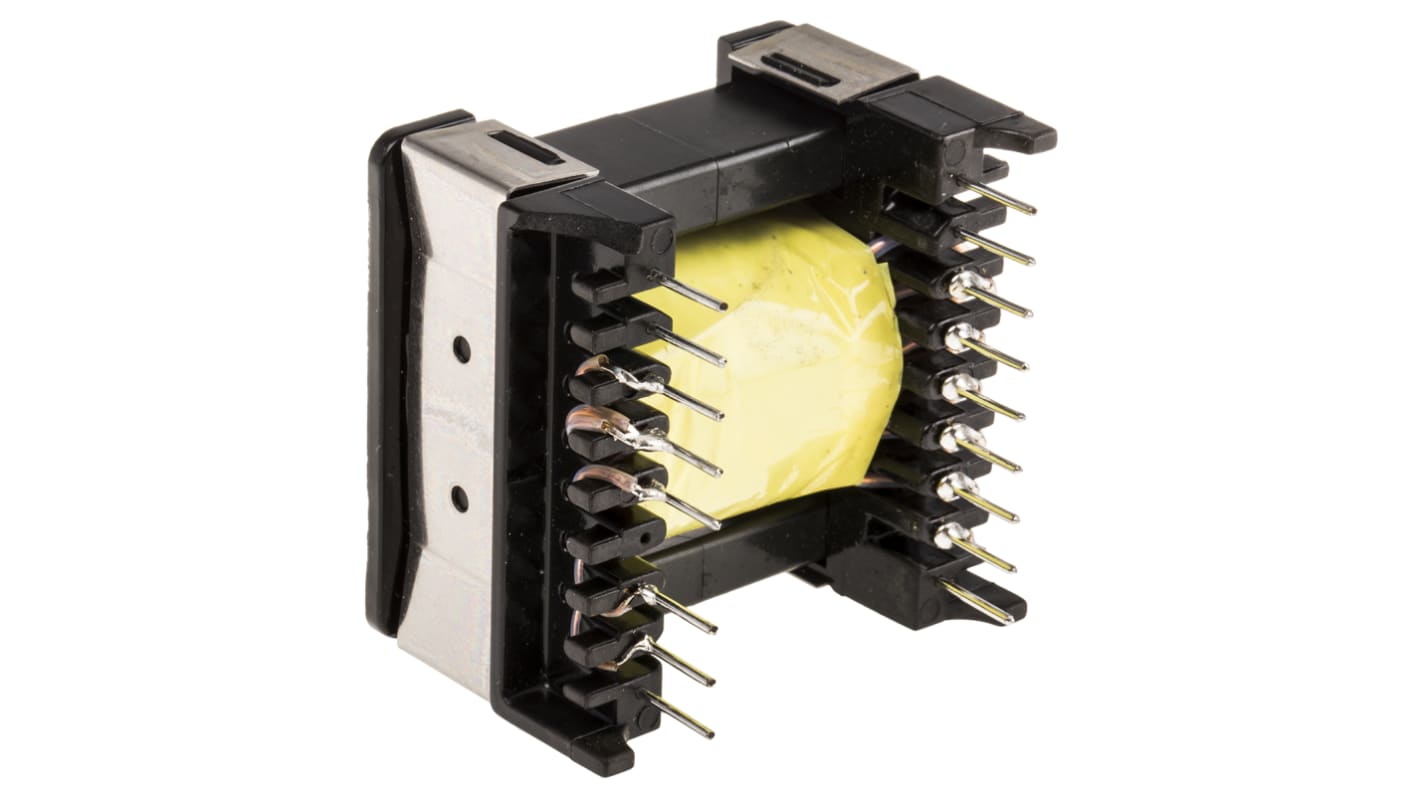

4 Output 120 → 160W Flyback SMPS Transformer, 85 → 265V ac, 10 → 16.5 V ac, 4 → 6.5 V ac,

RS庫存編號:: 418-4089
製造零件編號:: 74070
製造商:: Myrra

4 Output 120 → 160W Flyback SMPS Transformer, 85 → 265V ac, 10 → 16.5 V ac, 4 → 6.5 V ac,

5 現貨庫存，可於3工作日發貨。

HK$162.43

單位	Per unit
1 - 24	HK$162.43
25 - 49	HK$157.54
50 - 99	HK$152.68
100 - 249	HK$149.42
250 +	HK$146.19

RS庫存編號:: 418-4089
製造零件編號:: 74070
製造商:: Myrra

產品概覽和技術數據資料表

FLYBACK TRANSFORMERS ETD 44

法例與合規

COO (Country of Origin):: FR

產品詳細資訊

Switch mode power supply transformers format E25 & ETD, 15 W switch mode

From Myrra the E25 and ETD Series flyback transformers form the core of a switch mode power supply in association with a specialised circuit (VIPer, TOPSwitch, CoolSet, or control circuit + Mosfet.) Constructed with reinforced insulation, the E25 and ETD Series of flyback transformers exclusively use UL94-V0 listed materials.

Features and Benefits:
• Primary / Secondary Insulation ≥ 4000V
• Primary / Auxiliary Insulation ≥ 1500V
• Creepage distance Primary / Secondary ≥ 8mm
• Secondaries can be connected in series or in parallel.
• Materials comply with UL94-V0

Standards

IEC 950, IEC 61558 for reinforced insulation

Open Frame - Laminated

PCB mounting mains transformers with a single 230Va.c. or twin 115Va.c. 50/60Hz primary winding. Independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.

Double section metric bobbin constructionFull varnish impregnation

規格

Attribute	Value
Secondary Voltage Rating	10 → 16.5 V ac, 4 → 6.5 V ac
Primary Voltage Rating	85 → 265V ac
Power Rating	120 → 160W
Number of Outputs	4
Mounting Type	PCB Mount
Application	Flyback
Inductance	300µH
Secondary Current	5 A, 6 A
Length	52mm
Width	51mm
Depth	40.5mm
Dimensions	52 x 51 x 40.5mm
Core Type	Laminated
Minimum Operating Frequency	50Hz
Number of Phases	1
Maximum Operating Frequency	60Hz
Maximum Temperature	+50°C
Construction	CEI335, CEI61558, CEI950
