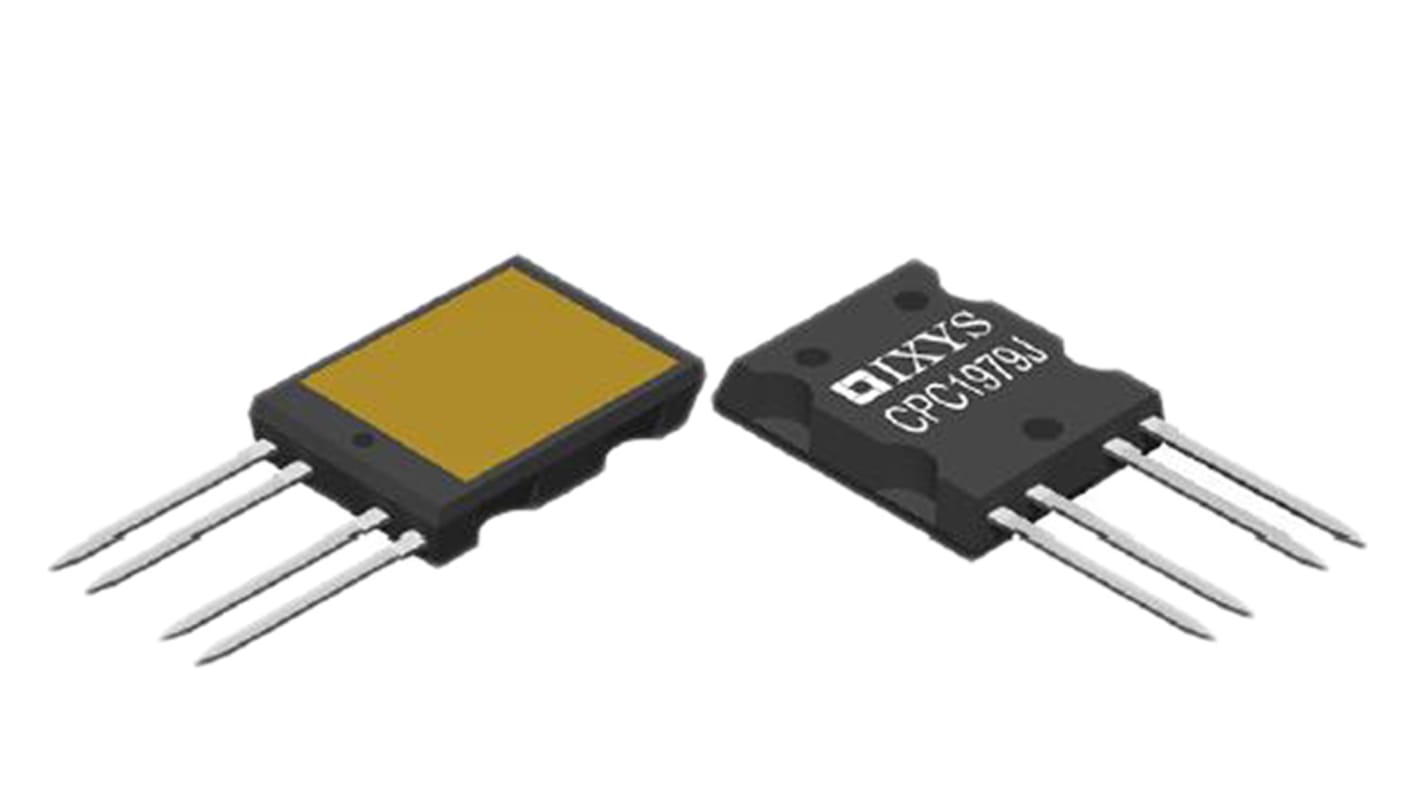

IXYS 14.5 A rms/A dc SPNO Solid State Relay, DC, PCB Mount, MOSFET

  • RS庫存編號 906-1105
  • 製造零件編號 CPC1979J
  • 製造商 IXYS
COO (Country of Origin): PH

1-Form-A OptoMOS Power Relay, CPC

These single pole solid state relays have normally open (1-Form-A) contacts. They feature a unique ISOPLUS-264 package giving the highest possible load current and power ratings. They are able to provide 2500 Vrms of input to output isolation by utilising optically coupled MOSFET technology.

The optically coupled outputs use the well-known OptoMOS architecture and are controlled by a highly efficient infrared LED. With a low on-resistance and a high load current rating these units are suitable for a wide variety of applications.

The unique ISOPLUS-264 package is manufactured with the silicon chip being soft soldered onto the Direct Copper Bond (DCB) substrate rather than the traditional copper lead frame. These DCB ceramics are what makes it possible to provide 2500 Vrms isolation but still offer a very low junction-to-case thermal resistance from only 0.3C per watt.

Potential Applications:
Industrial controls/motor control
Medical equipment: Patient/equipment isolation
Instrumentation: Multiplexers, data acquisition, electronic switching and I/O subsystems
Energy meters
Transportation equipment

2.25 Arms load current with 5°C per watt heat sink
Low on-resistance
Selection of blocking voltages
2500 Vrms input/output isolation
Low thermal resistance
Isolated, low thermal impedance ceramic pad for heat sink applications
Low drive power requirements
Arc-free with no snubbing circuits
No EMI/RFI generation
Machine insertable, wave solderable


UL 508 Certified Component: File E69938

Ixys Solid State Relays, PCB Mount

Attribute Value
Maximum Load Current 14.5 A rms/A dc
Mounting Type PCB Mount
Switching Type DC
Contact Configuration SPNO
Terminal Type PCB Pin
Output Device MOSFET
Package Style ISO Plus-264
Maximum Turn On Time 25 ms
Dimensions 19.914 x 5.029 x 26.162mm
Special Features Arc-Free With No Snubbing Circuits, High Reliability, Low Drive Power Requirement, Machine Insertable, No EMI/RFI Generation, Wave Solderable
Depth 5.03mm
Standards Met UL 508 Approved File No E69938
Length 19.91mm
Off State Leakage Current 1 μA
Height 26.16mm
Operating Temperature Range -40 → +85°C
Capacitance 700pF
Relay Type Power Relay
Number of Poles 1
