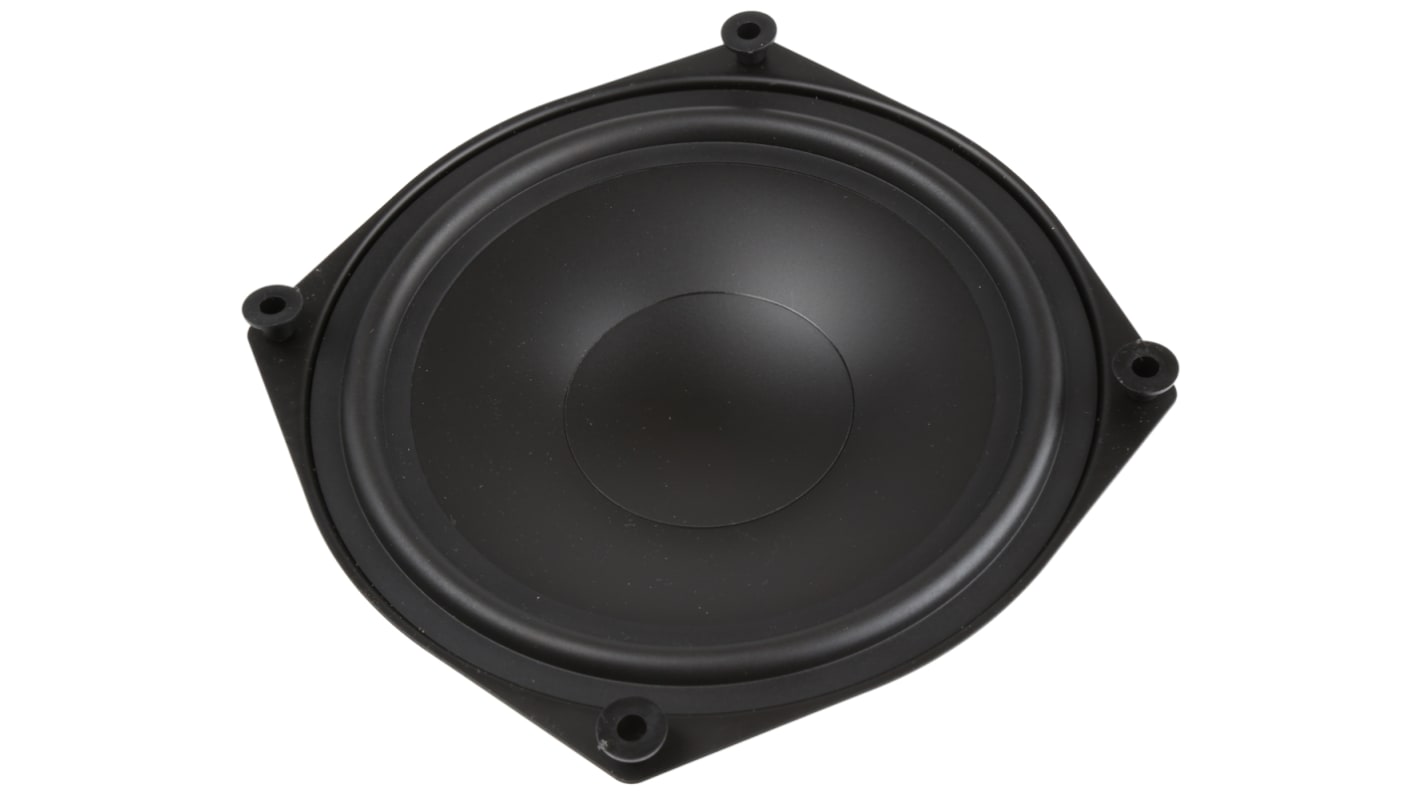

Visaton 207mm dia 80W nom Woofer Speaker Driver, 8Ω, 47 Hz → 7 kHz
- RS庫存編號:
- 431-8541
- 製造零件編號:
- WS 20 E 8 OHM
- 製造商:
- Visaton
- RS庫存編號:
- 431-8541
- 製造零件編號:
- WS 20 E 8 OHM
- 製造商:
- Visaton
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊
20cm/8in 80W HiFi Woofer Speaker
The HiFi woofer speakers are ideal for 2 way applications up to 2000 Hz and also as a low midrange driver for larger 4 way speaker systems. These woofer speakers can be used as replacement drivers for many HiFi speakers.
Polypropylene cone
Rubber roll surround
Extended rear pole plate for long strokes
Suitable for bass or low-midrange application in 3 and 4 way system
Rubber roll surround
Extended rear pole plate for long strokes
Suitable for bass or low-midrange application in 3 and 4 way system
規格
Attribute | Value |
|---|---|
| Speaker Part | Speaker Driver |
| Impedance | 8Ω |
| Nominal Rated Power | 80W |
| Frequency Type | Woofer |
| Diameter | 207mm |
| Driver Shape | Round |
| Speaker Driver Size | 25 cm (10 in) and Under |
| Cone/Dome Size | 20cm |
| Cone/Dome Width | 20cm |
| Frequency Response | 47 Hz → 7 kHz |
| Depth | 85.9mm |
| Maximum Rated Power | 120W |
| Weight | 1.3kg |
| Minimum Frequency Response | 47 Hz |
| Maximum Frequency Response | 7 kHz |
| Cone/Dome Material | PP |
